NO. Order Code Parts Name Description
NO. Order Code Parts Name Description
1 2VP34XX209XXX Motor Set Option 2-9 32ZVPBC80 Terminal board
1-1 2VPBTV020 Motor Base For V-Belt Type 2-10 331SP1150 Screw
1- 2 315BGV080 Belt Cover Top For V-Belt Type 2-11 315MPB840
Transparent
window
1- 3 2VP2PY40XXX Pulley Option 2-12 315MPBA8B Operation panel Yellow series
1- 4 315BGV070
Belt Cover
Base
For V-Belt Type 2-13 2VPCB600
Display Board
Assembly
1- 5 313BGE030 Cover Bracket For V-Belt Type 2-14 331SP1930 Screw
1- 6 2VP34XX209XXX Motor Body Option 2-15 331ST1150 Screw
2-1 331SP1150 Screw 2-16 2VPG1004202 Cement Resistor
2-2 312SMVAH0 Control Panel 2-17 331SP1800 Screw
2-3 2VP12MPB46001 Cover 2-18 2VP12MPB46002 Cover
2-4 331SP1930 Screw 2-19 ---
Control box
nameplate
2-5 --- Main Board 2-20 34BLB3480 Waring sign
2-6 33ZSMV270 Washer 3 2VP11600XXXX Synchronizer Option
2-7 331SP1A30 Screw 4 2VP7M106001
Speed Control
Unit
2-8 --- Cable
(3) i 70M Parts List：
Accessories
3
4
1-1
1-2
1-3
1-6
1-4
1-5

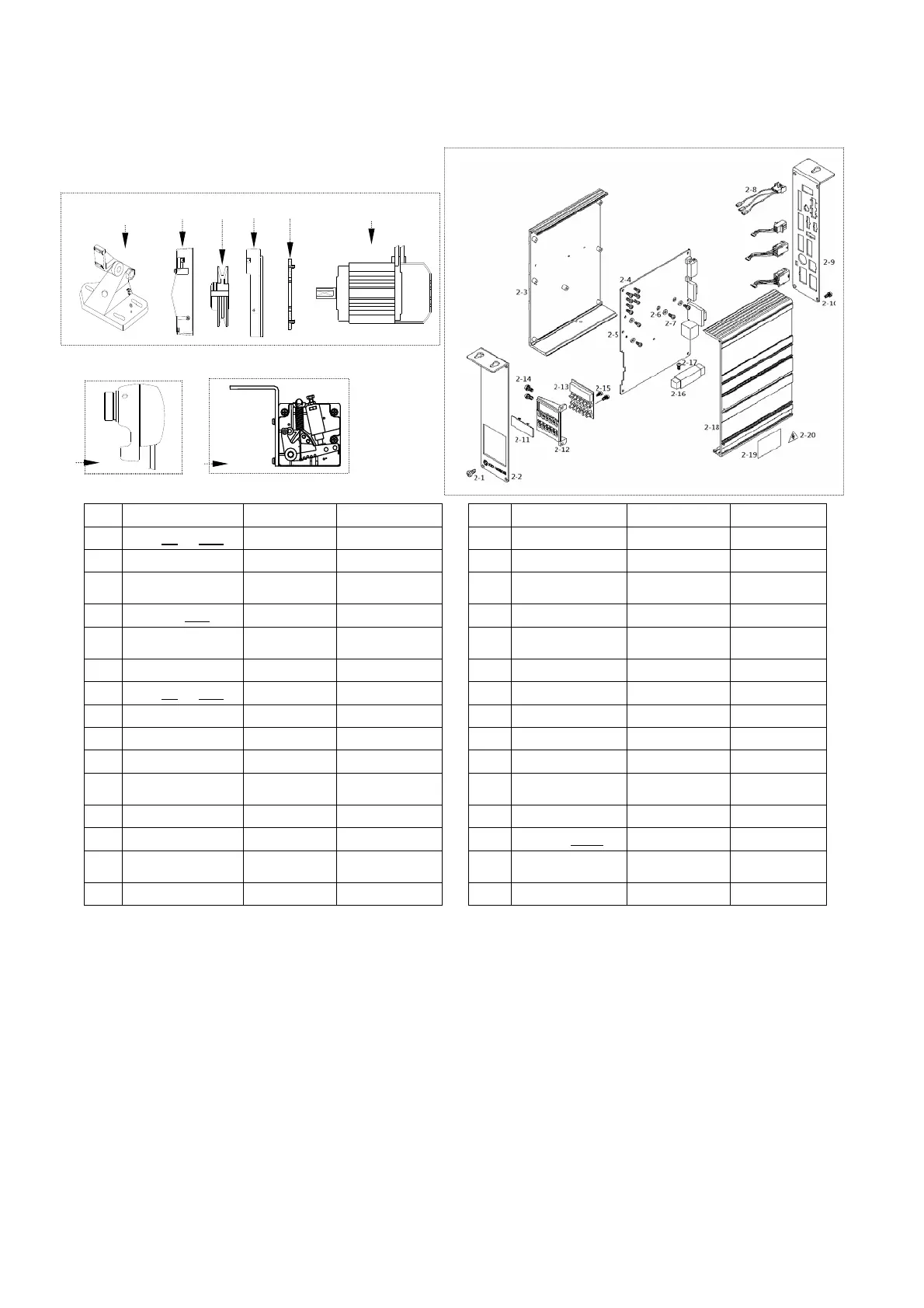

Motor Set Assembly
Control Box Assembly
To Next Page
