06-5
Rules for the mains connection:
• Use only a 3 x 2.5 mm
2
cable with a maximum
length of 25 m, a CEE plug and connector to
connect the camper to an external 230 V
mains. Cable drums must be completely un-
wound, as otherwise there is a great risk that
thecablemayburn(recausedbyinduction,
which results in the cable's heating up).
When obtaining electricity via a cable
drum, this must be completely un
wound, as otherwise induction may
cause the cable to heat up and burn.
• After setting up the connection, the overload
circuit breaker can be turned on again by
pressing the rocker button up. If a residual
current operated device (special installations)
has been installed in your camper, it must be
checked regularly by activating the test but-
ton.
• The 230 V mains connection in the camper
has been designed for a total power
consumption of 2300 W. If additional devices
requiring electricity are connected, such as
water heaters, etc., you must ensure that this
electric power value is not exceeded, taking
other electrical equipment into account that is
in use, e.g. refrigerator, therme, etc.

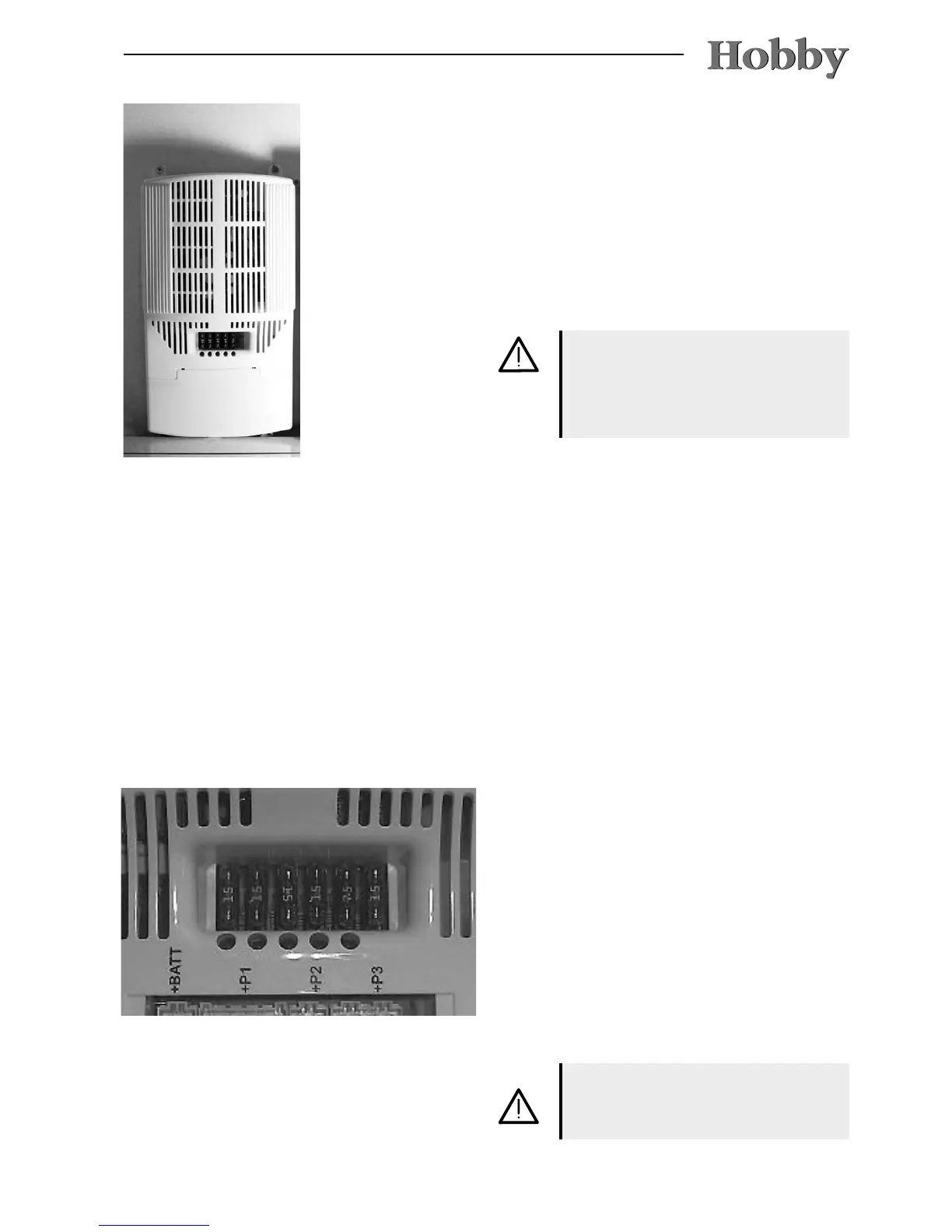

Assignment of fuses 450VA
Current supply
For 450VA current supply, the fuses must be
inserted as shown in the illustration.
Sequence from left to right:
1. Circuit 1 / 15A
2. Circuit 2 / 15A
3. Circuit 3 / 15A
4. Circuit 4 / 15A
5. Circuit 5 / 7.5A for water supply, oven etc.
6. Circuit 6 / 15A for regulator not via cutoff
relay
Fuses that were plugged into the
wrong place must be replugged into
the correct place
