06-11

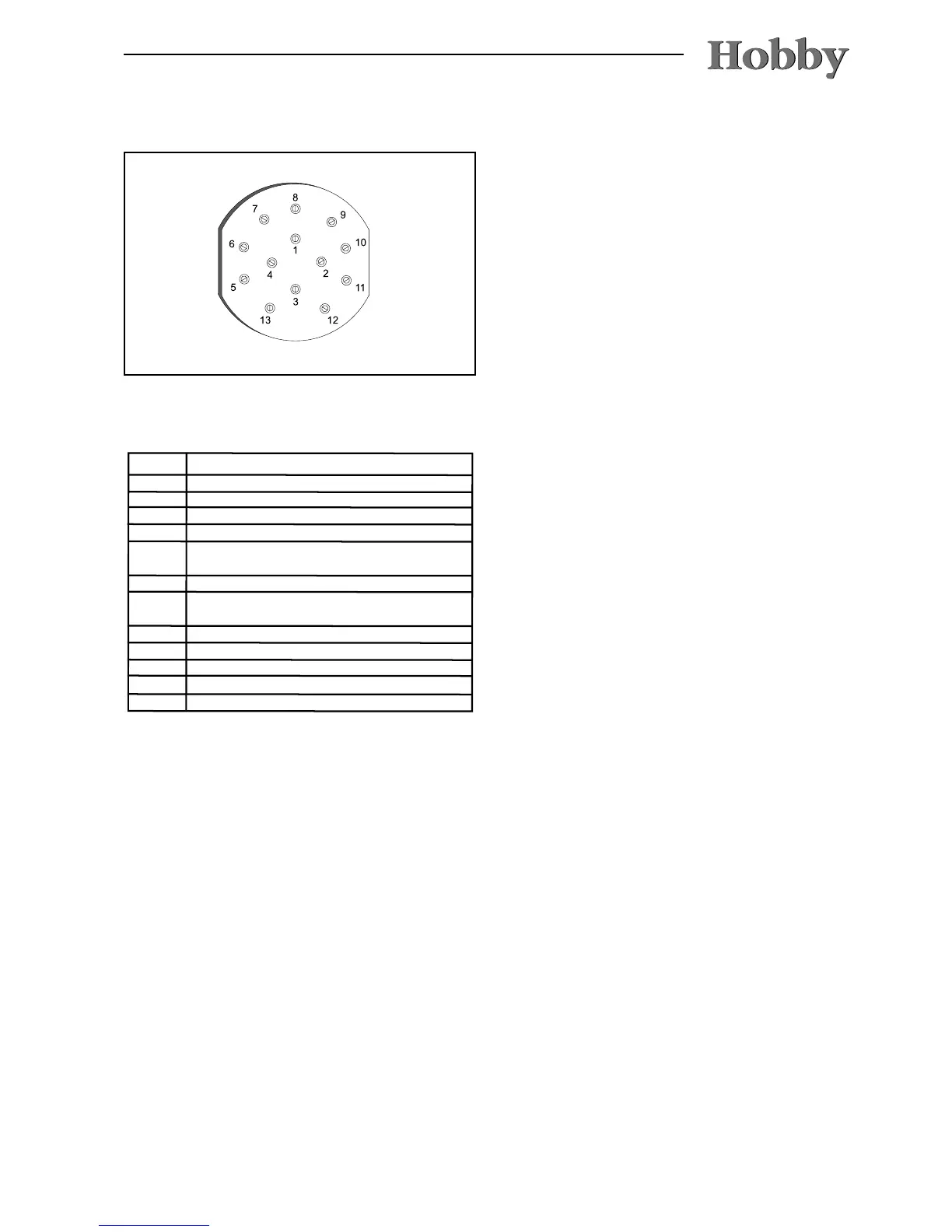

"Jäger" outlet (13-poled)
View from connection side
Contacts of sockets in accor-
dance with DIN 1648-1:97
Contact Circuit
1 direction indicator, left
2 fog lamp
3 mass (for circuits 1 through 8)
4 direction indicator, right
5 right taillight, silhouette light,
limitation lamp, and license-plate illumination
6 brake lights
7 left taillight, silhouette light,
limitation lamp, and license-plate illumination
9 electrical supply (constant positive)
10 electrical supply, ignition switch controlled
11 mass for circuit 10
12 mass for trailer recognition
13 mass for circuit 9
