Hobby 650 UFf Excelsior - Table Adjustments and Folding

06-5
6.4 Tables

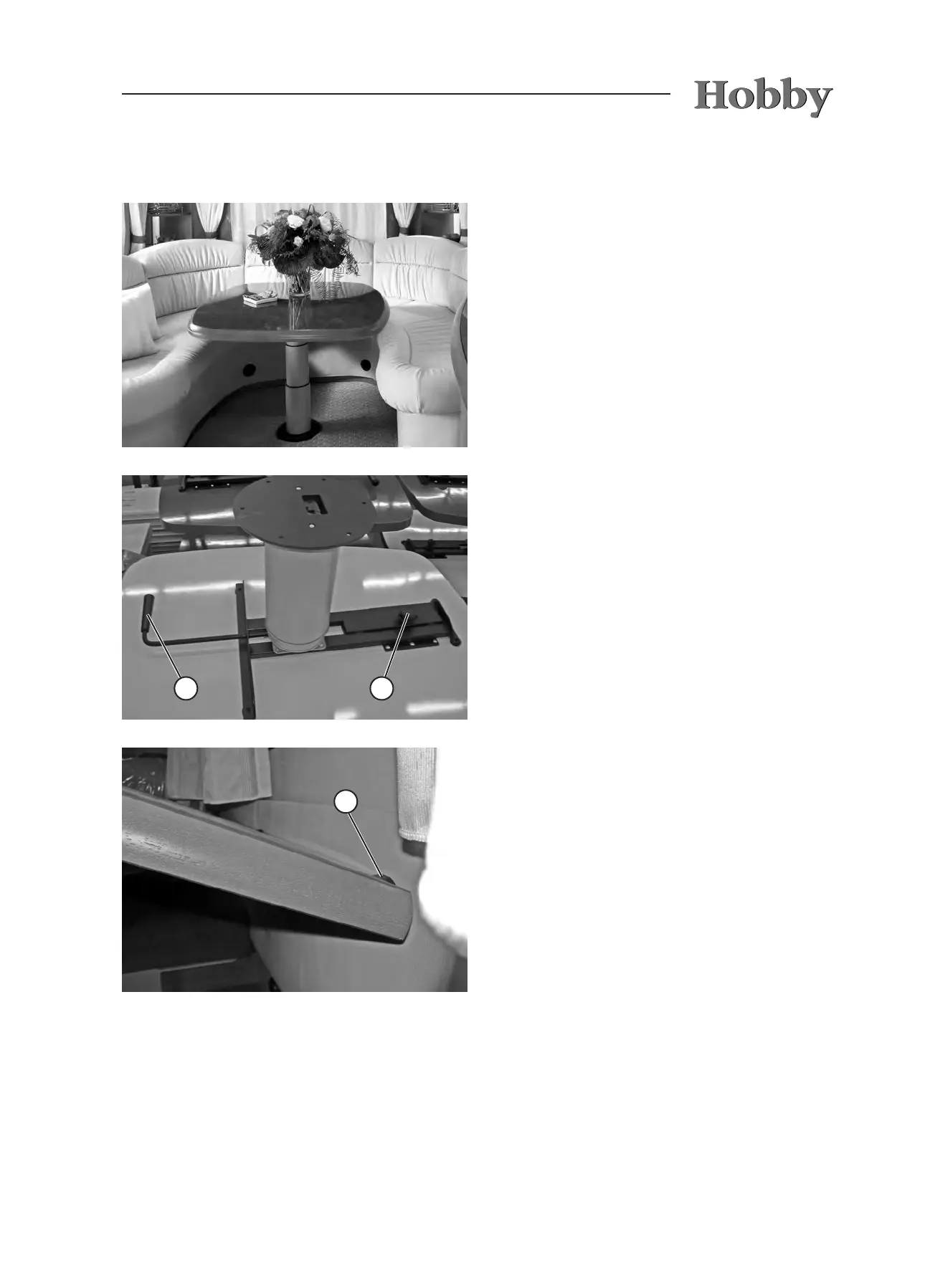

Elevating table
To lower
• Turn the locking bolt
j
180°.
• Press on table top to lower the table.
• Turn the locking bolt
j
back and secure the
table top.
To turn
• Loosen the knurled screw
k
.
• Turn the table in the desired (excentric) direc-
tion.
• To lock the table, tighten the knurled screw
k
.
Hanging table
To lower
• Raise the front end of the table top by approx.
30°.
• Pull down the lower part of the table leg
l
,
fold it over by 90° and lay it alongside.
• Fold out the supporting legs
m
by 90°.
• Pull the table top out of the upper wall bra-
ckets
n
.
• Raise the front end of the table top by approx.
30° and hook it into the lower wall brackets.
• Place the supporting legs at the front edge of
the table top on the oor.
1 2
5
