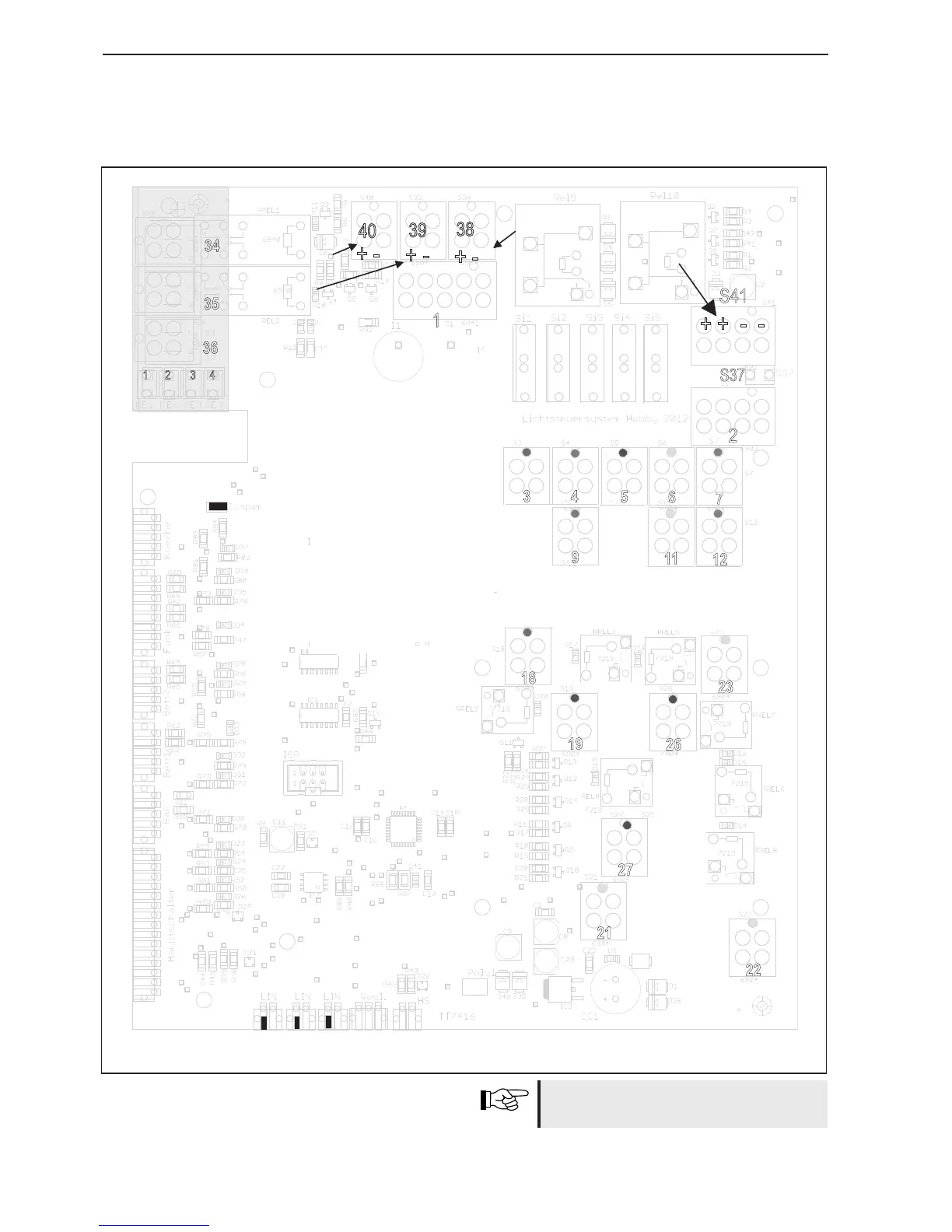

Hobby De Luxe Easy - 7.6 Contact Plan for the Light Control System; De Luxe Easy Model

07-28
Contact assignments may differ slightly
in some models.
S37
34
35
36
1 2 3 4
S41
+ + - -
+ -
38
39
40
1
+ -
+ -
2
3
18
4
5
23
6
11
12
7
21
19
26
27
22
9
De Luxe easy
7.6 Contact plan for the light control system
230V current range
Therme
Floor heating
Input lead
Protective
conductor
S40 10/11 from plus
terminal ignition
circuit
S39 to charge controller,
control RE+-
(only self-sufcient / 12V)
Plus electrical supply
S38 to charge controller,
input 1 charging current
(only self-sufcient / 12V)
9 and 13 from car or
connection to charge controller,
battery connection for self-sufcient / 12V
Fuses 7,5A
Bridge circuit
from S37 to 4
S37 earth connection to PE4
Jumper 1
closed for
self-sufcient / 12 Fz
Connection for external keys
Battery monitoring control
Main panel Bathroom Bed Bed Radio Kitchen
Shower
Ceiling
light
Washstand
right-hand
bed
Kitchen
Outer tent
light
left-hand
bed
Earthing
electrical
supply
