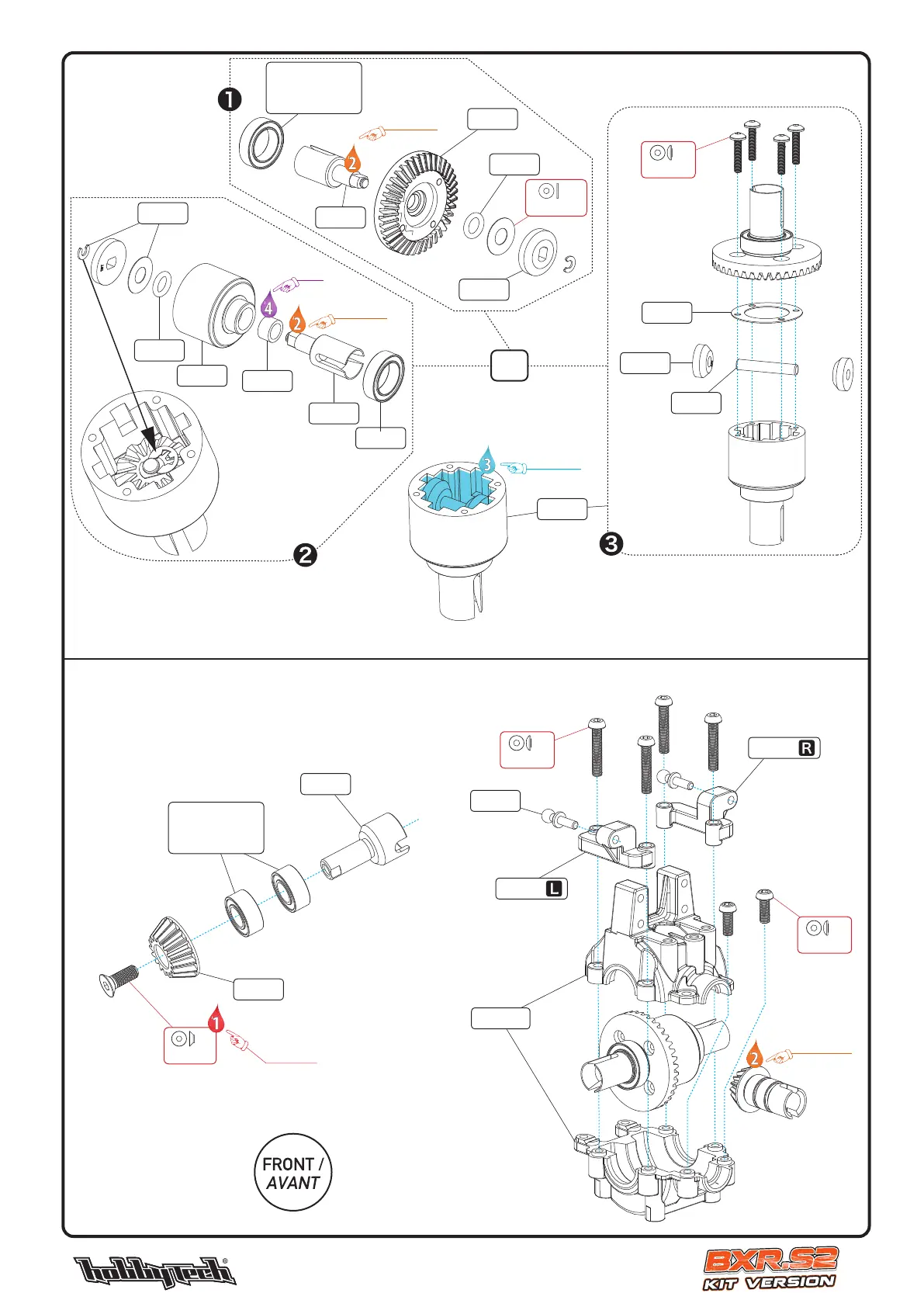

Hobbytech BXR.S2 KIT VERSION - Bag 01: Differential Assembly; Front and Rear Differential Assembly Steps

6
x2
F/H 3x8
x4
R/H 3x16
x2
R/H 3x8
Thread lock
Frein let
Thread lock
Frein let
REV-141
REV-SL047
REV-140
REV-024
Transmission
grease
Graisse de
transmission
Transmission
grease
Graisse de
transmission
REV-072 x2
Ball bearing size :
5x10x4mm
x4
R/H 2x10
Silicon oil
Huile silicone
Silicon oil
Huile silicone
Note: Silicon oil not included.
Recommendation: Front = 7000cSt / Rear = 2000cSt
Huile silicone non fournie.
Précaunisation : Avant = 7000cSt / Arrière = 2000cSt
Fill just over gear
Remplir jusqu’au niveau des pignons
REV-153
REV-145
REV-148
REV-149
REV-144
REV-187
REV-150
REV-147
REV-142
REV-072
Transmission
grease
Graisse de
transmission
Transmission
grease
Graisse de
transmission
x2
5x11,2x0,2
REV-142
REV-143
REV-144
REV-146
REV-072 x2
Ball bearing size :
10x15x4mm
Transmission
grease
Graisse de
transmission
Transmission
grease
Graisse de
transmission
x 2
REV-064
REV-064
Glue
Colle
Glue
Colle
BAG ㆒
FRont & ReaR dIFFeRentIal aSSemBly /
a SSemBlage deS dIFFéRentIelS avant et aRRIèRe
BAG ㆓
FRont & ReaR geaR BoXeS aSSemBly /
a SSemBlage deS celluleS avant et aRRIèRe
