ELECTRIC BARBECUE 2 IN 1
Assembly - Barbecue Stand

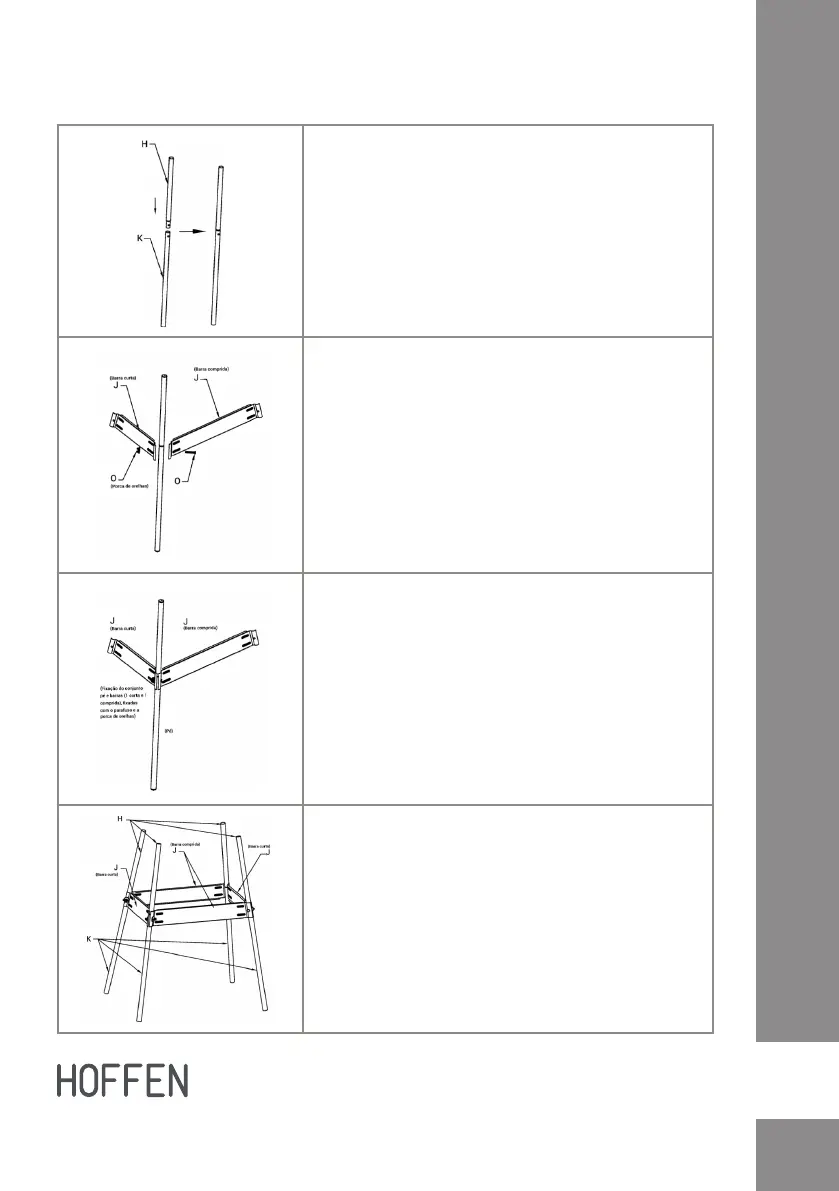

Start by assembling the feet of the stand by
tting the upper tubes of the feet (H) to the
lower tubes (K) as shown in the gure beside.
Choose one of the feet and proceed with the
assembly of the grid support (J). Please note
2 important details:
- There are 2 types of support bars (J): the
smallest are for the sides and the largest are
for the front and rear of the support.
- The shortest part of the support bars (J)
must face upwards as shown in the gure on
the side.
Then you must t the screw (O) through the
hole in the different parts, joining the 2 bars of
the support to the foot and screwing the wing
nut as shown in the gure on the side.
Repeat the procedure for all feet until the
stand is properly assembled as shown in the
gure on the side.
