bowl is installed correctly.
Caution! The device will not start working if the bowl is installed incorrectly.
3. Place the measuring cup in the bowl lid opening.
4. Place the measuring cup with the open surface up and twist it clockwise.
5. The measuring cup should now be locked. Removing it by pulling it up should
be impossible.
6. To remove the measuring cup, twist it counter-clockwise and take it out.
Caution! Inside the bowl, there is a scale with the maximum level marked.
The span between the levels is 500 ml.
Caution! If the assembly is incorrect, the device will display the E2 or E3 error,
see 7.9 Problems and errors.

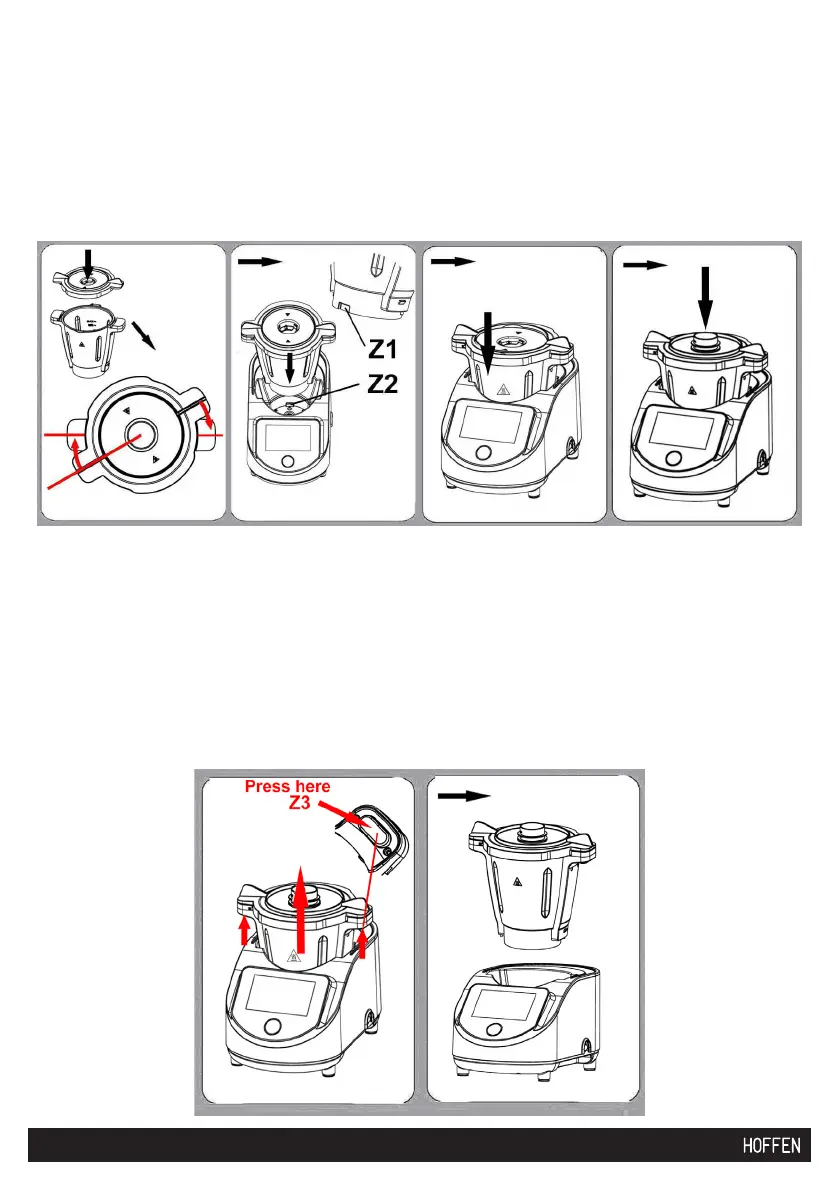

d) Blending container disassembly
1. Grab both bowl handles, press the bowl lock release buttons (on both handles)
marked as Z3 in the gure below.
2. Remove the bowl.
