Hog Slat GrowerSelect HS593 - Page 2

Grow-Flex™ Feed System
2
Hog Slat Inc. Newton Grove, NC USA June 2017

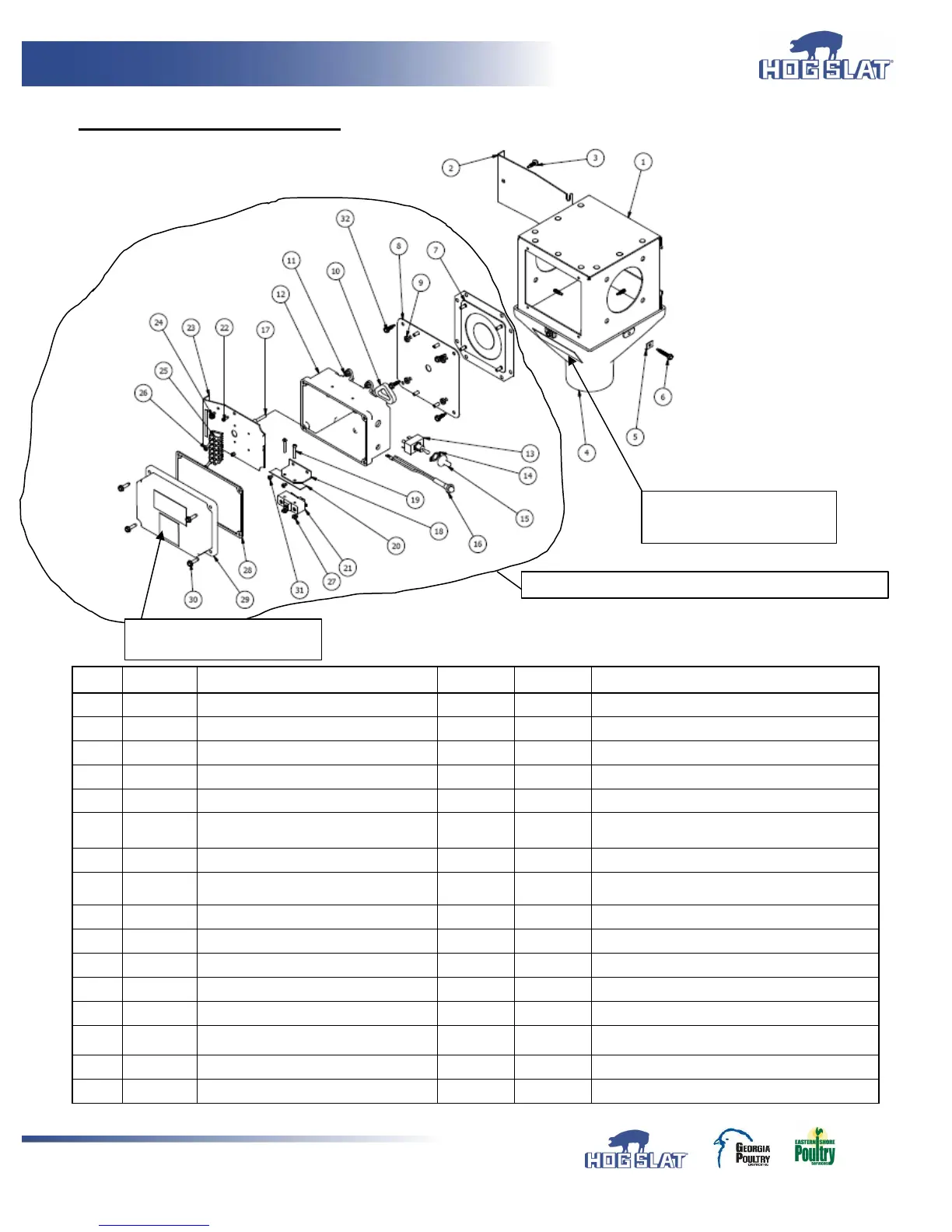

HS593 Feed Line Control Unit
Safety Decal HSLABEL-035
“Warning Rotating Auger”
HS589 - Switch Assembly Control Unit 230V-Single Phase
Safety Decal HSLABEL-008
“W warning Shock Hazard”
REF #
PART #
DESCRIPTION
REF #
PART #
DESCRIPTION
1
HS590-1
ASSEMBLY HOPPER
17
SW ITCH ACTUATOR PIN
2
HS590-11
ACCESS GATE
18
SW ITCH MOUNT BRACKET
3
#10-16 X 3/4" HEX SELF DRILLING SCREW
19
#6-32 X 1", PHILLIPS PAN HEAD MACHINE SCREW
4
HS591
DROP CONE - CLARIFIED PLASTIC
20
INSULATING FILM
5
CONTROL UNIT CLAMP
21
EL1052M
SNAP ACTION 20A @ 250V
6
#10-16 X 1" HEX W ASHER SELF DRILLING
SCREW
22
#6-20 X 3/8" TAPPING SCREW TYPE BT
7
HS582
DIAPHRAGM ASSEMBLY
23
SW ITCH ASSEMBLY COMPONENT MOUNT PLATE
8
SW ITCH ASSEMBLY MOUNT PLATE
24
#10 X 3/8" THREAD FORMING - GROUNDING
SCREW
9
#10-32 HEX MACHINE NUT
25
EL1072
6 POSIT ION 18-10 AW G TERMINAL STRIP
10
HS529-45
PLUNGER SEAL
26
#6-32 X 1" PHILLIPS PAN HEAD TAPPING SCREW
11
#10-32 NYLON LOCK NUT
27
#6-32 HEX MACHINE NUT
12
SW ITCH ASSEMBLY ENCLOSURE
28
HS589-3
GASKET
13
EL1011
TOGGLE SW ITCH, DPST, 20A @ 250V, 2HP
29
SW ITCH HOUSING COVER
14
LEGEND PLATE, ON/OFF
30
SHOULDER SCREW #10-16 X1.375” HEX W ASHER
HEAD
15
EL1083
TOGGLE SW ITCH BOOT COVER
31
#6-32 X 1/4" SCREW
16
EL1079
INDICATOR LAMP, RED, 250V
32
#10-16 X 3/4" HEX W ASHER SELF DRILLING SCREW
