Congratulations and Thank-you for your purchase of Hogtunes SG RM Grill
for “Rushmore” platform bikes! If you have any questions or concerns,
we are here to help. Email info@hogtunes.com or call us during regular
business hours (EST) at 705-719-6361. If you still need help, then please
consider a professional installation by your dealer.
Grill Installation Instructions:
Step #1: Make sure your ignition switch stays in the “OFF” position.
Remove your outer fairing/headlamp assembly and set aside. Refer to a
service manual if you need help with this. NOTE: Placing a towel on the
front fender can help prevent scratches or “dings” from dropped tools
or fasteners, etc.
Step#2: Speaker Cabinet Removal: On the brake side speaker cabinet,
carefully remove the cable going into the power port/cigarette lighter
assembly. If your bike has the CB module (mounted “sideways” on the
clutch side cabinet) undo the antenna cable and main harness. The CB
Module will stay attached to the clutch side cabinet when removed. Undo
the speaker wire plugs going into each cabinet (pink/pink black wires).
NOTE: We STRONGLY suggest completing the grill swap on one side and
then moving to other side! Figure 1.1 and 1.2 (below) have arrows that
point to the factory fasteners that will be removed to allow the cabinets
to come out of the bike. Although the Brake Side is shown below,
fastener locations are common for both brake and clutch side cabinets.

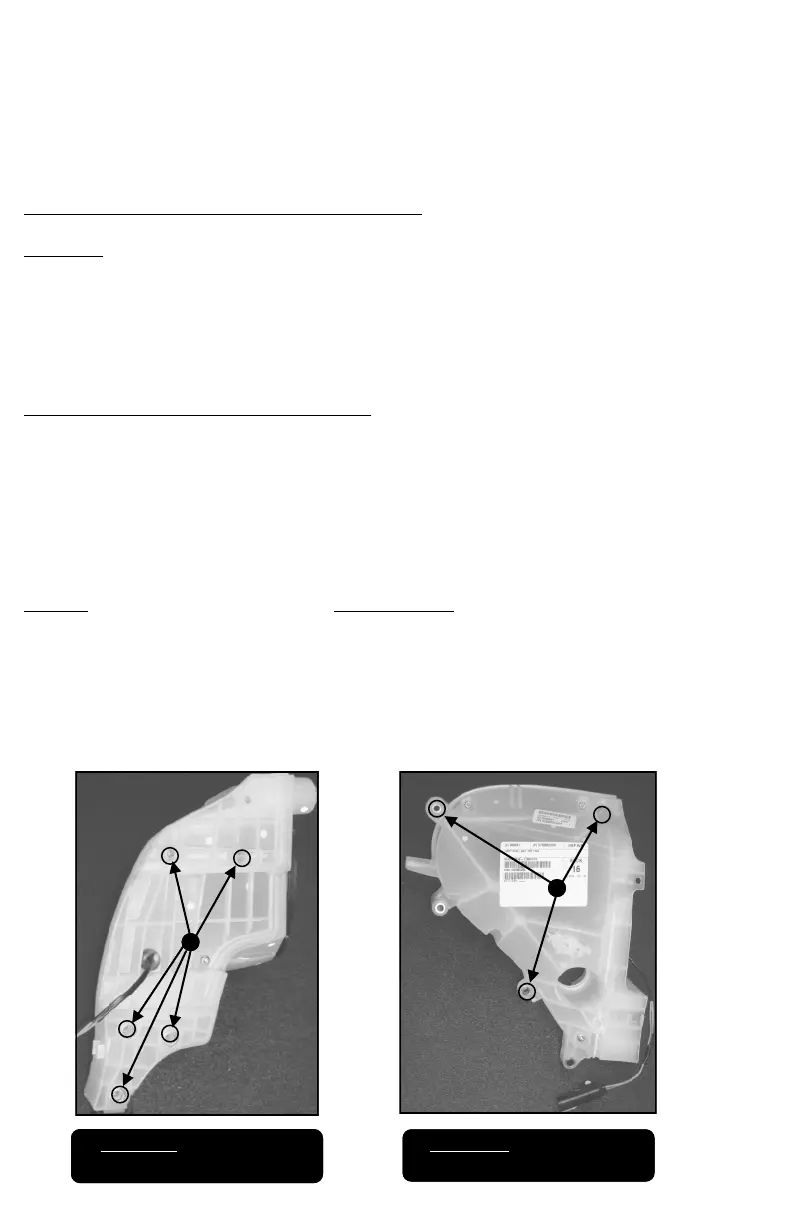

Figure 1.1 Side View of
Brake side cabinet
Figure 1.2 Back View of
Brake side cabinet
To Next Page
