Page -- 28 HI-3604 Manual

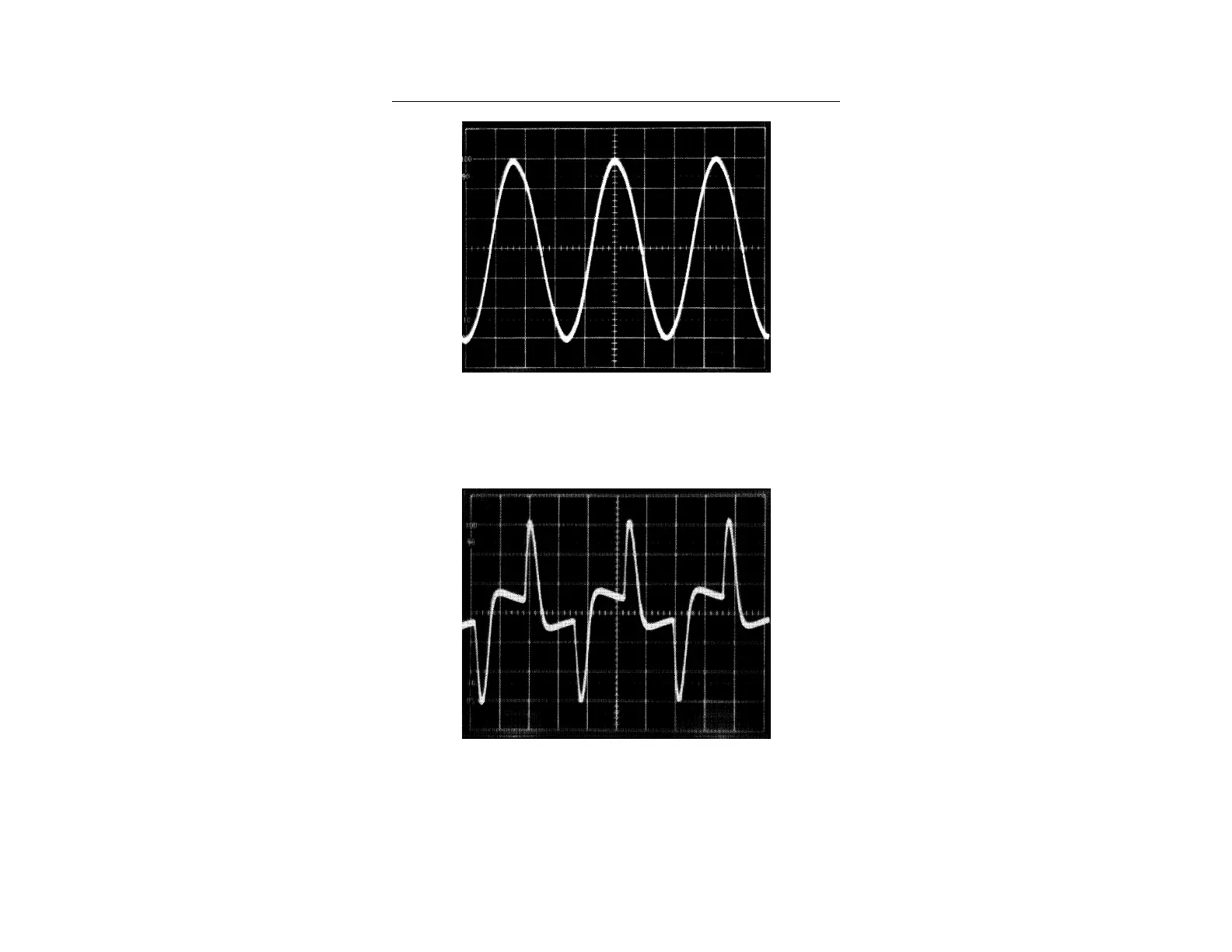

Figure 5-3

Waveform of magnetic field (sine wave)

produced by an incandescent light bulb obtained

by use of an oscilloscope connected to the

analog output jack on the HI-3604.

Figure 5-4

Waveform of magnetic field produced by an

incandescent light bulb operated by a light

dimmer at half brilliance obtained by use of an

oscilloscope connected to the analog output jack

on the HI-3604.
