HI-3604 Manual Page -- 29

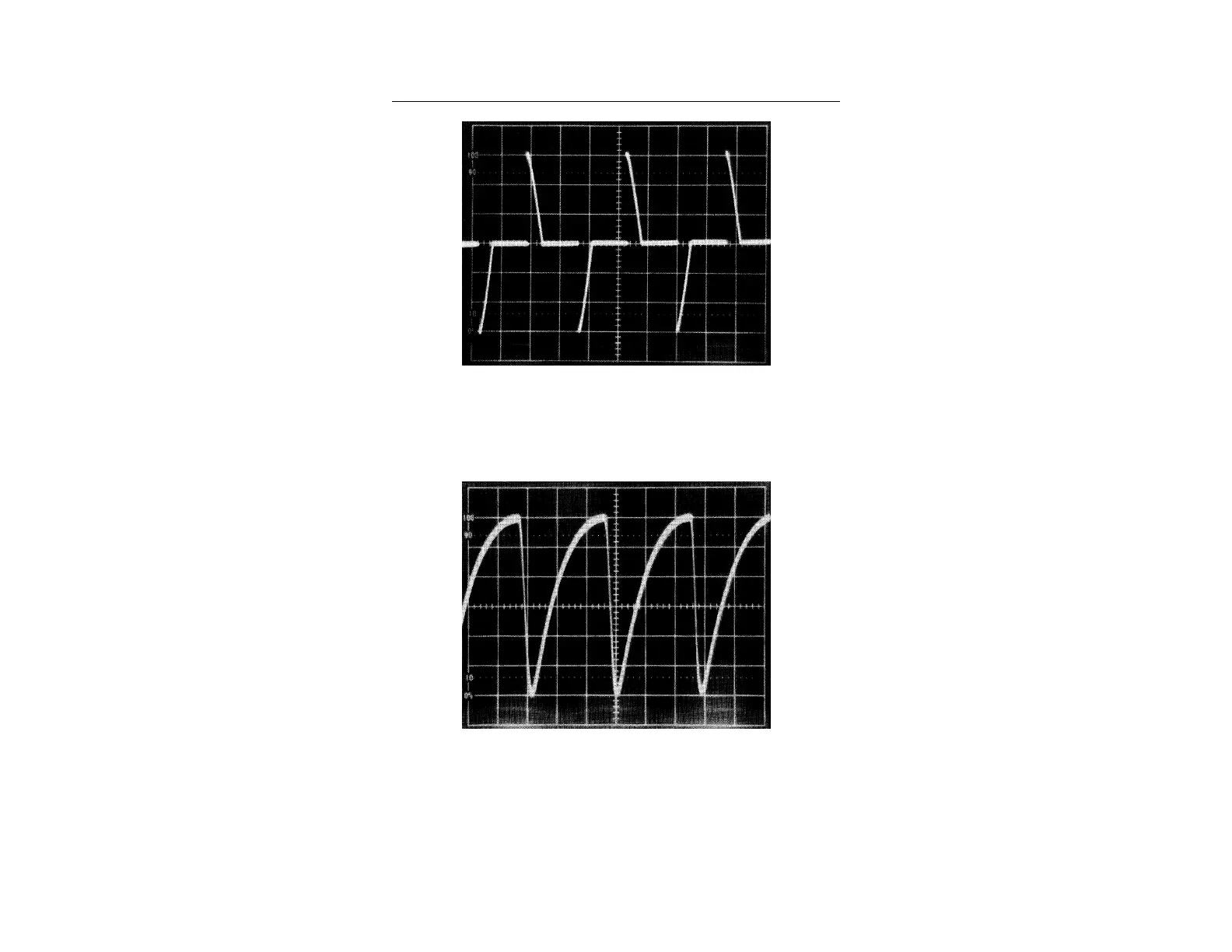

Figure 5-5

Waveform of current supplied by a light dimmer.

Figure 5-6

Waveform of magnetic field produced by the

vertical deflection circuit in a VDT obtained by

monitoring the output from the analog output

jack with an oscilloscope.
