Holley VR2 - Configuring Duty Cycle via EFI Triggers

8

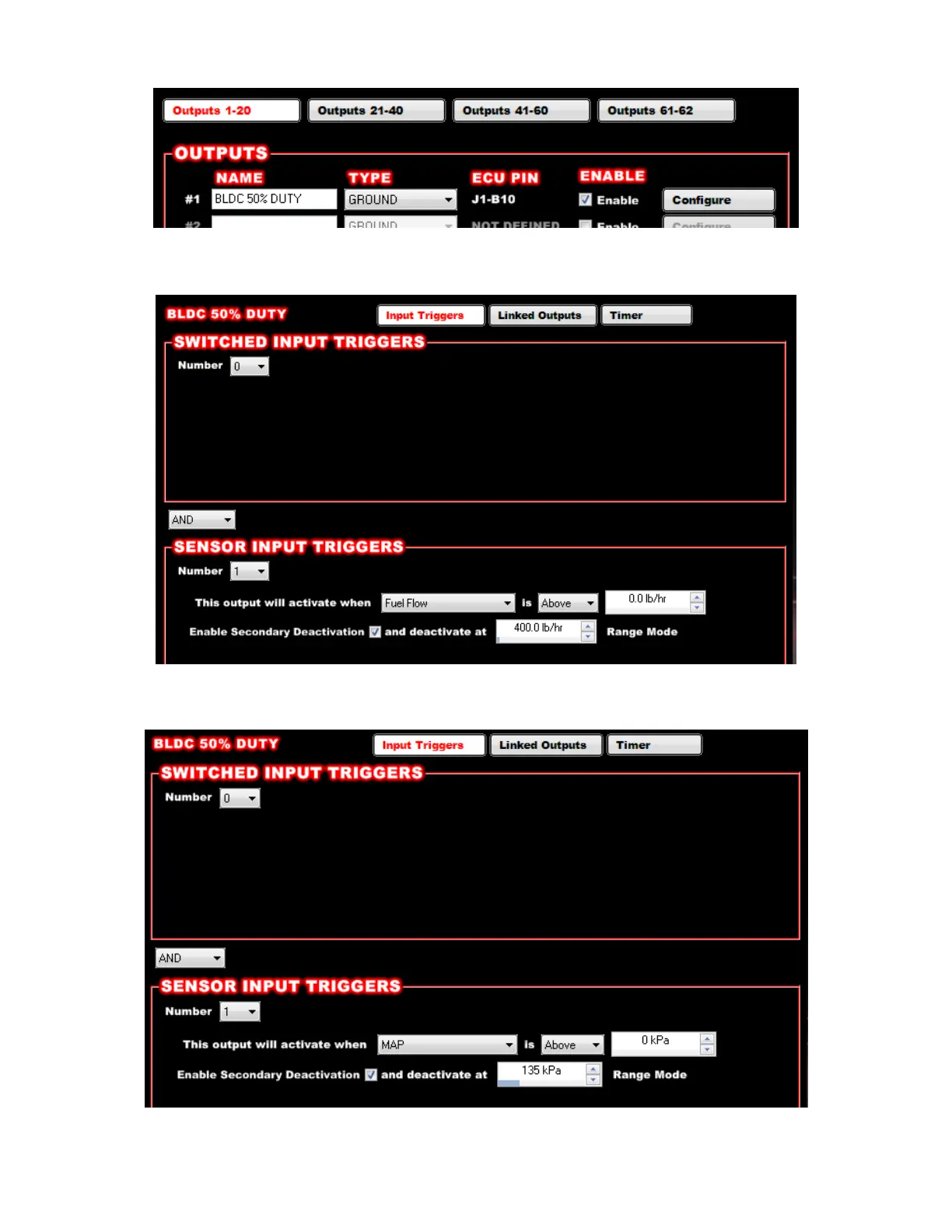

Configure any available output (#1 in this example) and name it BLDC 50% DUTY as shown below, then select Configure.
In this example configuration, the pump would run at 50% duty cycle when fuel flow is between 0 and 400 lb/hr. Above 400 lb/hr the
ground output would be deactivated and the pump would run at 100%.
In this example configuration, the pump would run at 50% duty cycle when MAP is between 0 and 135 kPa (5 psi boost). Above 135
kPa the ground output would be deactivated and the pump would run at 100%.
