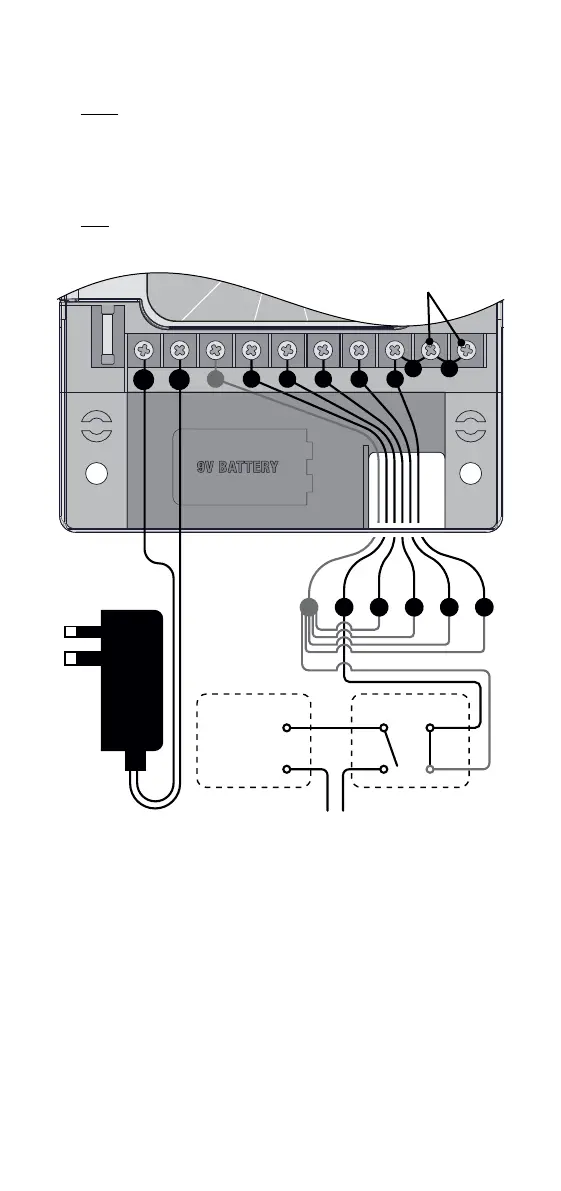

Pump Connection
Do not attempt to drive a pump starter directly from the controller
L Pump start is provided by connecting one side of the coil from a
suitable relay to the MASTER VALVE/PUMP START (P) output of
the controller and the other side to the controller common
For systems supplied with water from a pump, unused stations
must be connected back to the last used station to prevent
running against a closed head if run times are incorrectly set
If your water is being supplied directly from the main water supply, it is
recommended to install an approved MASTER VALVE. This is connected
to the COMMON (C) and PUMP/MASTER VALVE (P) terminals
RUN
OFF
RUN A
START
SET CLOCK
SET
START
TIME
SET
DAY
15
6
24
3
SET WATERING
DURATION PER
STATION
24V AC
POWER
PACK
C P
AC AC
1 2 3 4
5 6
1
2 4
3
PC
PUMP
MOTOR
MAGNETIC
STARTER
24V AC RELAY
POWER SUPPLY
CONNECT UNUSED
STATIONS AS SHOWN
