PAGE 11
OPERATOR'S MANUAL
HOLMAN CONVEYOR TOASTERS
MODELS T710(H, TW, TX) T714(H, TW, TX) S710(H) S714(H) B710H

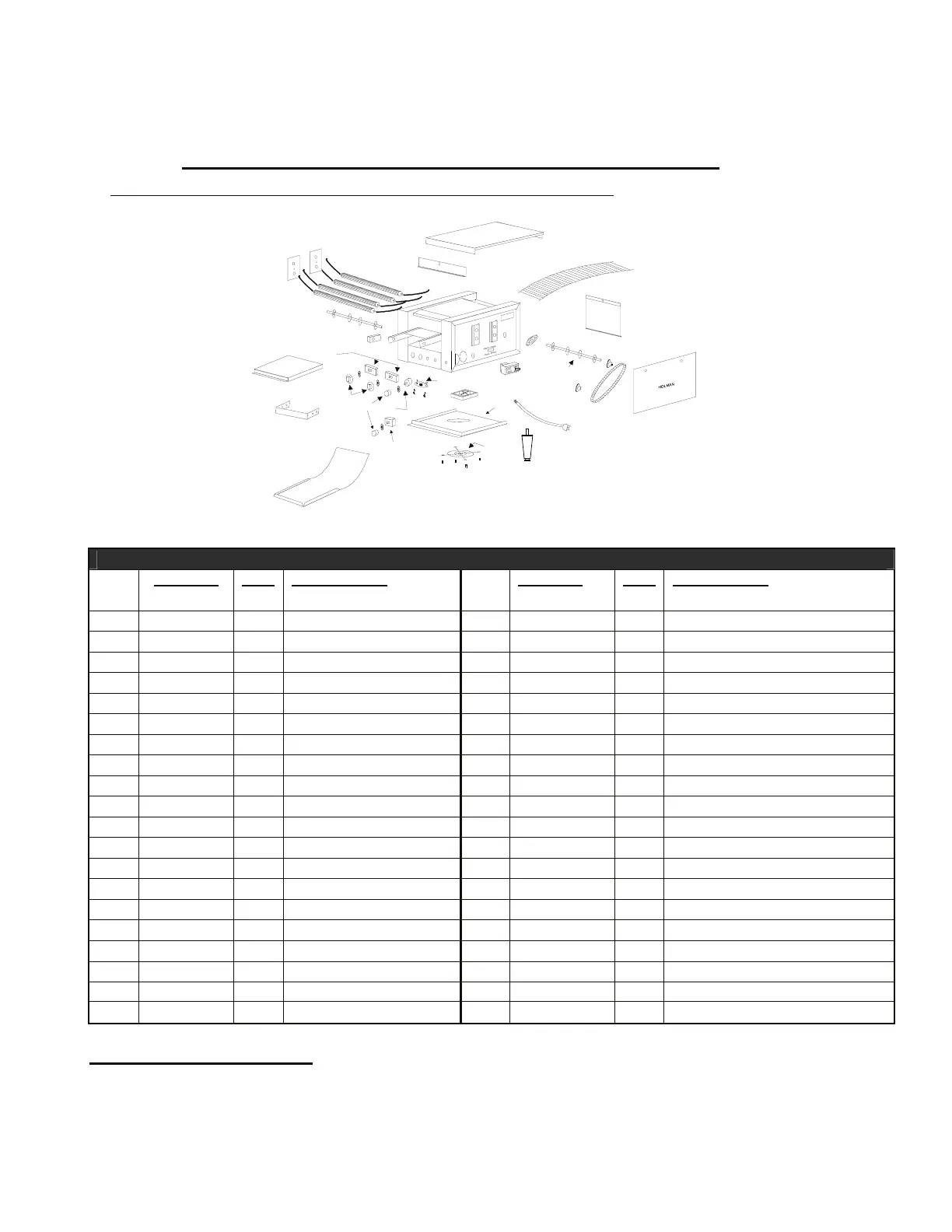

PARTS LIST /EXPLODED VIEW MODEL TX710(H) 120, 208, 240 VOLT
1.
2.
3
..
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
23.
15.
16.
29.
18.
19.
20.
21.
22.
17.
28.
14.
25.
24.
27.
26.
Model: TX710 (H) 120, 208, 240V
PART No.
QTY. DESCRIPTION PART No. QTY. DESCRIPTION
1) HO-400821 1 Cover, Top 13a) 2U-200560 1 Fan Motor, 208/240 Volt
2) GH-197848 4 Heater Tube, 120 Volt 14) NLA 1 Control Box Cover
2a) HO-197841 4 Heater Tube, 208 Volt 15) 2R-200562 1 Fan Guard
2b) H0-197844 4 Heater Tube, 220 Volt 16) HO-100901 1 Idler Shaft
2c) HO-197842 4 Heater Tube, 240 Volt 17) HO-100541 1 Crumb Tray
3) NLA 4 Retainer, Heater TubeHH 18) 2J-200538 2 Infinite Switch, 208/240 Volt
4) HO-160003 1 Conveyor Belt, T710(H) 18a) 2J-200539 2 Infinite Switch, 120 Volt
5) HO-400827 1 Back Panel, Low 19) SP-118000 1 Speed Control, 120 Volt
5a) HO-400925 1 Back Panel, High 19a) SP-118042 1 Speed control, 208/240 Volt
6) HO-401486 2 Side Panel, Low 20) 2E-200566 1 Reset/High Limit
6a) NLA 2 Side Panel, High (H) 21) 2R-200702 2 Knob, Infinite Switch
7) 2P-200662 1 Drive Chain 22) 2R-200703 1 Knob, Speed Cont'l/ Power Saver
8) 2P-Z8779 1 Drive Sprocket 23) 2E-200551 1 Power Saver Switch
9) 2P-200645 1 Driven Sprocket 24) 2R-200715 4 Leg, 4" Plastic
10) HO-100900 1 Drive Shaft 25) 2E-200376 1 Power Supply Cord, 208/240 Volt
11) HA-112261 2 Bearings, Rear 25a) 2E-200375 1 Power Supply Cord, 120 Volt
12) 2U-Z13803 1 Drive Motor, 120 Volt 26) HO-400825 1 Toast Chute
12a) 2U-200509 1 Drive Motor, 208/240 Volt 27) GA-401131 1 Extension Guard
13) 2U-200558 1 Fan Motor, 120 Volt 28) GA-400891 1 Heat Shutter (H Model Only)
29) 2P-200693 2 Idler Bushing
Parts continued on page 12
REVISED 9/10/2008 RMS
