PAGE 12
OPERATOR'S MANUAL
HOLMAN CONVEYOR TOASTERS
MODELS T710(H, TW, TX) T714(H, TW, TX) S710(H) S714(H) B710H

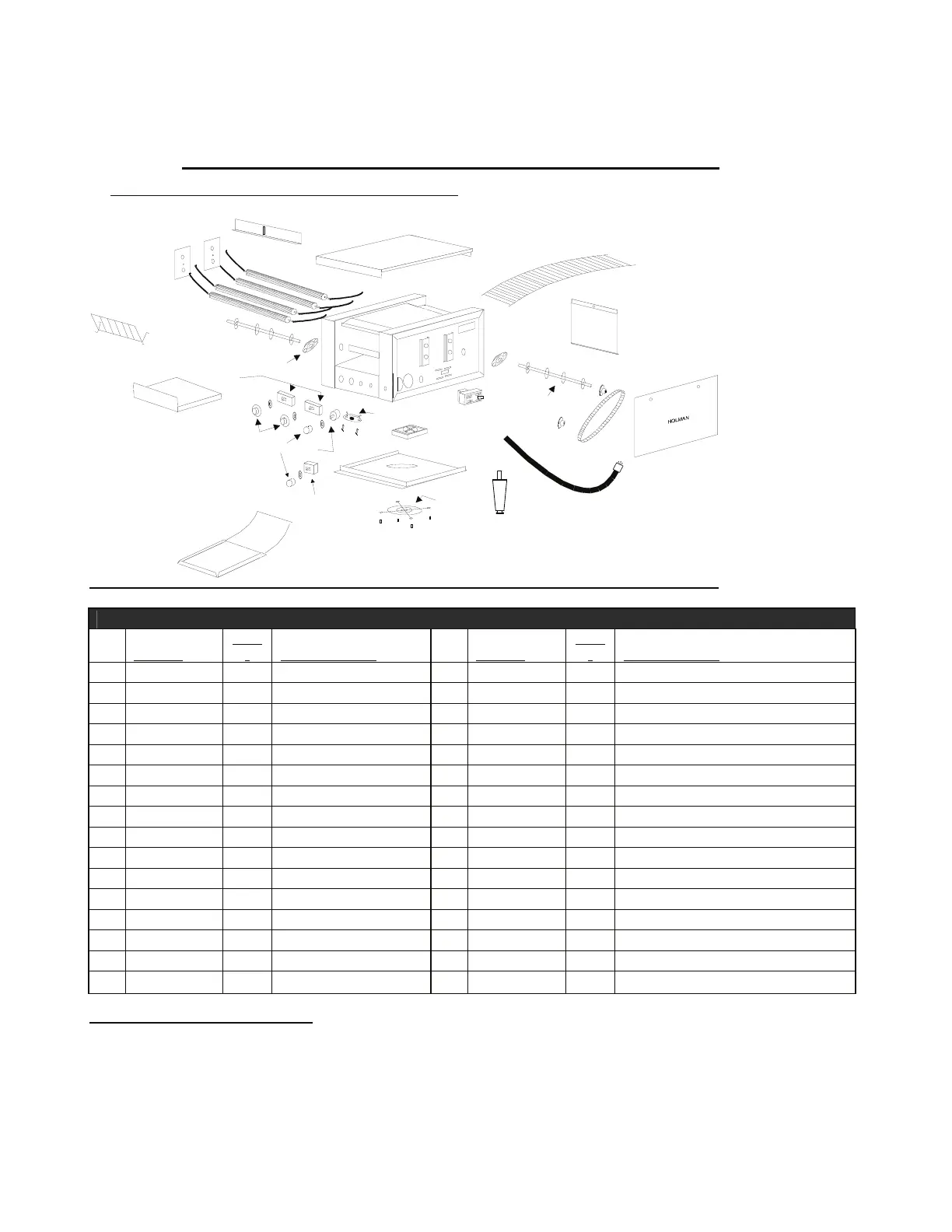

PARTS LIST /EXPLODED VIEW MODEL T714(H)
1.
2.
3
..
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
23.
15.
16.
11.
18.
19.
20.
21.
22.
17.
24.
25.
27.
14.
26.
1.
28.
Model: T714 (H)
PART #
QTY
. DESCRIPTION
PART #
QTY
. DESCRIPTION
1) GC-400847 1 Top Cover 13) 2U-200560 1 Fan Motor
2) HT-197850 4 Heater Tube, 240 Volt 14) HT-100312 1 Control Box Cover
2a) HT-197846 4 Heater Tube, 220 Volt 15) 2R-200562 1 Fan Guard
2b) HT-197851 4 Heater Tube, 208 Volt 16) 2A-202904 1 Idler Shaft
3) NLA 4 Retainer, Heater Tube 17) HO-100508 1 Crumb Tray
4) HM-160004 1 Conveyor Belt 18) 2J-200538 2 Infinite Switch
5) HT-400853 1 Back Panel, Low 19) SP-118042 1 Speed Control
5a) HT-400926 1 Back Panel, High 20) 2E-200566 1 Reset Switch
6) HO-401486 1 Side Panel, Low 21) 2R-200702 1 Knob, Infinite Switch
6a) NLA 1 Side Panel, High 22) 2R-200703 2 Knob, Speed control/Power Saver
7) 2P-200663 1 Drive Chain 23) SP-115142 1 Power Saver Switch
8) 2P-200645 1 Drive Sprocket 24) 2R-Y5092 4 Leg, 4" Plastic
9) 2P-Z8779 1 Driven Sprocket 25) HJ-140027 4 Cord/Plug Set
10) 2A-202902 1 Drive Shaft 26) HT-400846 1 Toast Chute
11) HA-112261 1 Bearings 27) HM-401089 1 Extension Guard
12) 2U-200509 1 Drive Motor 28) HM-400899 1 Heat Shutter (H model only)
Parts continued on page 13
REVISED 1/31/2011 RMS
