Holman T710 - Page 17

PAGE 15
OPERATOR'S MANUAL
HOLMAN CONVEYOR TOASTERS
MODELS T710(H, TW, TX) T714(H, TW, TX) S710(H) S714(H) B710H
WIRING DIAGRAM FOR MODEL T710(H & TW) 120 VOLT
TX710(H) 120 VOLT
REV. 9/15/98 MJC
H:\TOASTERS\T710\
120VAC/WIRDIAG\
T710SCM.DS4

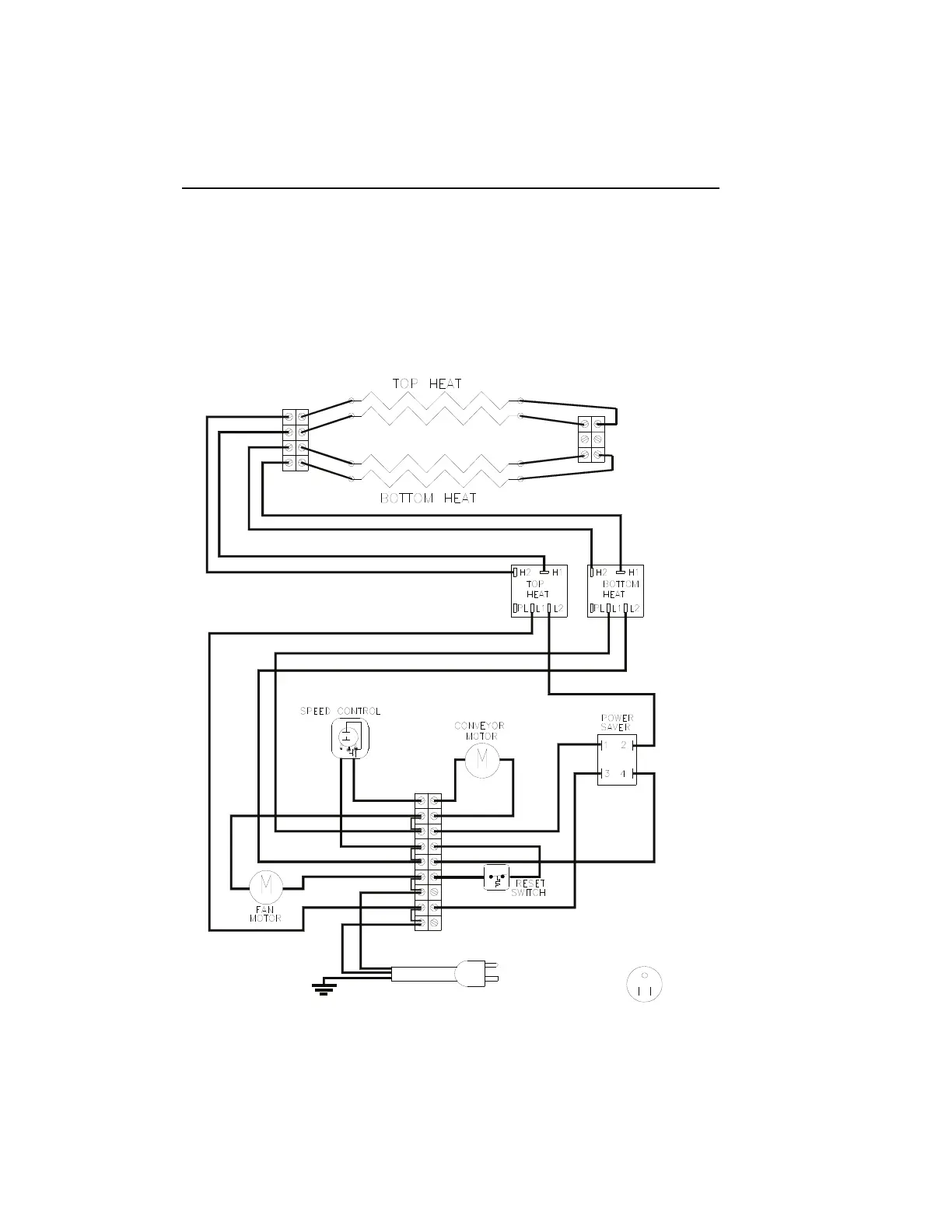

WIRE DIAGRAM
FOR MODEL T710(H), TX710(H) - 120 VOLT
PLUG CONFIGURATION
NEMA 5-15P
120 VOLT
REVISED 9/10/2008
