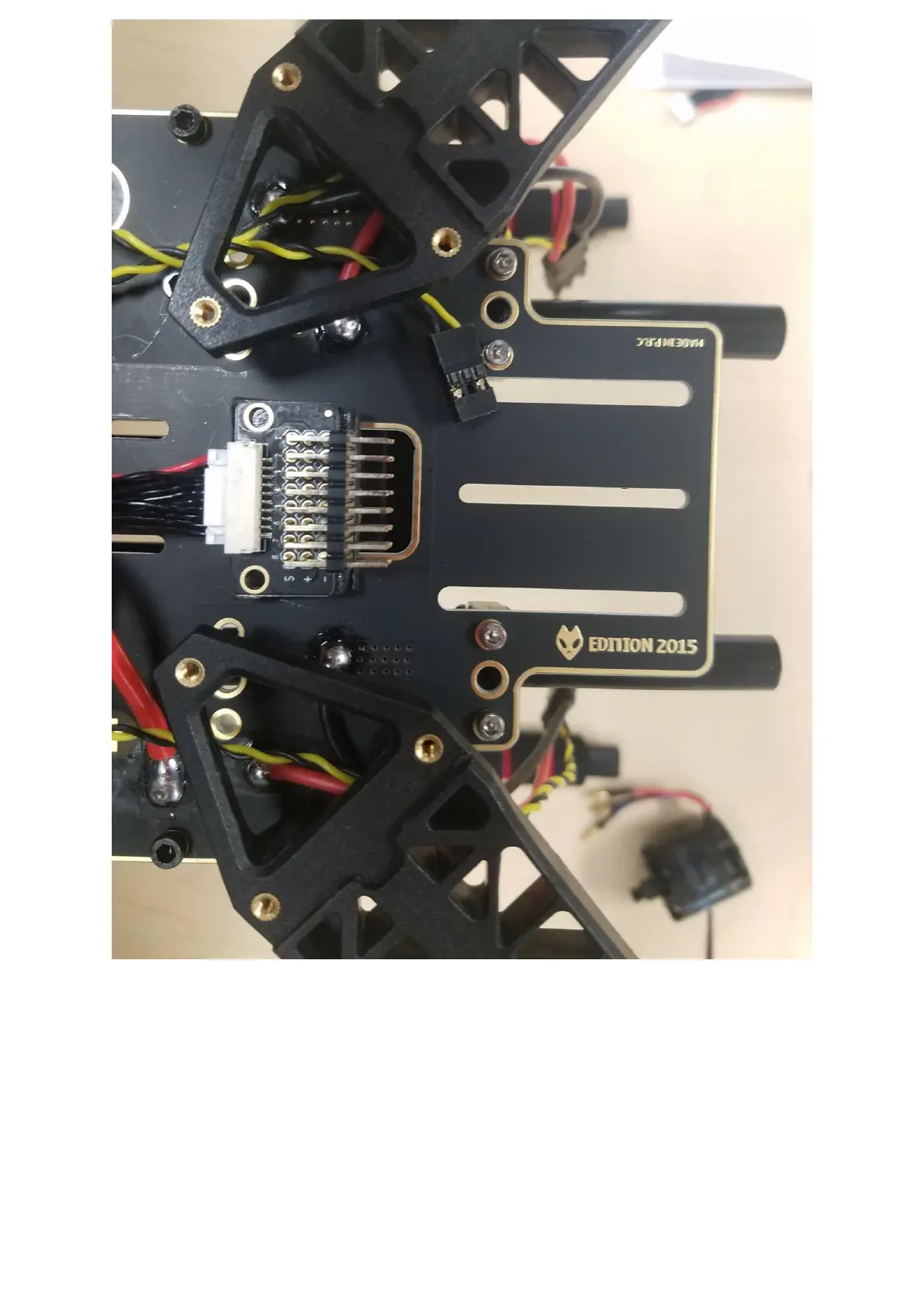

Figure 13
Step 5: Assemble the motors to the arms.
For this, we will need the 16 screws M3X7, 4 motors, and the 4 arms. Mount the motors in
each arm put the screw through the bottom of the arm, see Figures 14 and 15. After the 4
motors are mounted on the arm grab the cables(red, blue, black) and put them through the
arm thread, see Figures 16 and 17. The 3 cables that are color-coded go connected to the
ESC.
