Holzstar SAA 902 - 4 Description of the Device; Machine; Scope of Supply; 5 Technical Data

Description of the device
SAA 902 | Version 1.03 9
4 Description of the device
4.1 Machine
Figures in this operation manual serve to provide a
basic under-standing and may differ from the actual
design.

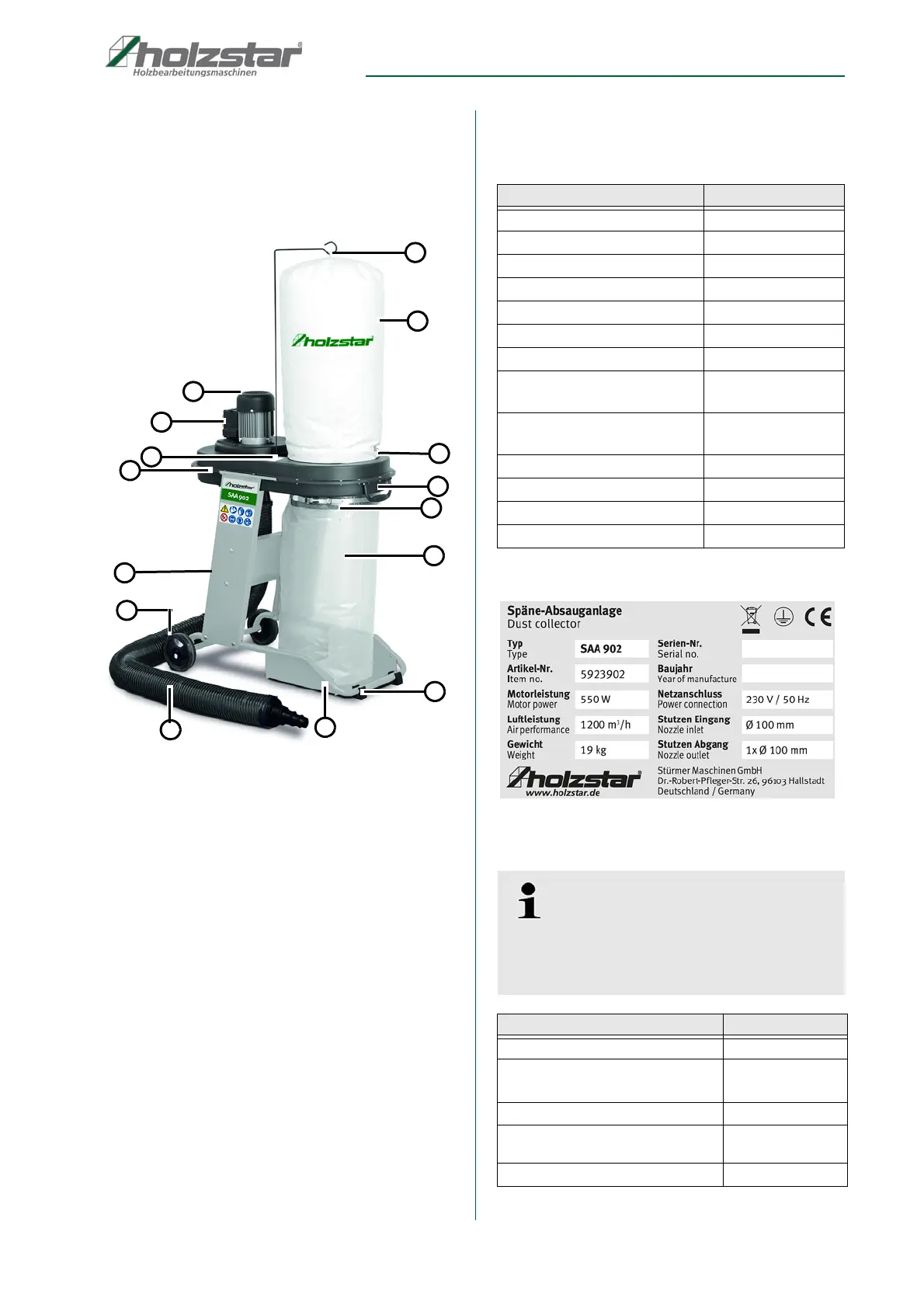

Fig. 2: Chip extraction unit SAA 902
1 Dust bag hook
2 Dust bag
3 Quick release dust bag
4 Transport handle
5 Quick-release device catch bag
6 Catch bag
7 Base plate
8 Chassis
9 Suction hose
10 Wheel
11 Stabilizing sheet
12 Plastic housing
13 Holes for dust bag hooks
14 ON / OFF switch
15 Engine
4.2 Scope of supply
- 1 chip bag and 1 filter sack
- 2 hose clips and 2 straps
- Hose adapter set 4-part
- 2000 mm PU hose Ø 100 mm
5 Technical Data
5.1 Table
5.2 Type plate
Fig. 3: Type plate SAA 902
5.3 Accessories
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Model SAA 902
Length 900 mm
Width 500 mm
Height 1550 mm
Weight 19 kg
Supply voltage 230 V
Rated volume flow 1200 m³/h
Negative pressure max. 1100 Pa
Extraction duct inlet outside
nominal width
100 mm
Extraction duct outlet outside
nominal width Electrical data
100 mm
Input power 0,55 kW
Output power 0,35 kW
Sound power level max. 94,9 dB(A)
Sound pressure level max. 80,2 dB(A)
Tips and recommendations
We recommend to use only high quality original Holz-
star accessories. Only with original accessories, a
flawless operation and optimal work results can be
guaranteed.
Description Item number
Filter bag SAA 902 5930903
Chip bag SAA 902
(1 pack of 10 pieces)
5930904
Adapter set for SAA 902 5930905
Reducing socket, not flanged, Ø
100 mm wide, 60 mm narrow
5142427
Floor cleaning set BRS 1 5148100
