brake wire is locked securely through the anchor bolt and the rubber block is parallel with the
rim with a clearance of 1.5 – 2mm in between. Squeeze the brake lever and then release several
times, rotate the wheel, be sure the wheel does not wobble.
Fig.4

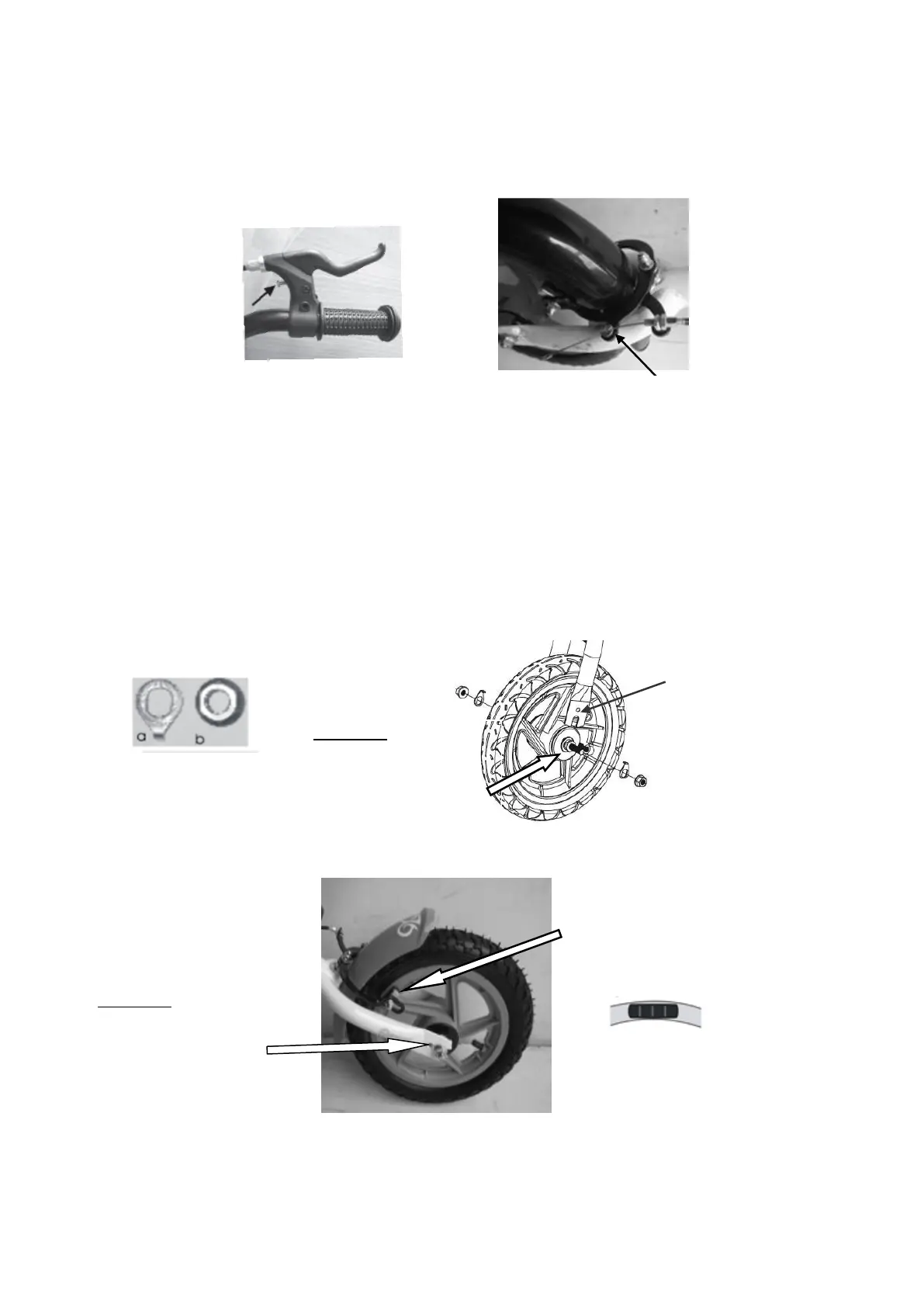

ASSEMBLE WHEELS
ASSEMBLE WHEELS
Front and back wheels are same. Use 2 pcs of nut wrench according the size of nuts. Put on the wheel
to wheel fork and push the teb washer(Fig.1 a) into the small hole. Before the inserting of the back
wheel unloose the brake cable to unloose caliper brake. Tighten the nuts of the wheel (Fig.1 b). The
wheel axis has to be parallel with longitudinal axis of a frame.
Fig. 5 a b
Note: In need of disassembling, dismantle the wheel in the opposite way of installation.
Front wheel:
Insert into axle slots.
Install the tab washer (a).
Then install the axle nut (b).
Tighten the nut with wrench.
Front wheel:
Insert into axle slots.
Install the tab washer (a).
Then install the axle nut (b).
Tighten the nut with wrench.
During wheel installation make
sure the brake rubber pad is
parallel with the wheel rim.
Keep the rubber pad parallel with
the rim with a clearance of 1.5 –
2mm in between.
