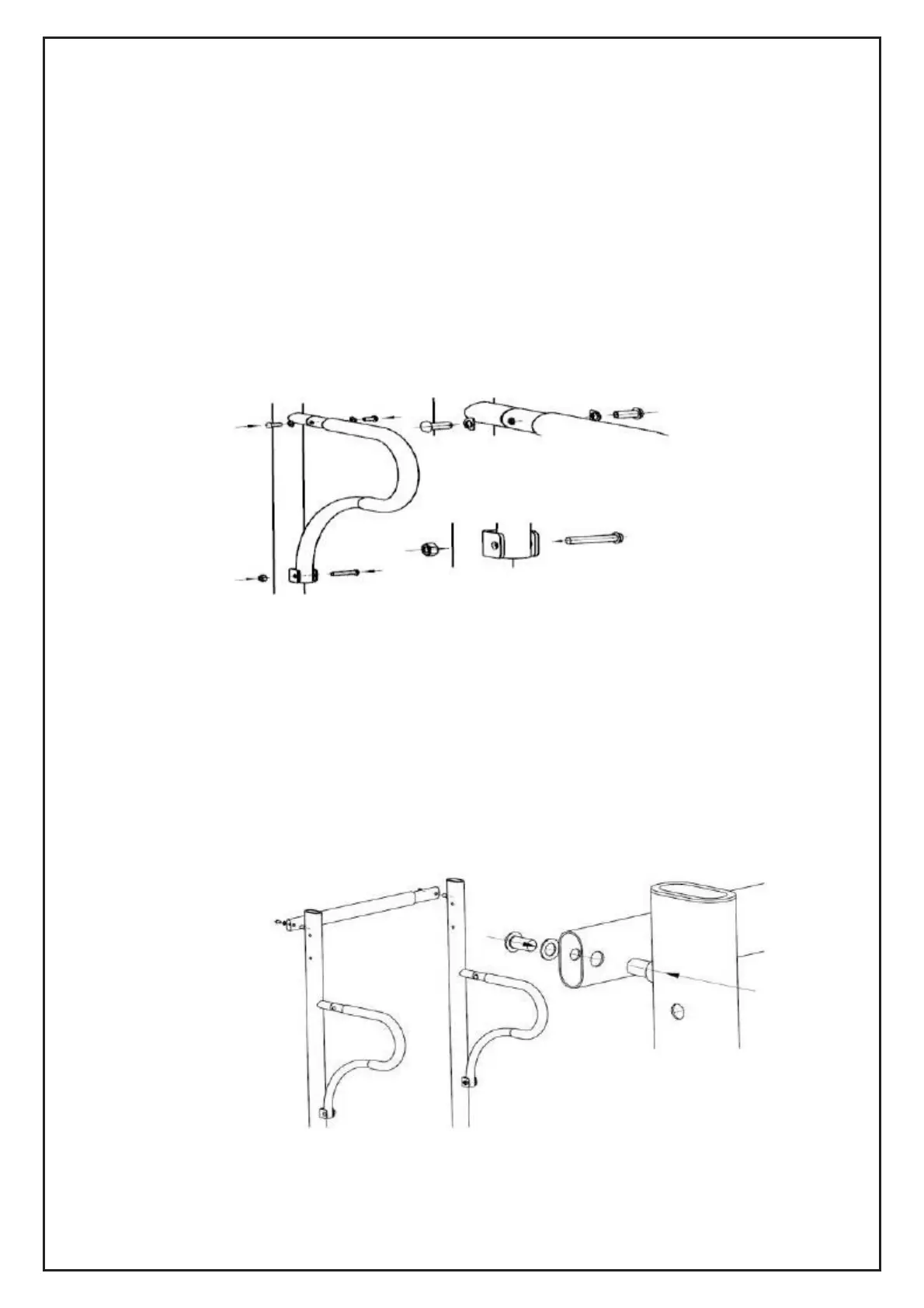

Installation diagram
Step 6: install parallel bars
1)
hole alignment, the top with M6*20 screw through,
place arc gasket, with M6*15 hexagon screw fastenting
2)
Bottom
end
fastened
with
M8*40
hexagon
screw
through M8
nut.
Step 7: install backrest lever
1)
the
size
of
the
inner
and
outer
hole
of
the
backrest
pipe
is
not
consistent,
the
large
hole
is
installed
inwardly,
with
M8*15
semicircle
head
screws
into
the fastening.
