ASSEMBLY INSTRUCTION
4

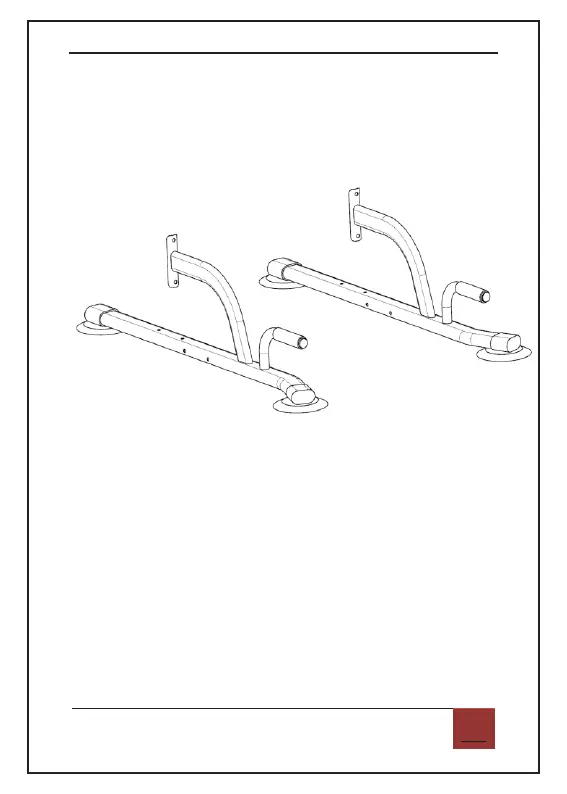

Take out the left and right leg tubes (note that
the bottom leg covers are parallel to the
ground.
Step 2: Install the main frame
① To install the main pipe and the leg pipe, use
4 M8*40 round head square neck screws to
pass through the leg pipe from the bottom,
put on the round backing plate, and fasten
with M8 nuts. The reinforced pipe and the
main pipe are installed by using 4 M8*70
inner hexagonal screws to pass through the
inner main pipe, put
on the curved backing
Step 1：Install four-foot covers
