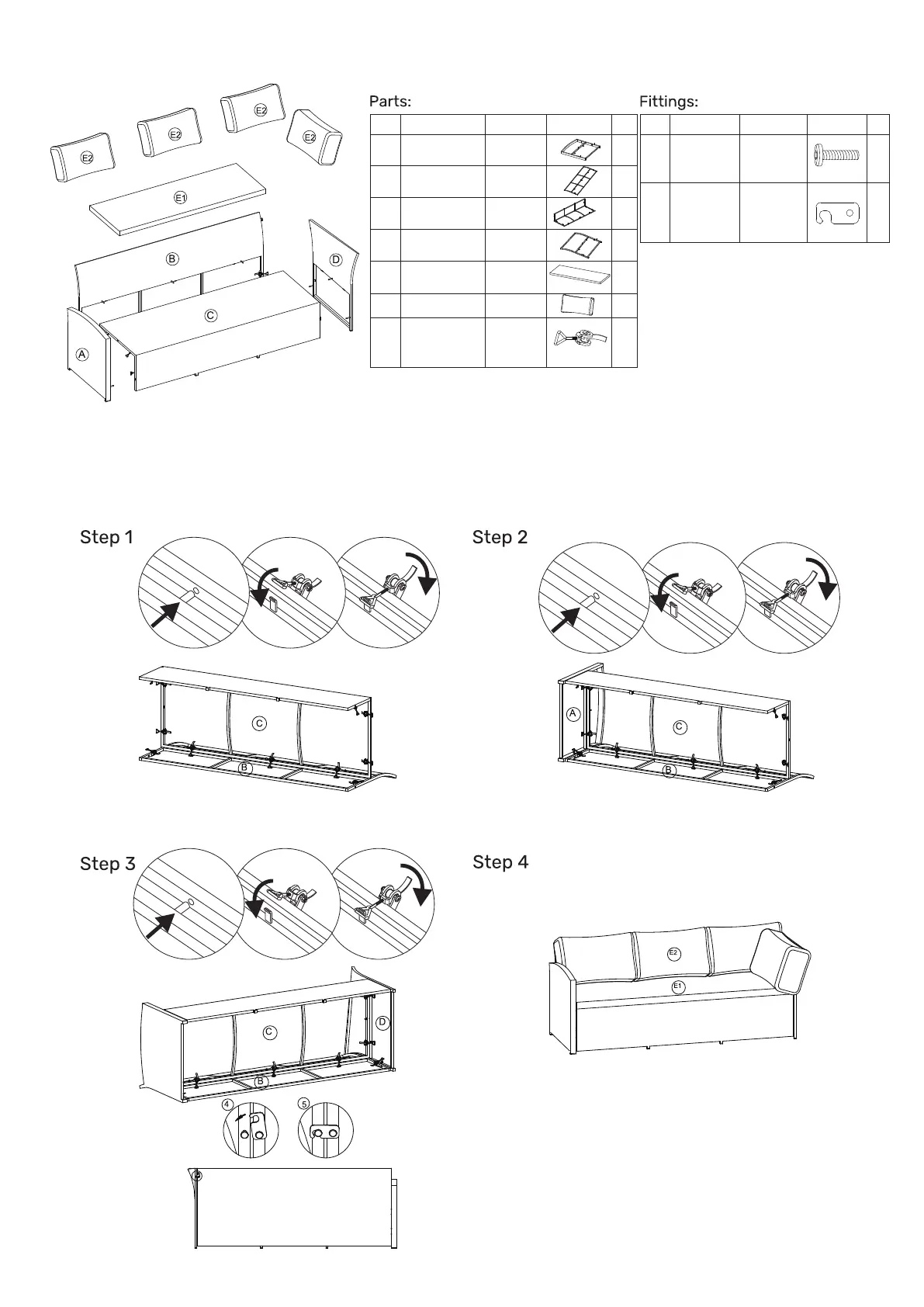

Step 1: Insert latches on back (B) to sofa seat (C), then lock the clip tightly.
Step 2: Insert latches on right arm (A) to sofa seat (C) and sofa back (B), then lock the clip tightly.
Step 3: Insert latches on left panel (D) to sofa seat (C) and sofa back (B), then lock the clip tightly. Lock the
ASSEMBLY INSTRUCTIONS - 3-SEAT SOFA
bracket on the corner.
Step 4: Place the seat cushion (E1) and back cushion (E2) on the sofa.
Right
Arm
Sofa
Back 1
Sofa Seat
Board 1
Left
Panel
Seat
cushion
Back
cushion
A
B
C
D
E1
E2
E
x 1
x 1
x 1
x 2
x 1
x 1
x 1
x 4
x 11
P00140042301
P00150018701
P00160032301
P00140042401
P00180024601
P00170015101
P00220050501
H3
Screw
M6*25mm
(Pre-assembly
on B,D.)
H4
Metal
Bracket
H010030021
H990020017
(Pre-assembly
on B.)
Clip
(Pre-
assembly
on B,C.)
Label Part Number Part Image Qty Description Label Part Number Part Image Qty Description
