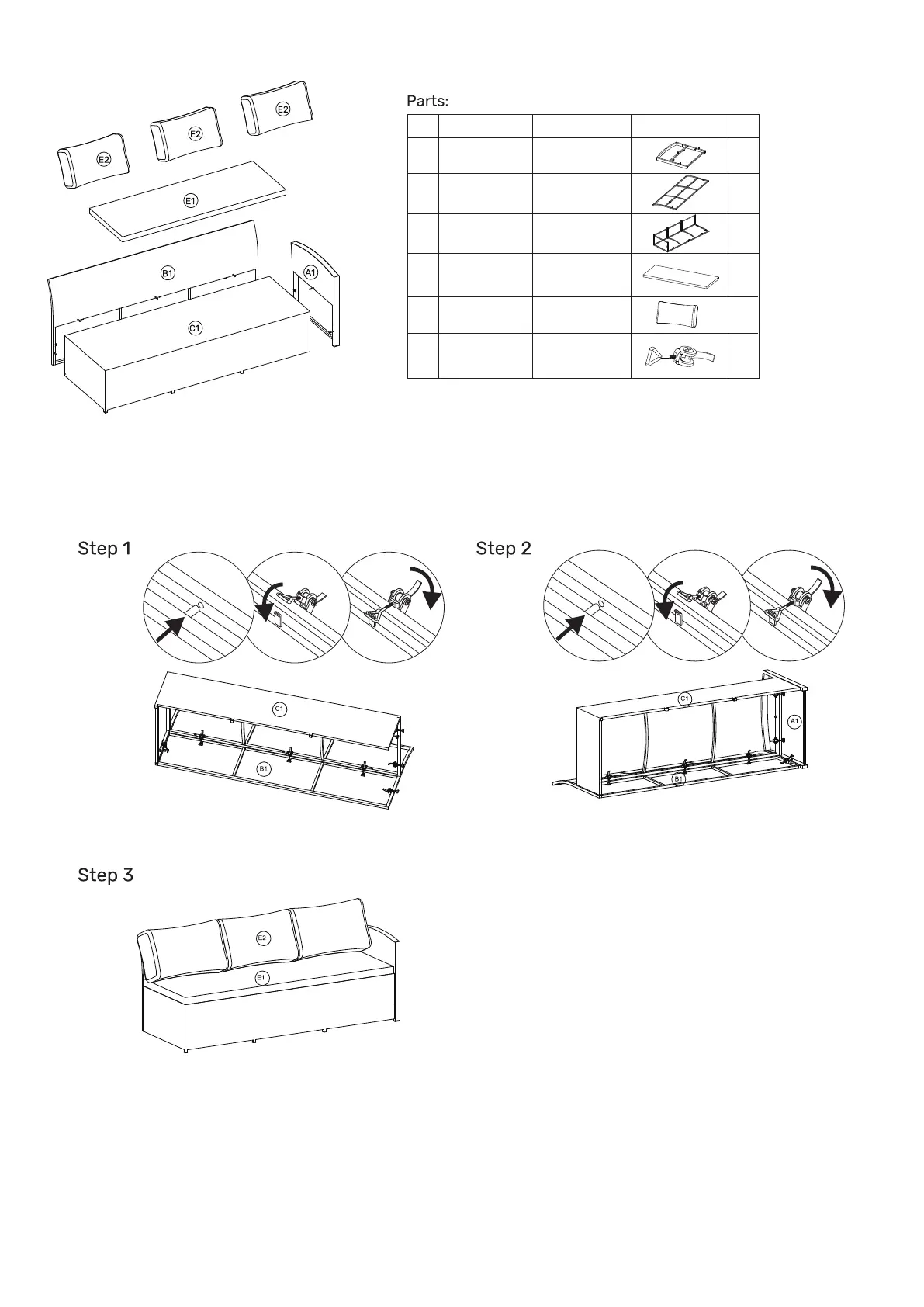

ASSEMBLY INSTRUCTIONS - LEFT-ARM SOFA
Step 1: Insert latches on back (B1) to sofa seat (C1), then lock the clip tightly.
Step 2: Insert latches on left arm (A1) to sofa seat (C1) and sofa back (B1), then lock the clip tightly.
Step 3: Place the seat cushion (E1) and back cushion (E2) on the sofa.
A1
B1
C1
E1
E2
E
x 1
x 1
x 1
x 1
x 3
x 8
P00140042501
P00150018801
P00160032401
P00180024601
P00170015101
P00220050501
Left
Arm
Sofa
Back 2
Sofa Seat
Board 2
Seat
cushion
Back
cushion
Clip
(Pre-assembly
on B1. C1.)
Label Part Number Part Image Qty Description
To Next Page
