Page 8
ASSEMBLY
WARNING:
Stop the engine and disconnect the spark plug wire
before installing parts, making adjustments, cleaning, or
when not in use. Failure to do so could result in possible
serious personal injury.

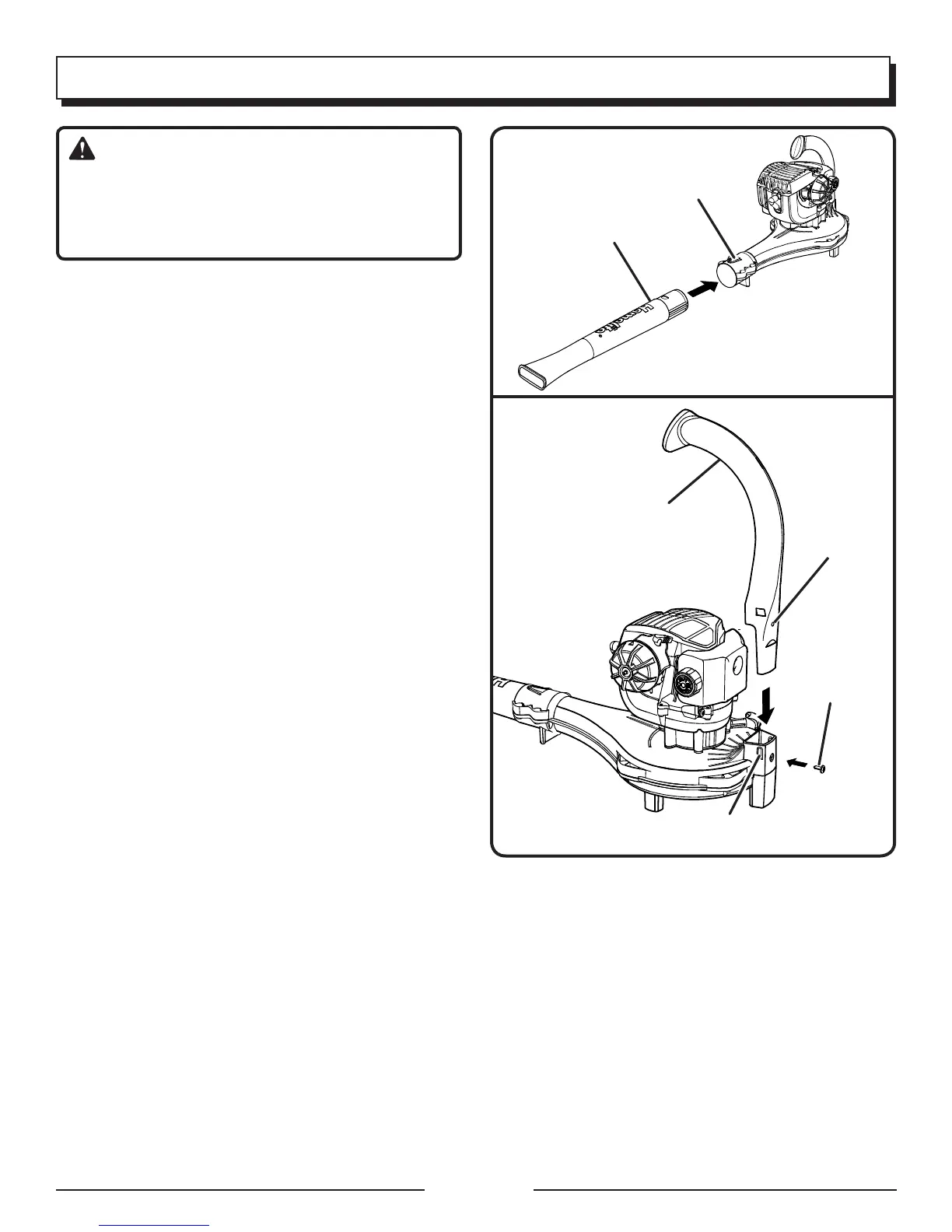

ASSEMBLING THE BLOWER TUBE
See Figure 2.
Align the flat side of the blower tube with the flat side of
the blower.
NOTE:
Homelite logo will be face up.
Push blower tube into blower housing until the tube latch
snaps into place.
To remove the tube, lift the tube latch with a screwdriver
and remove tube from the blower housing outlet.
ATTACHING THE HANDLE
See Figure 3.
Position handle so that the screw hole is facing
outward.
Insert handle into blower handle compartment until the
handle snaps into place.
Secure handle in place with the provided screw.
Fig. 2
Fig. 3
handle
ScRew
bloweR Tube
ScRew hole
SnaP
SnaP
