Page 22 — English

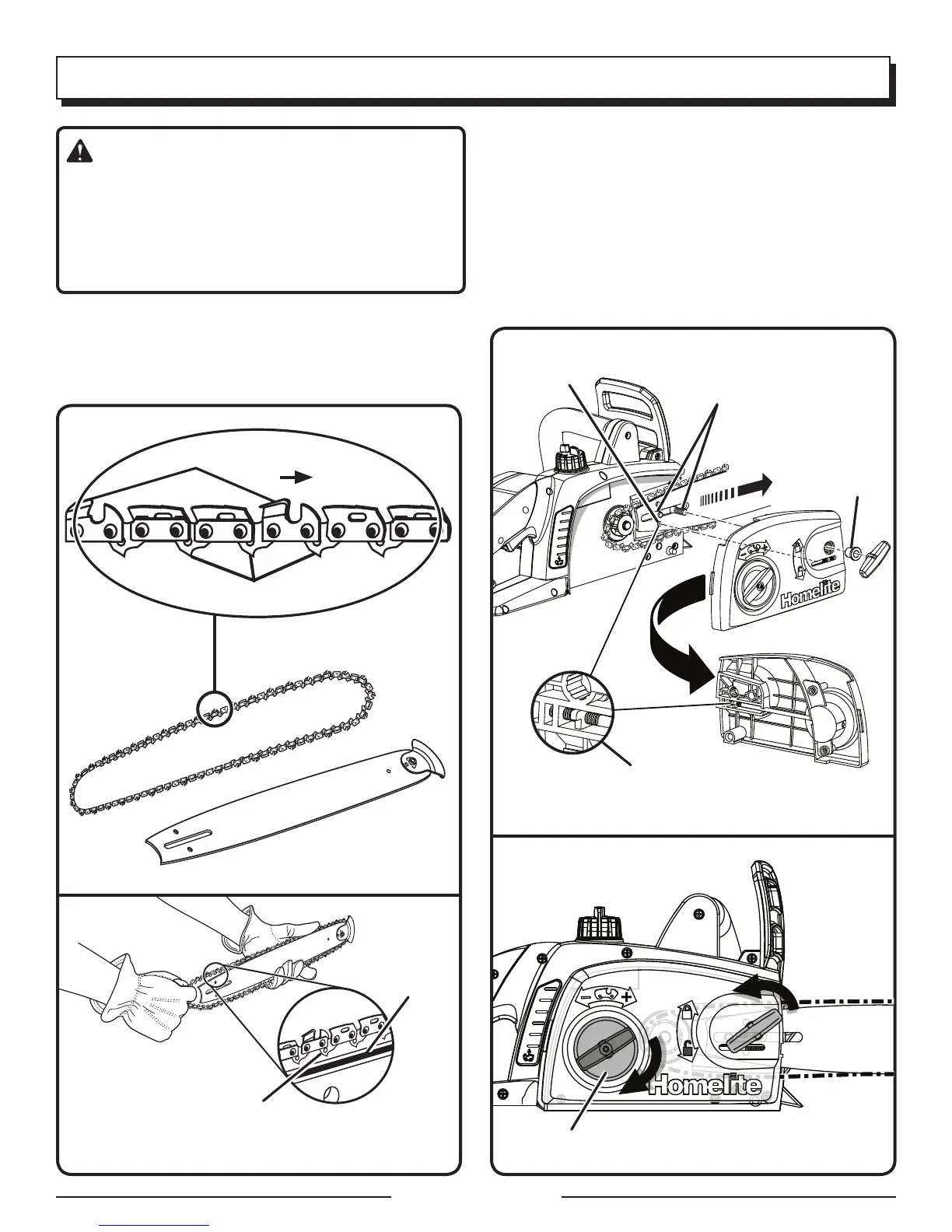

Fig. 31
BAR GROOVE
CHAIN DRIVE LINKS
Fig. 29
CUTTERS
CHAIN ROTATION
CHAIN DRIVE LINKS
Fig. 28
Fig. 30
WARNING:
Never touch or adjust the chain while the motor
is running. The saw chain is very sharp; always
wear protective gloves when performing main-
tenance to the chain to avoid possible serious
lacerations.
NOTE: When replacing the guide bar and chain,
always use the specified bar and chain listed in
the Bar and Chain Combinations section later
in this manual.
BAR STUDS
CHAIN TENSIONING
PIN HOLE
CHAIN TENSIONING
KNOB
CHAIN TENSIONING
PIN
SLEEVE
MAINTENANCE
Disconnect chain saw from power supply.
Rotate the chain cover lock knob counterclock-
wise and remove knob and sleeve.
Remove the chain cover.
Remove the bar and chain from the mounting
surface.
Remove the old chain from the bar.
To Next Page
