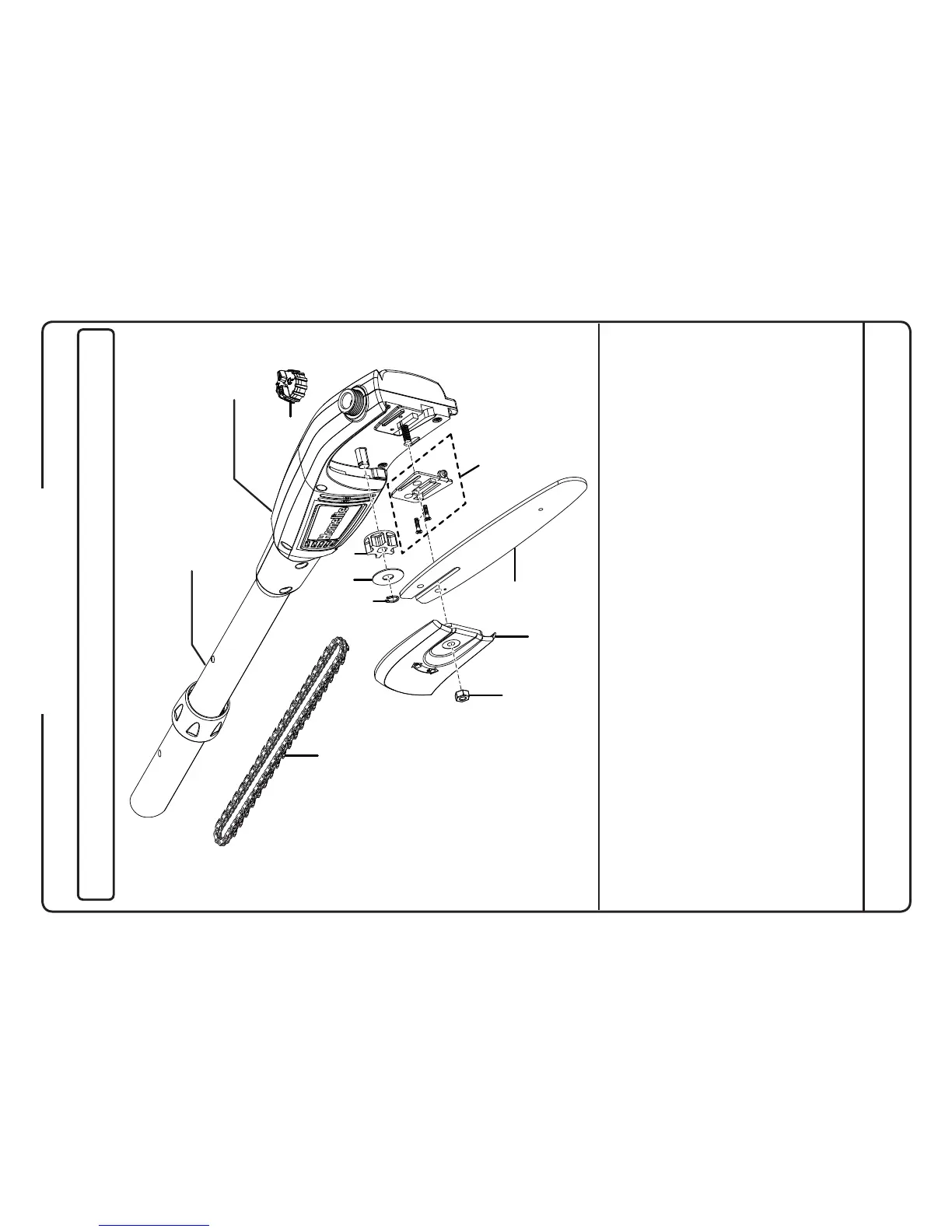

PARTS LIST
The model number will be found on a label attached to the motor housing. Always mention the model number
in all correspondence regarding your ELECTRIC POLE SAW or when ordering replacement parts.
1 901289001 Chain ..........................................................................................................................1
2 3290875G Retaining Ring ............................................................................................................1
3 33302102G Washer .......................................................................................................................1
4 33902102G Sprocket .....................................................................................................................1
5 31306152G Oil Cap .......................................................................................................................1
6 32901152G Hex Nut (M6) ..............................................................................................................1
7 31308152G Chain Cover Assembly ...............................................................................................1
8 310605001 Bar ..............................................................................................................................1
9 31307152G Chain Adjustment Assembly ......................................................................................1
Not Shown
34161152G Scabbard ....................................................................................................................1
987000228 Operator’s Manual ......................................................................................................1
KEY PART
NO. NUMBER DESCRIPTION QTY
6
9
7
2
3
4
8
1
5
SEE NOTE
SECTION “A”
NOTE: The assembly shown represents an important part of the Double Insulated System. To avoid
the possibility of alteration or damage to the system, service should be performed by your nearest
Homelite authorized service dealer.
2
HOMELITE ELECTRIC POLE SAW
MODEL NO. UT43160 – ALL VERSIONS
