Homelite VAC ATTACK II UT08544 Repair Sheet

HOMELITE VAC ATTACK II – MODEL NUMBERS UT08544 AND UT08546
2

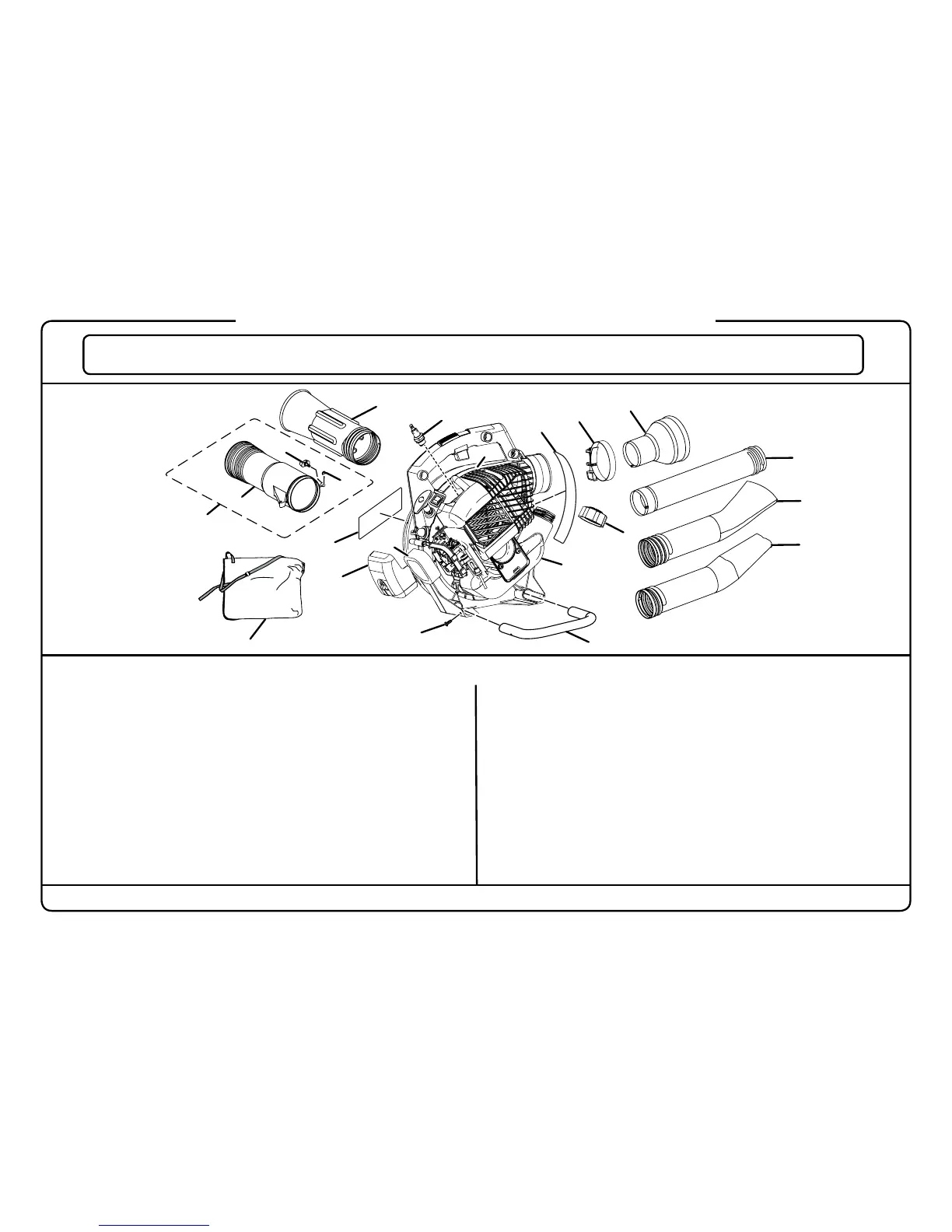

KEY PART
NO. NUMBER DESCRIPTION QTY
PARTS LIST
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
The model number will be found on a plate attached to the engine housing. Always mention the model number in all correspondence regarding your
VAC ATTACK II or when ordering repair parts.
1 870174001 Spark Plug (Champion RCJ6Y) ......................... 1
2 560873001 Air Filter ............................................................ 1
3 308890001 Air Box Cover Assembly (Inc. Key No. 2) .......... 1
4 660676001 * Screw (8-18 x 1/2 in. Pan Hd.) .......................... 2
5 650024001 Lower Handle ................................................... 1
6 300758006 Fuel Cap Assembly ........................................... 1
7 348005003 Clamp Assembly ............................................... 1
8 580559001 High Velocity Nozzle ......................................... 1
9 580556001 Sweep Nozzle ................................................... 1
10 580555001 Upper Blower Tube ........................................... 1
11 580560001 Upper Vacuum Tube ......................................... 1
12 580561001 Lower Vacuum Tube ......................................... 1
13 580562001 Vacuum Adaptor ............................................... 1
14 900960001 Leaf Bag ........................................................... 1
15 940299495 Door Decal ......................................................... 1
16 940642012 Starting Label ................................................... 1
17 650027001 E-ring ..................................................................1
18 518066001 Blower Knob .......................................................1
19 308141010 Fuel Tank & Cap Assembly (Inc. Key No. 6)
(UT08544) ...........................................................1
308123015 Fuel Tank & Cap Assembly (Inc. Key No. 6)
(UT08546) ...........................................................1
20 940299493 Warning Label .....................................................1
21 308384001 Vac Tube, Knob & E-ring Assembly
(Inc. Key Nos. 11, 17 and 18) .............................1
983000929 Operator’s Manual
987000085 Operator’s Manual
01-11-07
(Rev:04)
KEY PART
NO. NUMBER DESCRIPTION QTY
9
10
12
5
8
11
21
7
14
1
3
13
17
18
19
6
20
4
15
2
16
