Homelite YARD BROOM II UT08514 Repair Sheet

HOMELITE YARD BROOM II – MODEL NUMBER UT08514
2
KEY PART
KEY PART
NO. NUMBER DESCRIPTION QTY
NO. NUMBER DESCRIPTION QTY

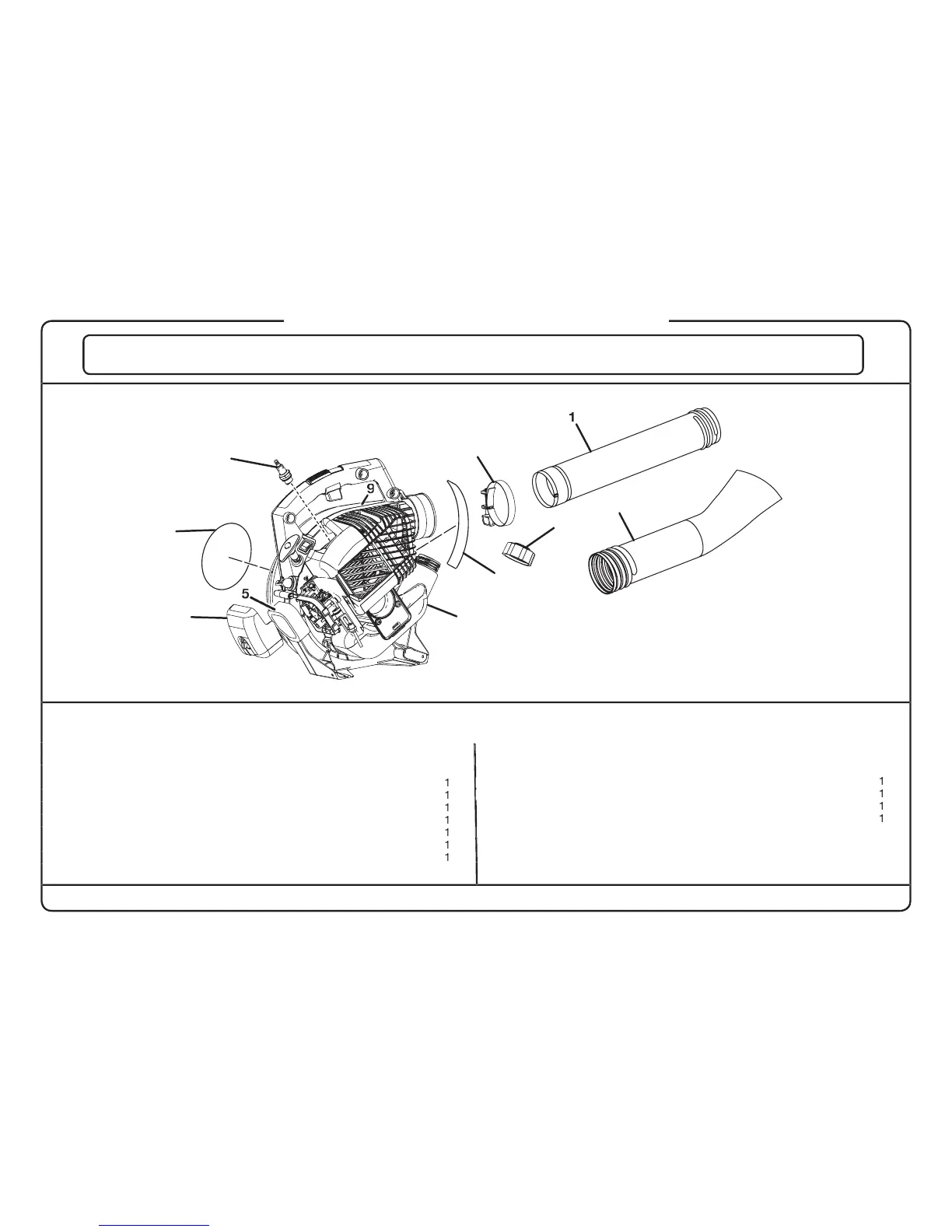

PARTS LIST
* STANDARD HARDWARE ITEM – MAY BE PURCHASED LOCALLY
The model number will be found on a plate attached to the engine housing. Always mention the model number in all correspondence regarding your
YARD BROOM II
or when ordering repair parts.
1 580555001 Upper Blower Tube
1 580555001 Upper Blower Tube
............................................
1
2 580556001 Wide Sweeper Nozzle
2 580556001 Wide Sweeper Nozzle
.......................................
1
3 348005003 Clamp Assembly
3 348005003 Clamp Assembly
...............................................
1
4 870174001 Spark Plug
4 870174001 Spark Plug
.........................................................
1
5 560873001 Air Filter
5 560873001 Air Filter
.............................................................
1
6 308890001 Air Box Cover Assembly (Inc. Key No. 5)
6 308890001 Air Box Cover Assembly (Inc. Key No. 5)
...........
1
7 300758006 Fuel Cap Assembly
7 300758006 Fuel Cap Assembly
............................................
1
8 940299487 Logo Label
8 940299487 Logo Label
.........................................................
1
9 940642012 Starting Label
9 940642012 Starting Label
....................................................
1
10
940299493 Warning Label
.....................................................
1
11
308141010 Fuel Tank & Cap Assembly (Inc. Key No. 7)
.......
1
983000927 Operator’s Manual
983000927 Operator’s Manual
9-12-06
9-12-06
(Rev:03)
(Rev:03)
KEY PART
KEY PART
NO. NUMBER DESCRIPTION QTY
NO. NUMBER DESCRIPTION QTY
2
1
7
11
10
4
6
3
8
