7

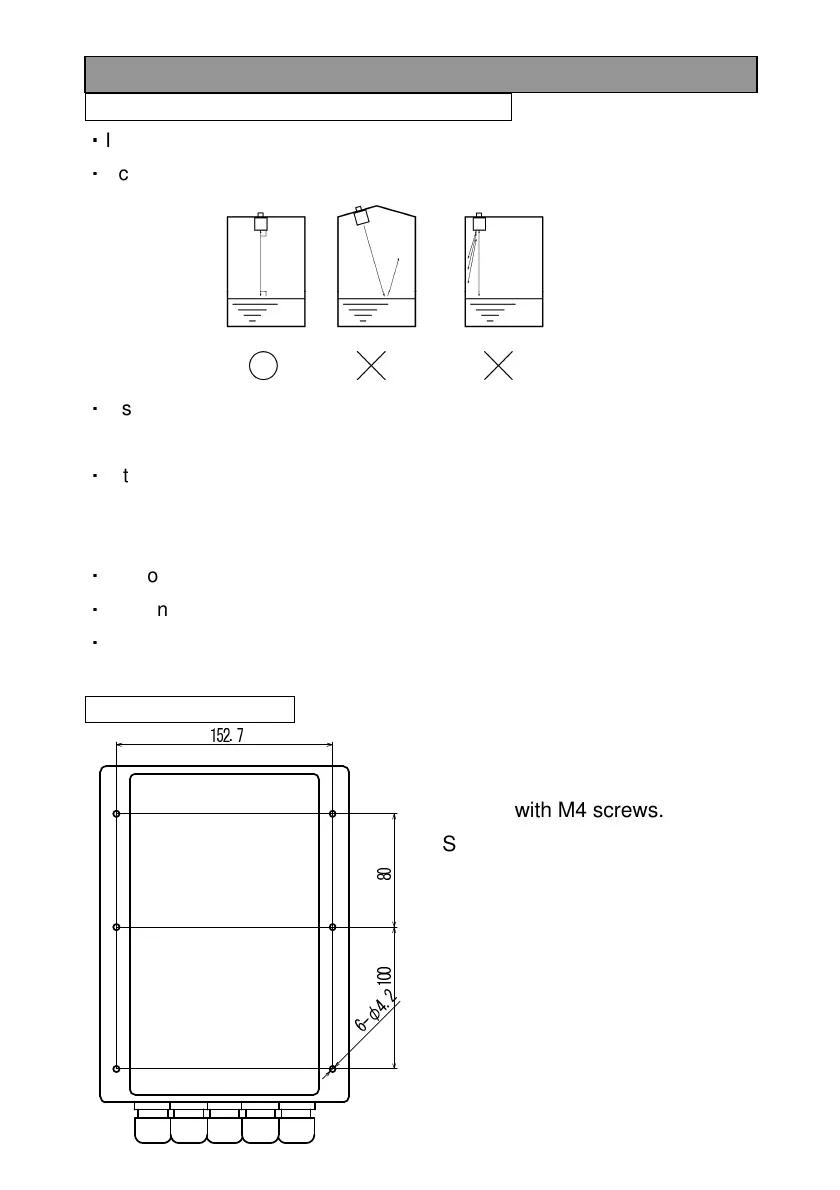

Installation
Sensor installation for TS40-5 and TS40T-5
・
Install the ultrasonic sensor horizontally on the top of the tank.
・
Screw in the 1-inch screw of the sensor to install it.
・
Install the sensor so that the sensor surface is parallel to the surface of the
liquid.
・
If the installed sensor is closed to the side wall of the tank or an equivalent,
unnecessary reflection wave is detected and the incorrect measurement
occurs.
・
Do not use unnecessary force to screw in the sensor.
・
Prevent the sensor from the direct sun.
・
Do not install the multiple sensors in the same tank.
(Incorrect measurement occurs due to the mutual interference.)
Main unit installation
Secure with M4 screws.
Screw pitch
152.7 * 80
152.7 * 100
152.7 * 180
152.7
6
-
φ
4
.
2
8
0
1
0
0
