3 of 3
CENTERSTAND
CENTERSTAND
CENTERSTAND
CENTERSTAND

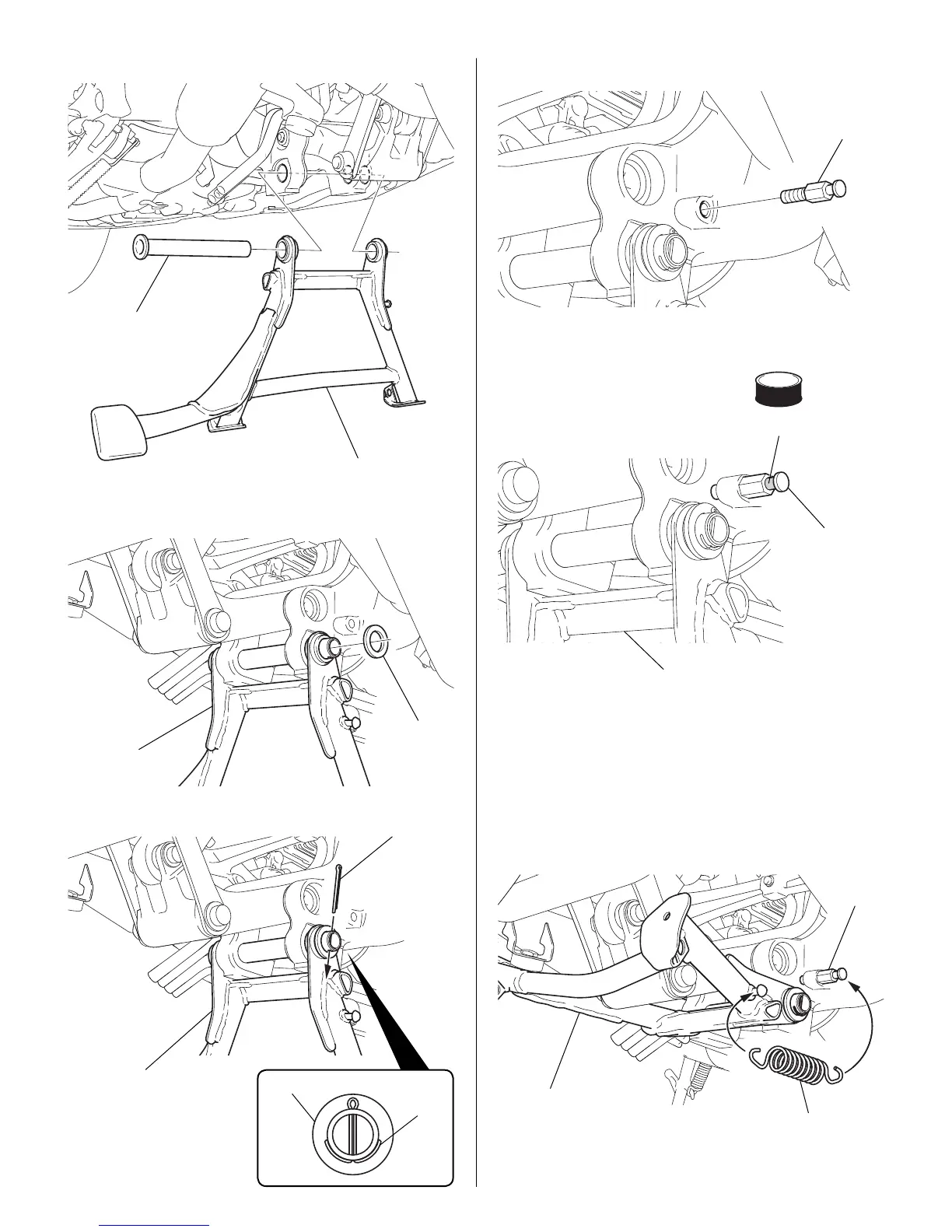

8. Install the centerstand as shown.
10. Install the split pin as shown.
9. Install the washer as shown.
<Right side>
11. Install the spring hook as shown.
12. Apply grease to the position shown.
GREASE
Apply to the marked surfaces.
WASHER
SPRING HOOK
SPRING HOOK
PIVOT PIPE
SPLIT PIN
WASHER
SPLIT PIN
Widen.
13. Install the spring as shown.
• The spring installation should be performed
by two people. While one person holds the
motorcycle, another person installs the
spring.
• First install to the upper side spring hook,
then install the spring on the centerstand.
SPRING
SPRING
HOOK
CENTERSTAND
14. Install the motorcycle’s parts in the reverse order of
removal.
