Honda 2000 S2000 - Maintenance

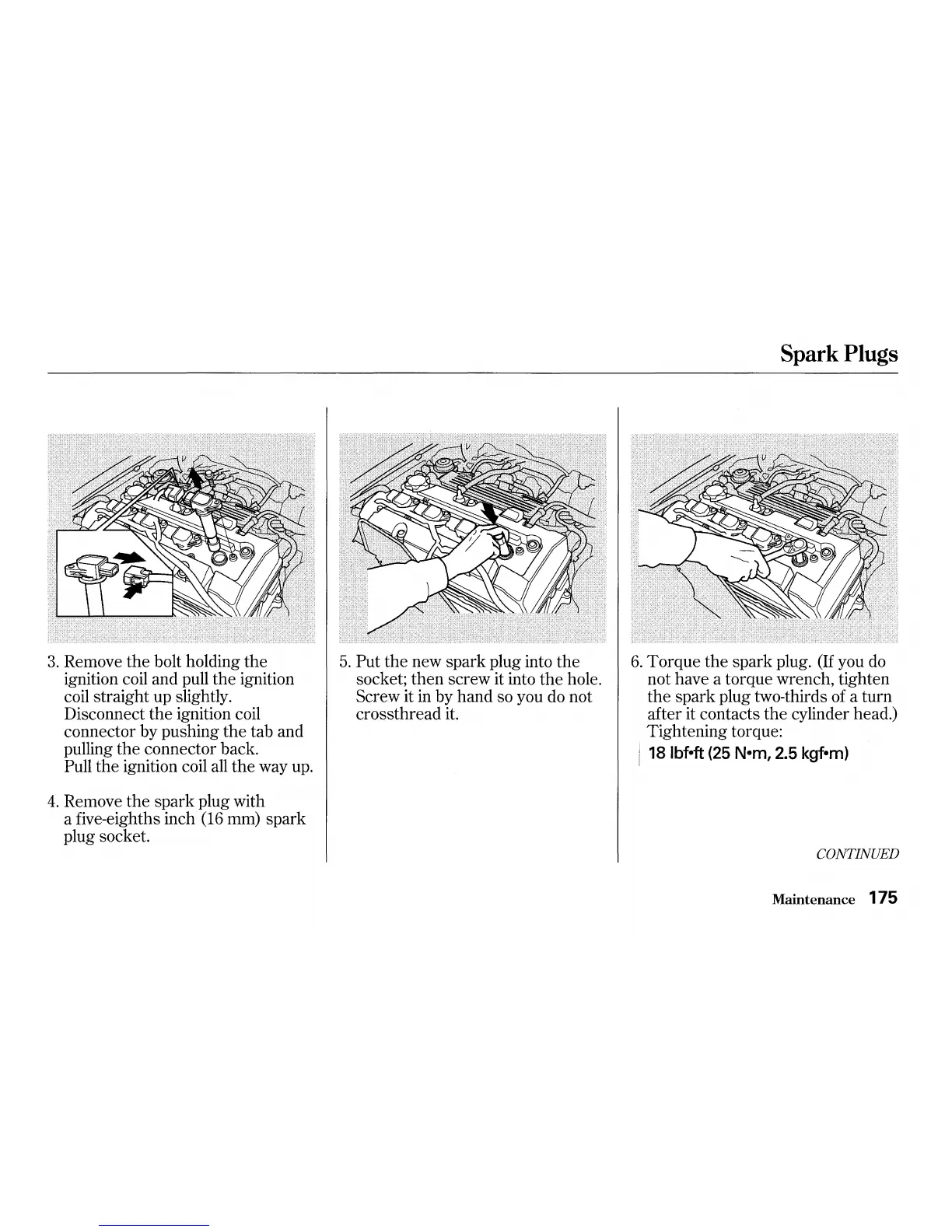

3. Remove the bolt holding the
ignition coil and pull the ignition
coil straight up slightly.
Disconnect
the ignition coil
connector by pushing the tab and
pulling the connector back.
Pull the ignition coil all the way up.
4. Remove the spark plug with
a five-eighths inch (16 mm) spark
plug socket.
5. Put the new spark plug into the
socket; then screw it into the hole.
Screw it
in by hand so you do not
crossthread it.
Spark Plugs
6. Torque the spark plug. (If you do
not have a torque wrench, tighten
the spark plug two-thirds of a turn
after it contacts the cylinder head.)
Tightening torque:
i 18 lbfeft (25 N•m, 2.5 kgf•m)
CONTINUED
Maintenance 175
