Other Adjustments u Adjusting the Rear Suspension
303
Continued
#
Compression Damping
You can adjust the compression damping by
the adjuster to suit the load or the road
surface.
Turn the adjuster using the Standard/Phillips
screwdriver provided on the underside of the
rear seat.
2 P. 242
Turn clockwise to increase compression
damping (hard), or turn counterclockwise to
decrease compression damping (soft).
The standard position is 12 clicks from the
maximum setting so that the punch mark on the
adjuster aligns with the reference punch mark.
Do not turn the adjuster beyond its limits.
The rear shock absorber damper unit contains high
pressure nitrogen gas. Do not attempt to disassemble,
service, or improperly dispose of the damper. See your
dealer.

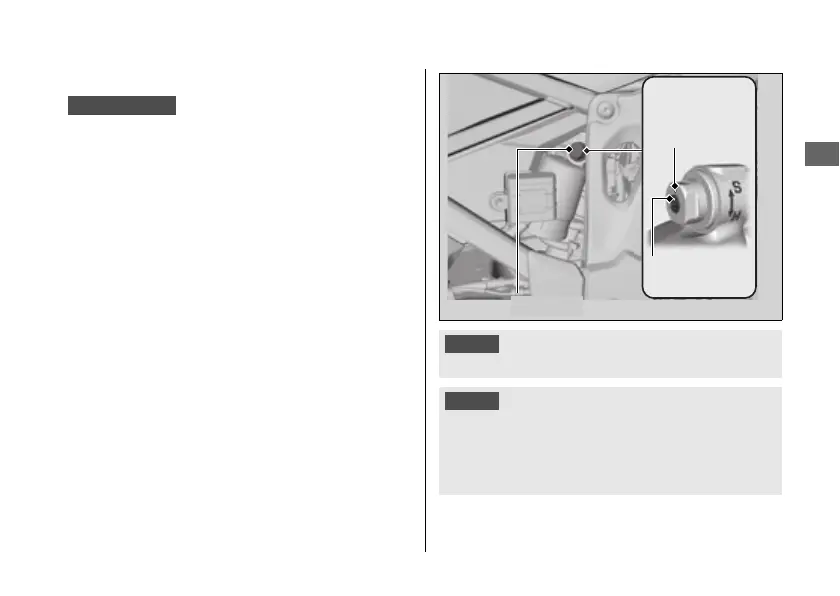

Adjuster
Reference
punch
mark
Punch mark
