Honda CBR500R 2020 User Manual

Throttle
Checking the Throttle
With the engine off, check that the throttle
rotates smoothly from fully closed to fully
open in all steering positions and throttle
freeplay is correct. If the throttle does not
move smoothly, close automatically, or if the
cable is damaged, have the vehicle inspected
by your dealer.

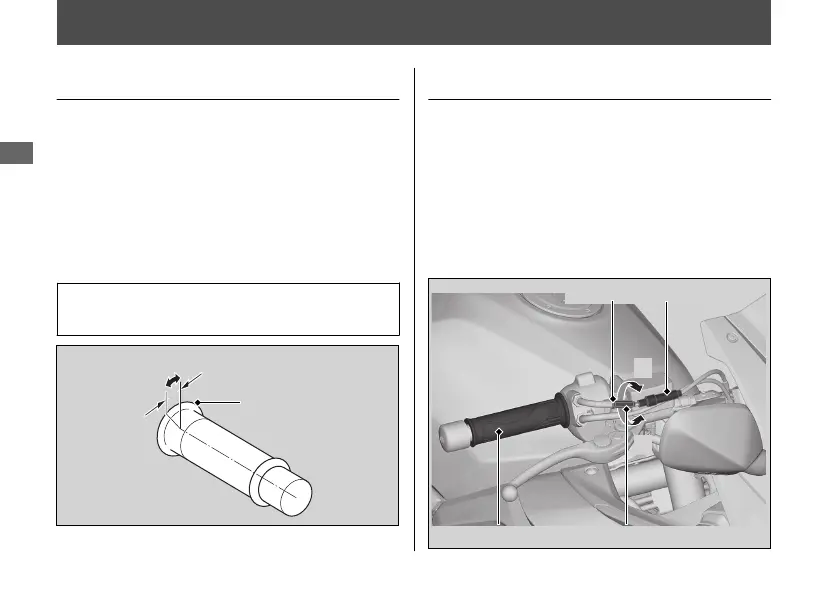

Freeplay at the throttle grip flange:
1/16 - 1/4 in (2 - 6 mm)
Adjusting the Throttle Freeplay
1. Slide the cable boot.
2. Loosen the lock nut.
3. Turn the adjuster until the freeplay is
1/16 - 1/4 in (2 - 6 mm).
4. Tighten the lock nut and return the cable
boot, then inspect the throttle action
again.
Maintenance
102
Freeplay
Flange
Lock nut Cable boot
Throttle grip Adjuster
–
+

Honda CBR500R 2020 Specifications

General

Bore x Stroke	67.0mm x 66.8mm
Compression Ratio	10.7:1
Ignition	Computer-controlled digital transistorized with electronic advance
Transmission	6-speed
Final Drive	O-ring-sealed chain
Front Tire	120/70-17
Rear Tire	160/60-17
Wheelbase	55.5 inches
Seat Height	30.9 inches
Fuel Capacity	4.5 gallons
Engine Type	471cc liquid-cooled parallel-twin
Fuel System	PGM-FI fuel injection
Front Suspension	41mm telescopic fork, 4.3 inches travel
Rear Suspension	Pro-Link single shock, 4.7 inches travel
Front Brake	320mm disc with two-piston caliper
Rear Brake	Single 240mm disc with single-piston caliper
Curb Weight	423 pounds
