Honda CRF450R 2011 Service Manual

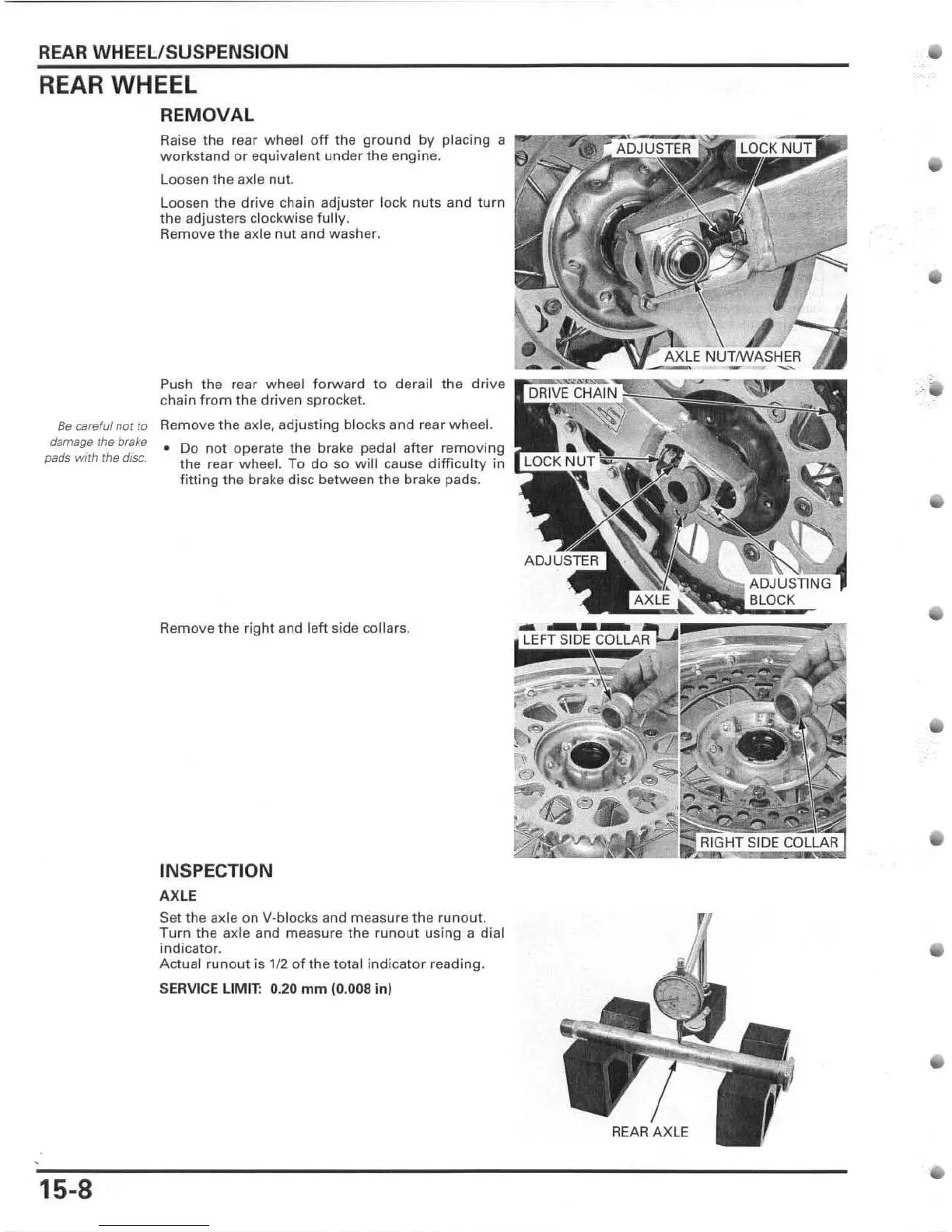

REAR WHEEL/SUSPENSION
REAR WHEEL
REMOVAL
Raise the r ear wheel off the ground by placing a "' '7~7
workstand or equivalent under the engine.
loosen the axle nut.
l oosen the drive chain adjuster lock nuts and turn
the adjusters clockwise fully.
Remove the axle nut and washer.
chain from the driven sprocket.
Push the rear wheel forward to derail the drive i~ ~~i~~~~~iii ~~~;~
Be careflJl not to Remove the axle, adjusting blocks and rear wheel.
damage the brake •
pads with the disc.
Do not ope rate the brake pedal after removing
the rear wheel. To do so wi ll cause difficulty in L!: ~ ~~-'!
15-8
fitting the brake disc between the brake pads.
Remove
the right and left si de collars.
INSPECTION
AX LE
Set the axle on V-blocks and measure the runout.
Turn the axle and measure the runout using a dial
i
ndicator .
Actua l runout is 1 /2 of the total indicator reading.
SERVICE LIMIT: 0.20 mm (o. ooa in)
•

Honda CRF450R 2011 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/48T
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	120/80-19
Trail	114mm (4.5 inches)
Induction	PGM-FI, 46mm throttle body
Front Suspension	48mm inverted with rebound and compression damping adjustability; 12.2 inches travel
Rear Suspension	Pro-Link single shock with rebound and compression damping adjustability; 12.4 inches of travel
Wheelbase	58.7 inches
Seat Height	37.6 inches
Fuel Capacity	1.5 gallons
