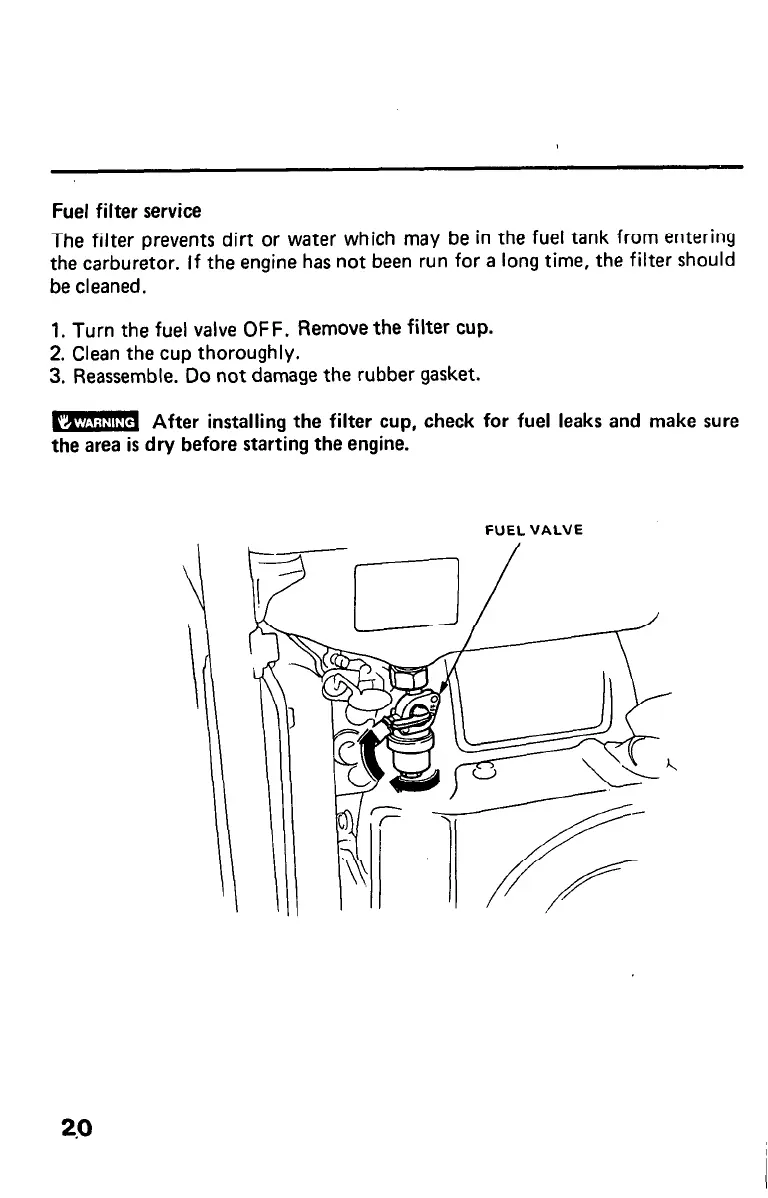

Fuel filter service
The filter prevents dirt or water which may be in the fuel tank from entering
the carburetor. If the engine has not been run for a long time, the filter should
be cleaned.
1. Turn the fuel valve OFF. Remove the filter cup.
2. Clean the cup thoroughly.
3. Reassemble. Do not damage the rubber gasket.
m After installing the filter cup, check for fuel leaks and make sure
the area is dry before starting the engine.
FUEL VALVE
