FUEL SYSTEM
5-5

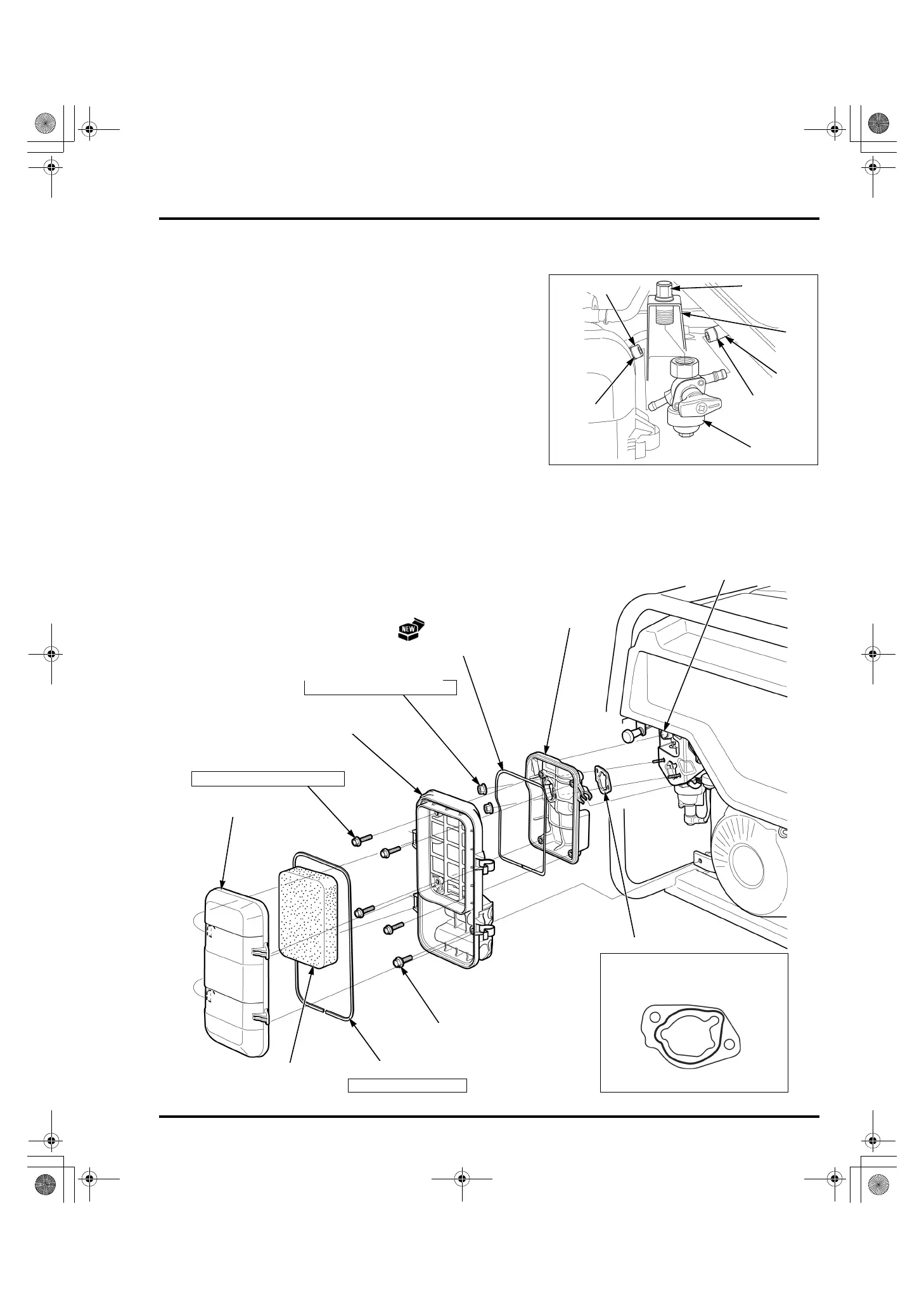

FUEL VALVE REMOVAL/
INSTALLATION
Disconnect the fuel tank tube (1) and fuel tube (2).
Remove the fuel valve (3) from the fuel valve stay (4).
Install and tighten the fuel valve nut while holding the
nut part (5) of fuel valve stay by a tool.
Connect the fuel tank tube and fuel tube.
• Be sure the tube clips (6) are installed correctly.
AIR CLEANER REMOVAL/
INSTALLATION
TORQUE: 13.5 N·m (1.4 kgf·m, 10 lbf·ft)
(1)
(2)
(3)
(4)
(6)
(6)
(5)
BREATHER TUBE
Viewed from air cleaner side
INSTALLATION:
Before installing, check for damage.
Note the installation direction.
CARBURETOR SPACER
8.5 N·m (0.87 kgf·m, 6.3 lbf·ft)
NUT (6 mm) (2)
AIR CLEANER BASE
AIR CLEANER CASE
AIR CLEANER COVER SEAL
AIR CLEANER ELEMENT
AIR CLEANER COVER
BOLT (6 x 32 mm)
BOLT (5 x 18 mm) (4)
AIR CLEANER CASE SEAL
5.4 N·m (0.55 kgf·m, 4.0 lbf·ft)
Replace if necessary.
