GOVERNOR SYSTEM
6-2
GOVERNOR SYSTEM

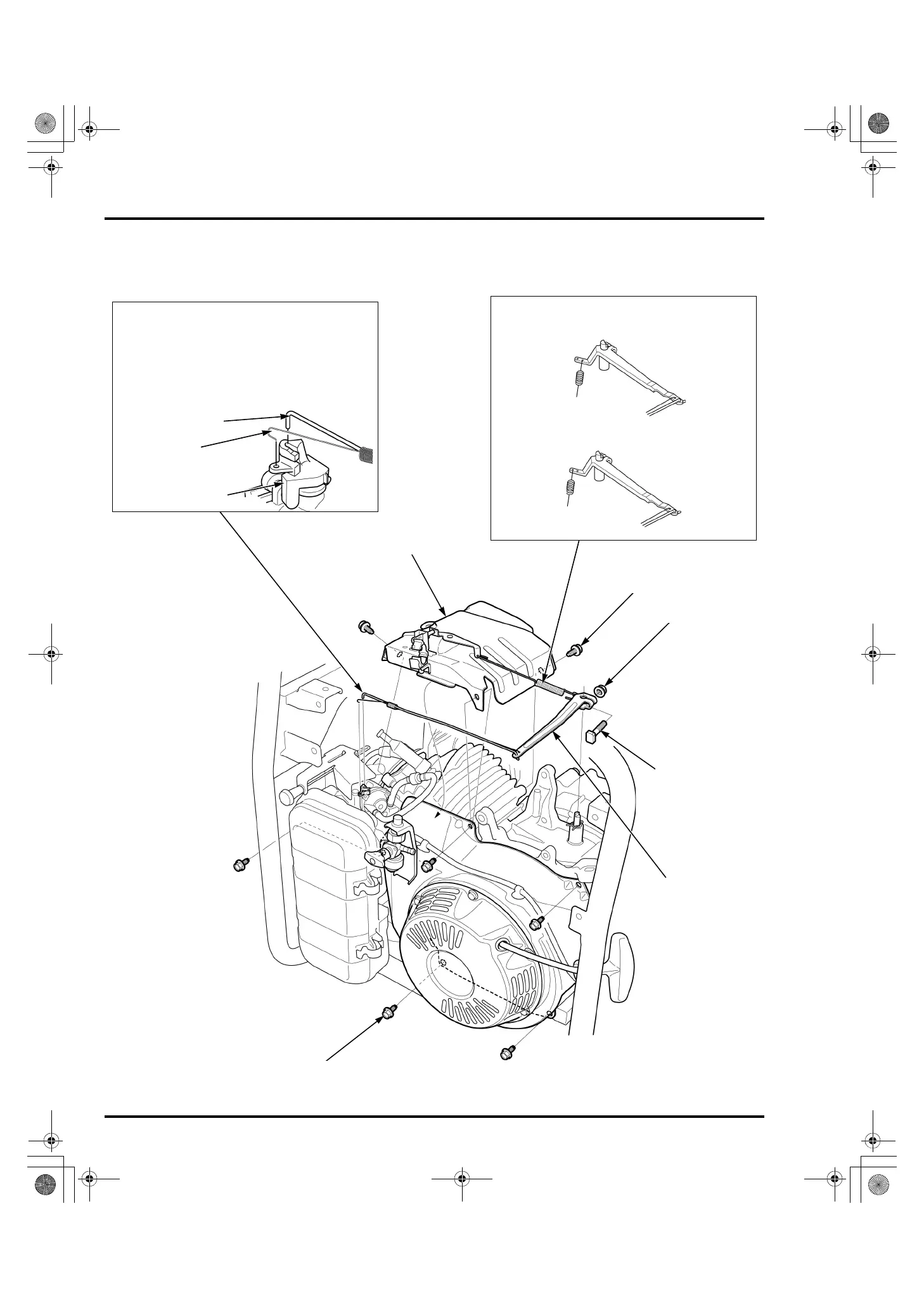

GOVERNOR ARM REMOVAL/INSTALLATION
Remove the fuel tank (page 5-4).
GOVERNOR ARM
BOLT (CT) (6 x 12 mm) (5)
CONTROL BASE
GOVERNOR
ARM BOLT
NUT (6 mm)
GOVERNOR SPRING
BOLT (CT) (6 x 12 mm) (2)
GOVERNOR ROD/THROTTLE RETURN SPRING
THROTTLE
RETURN
SPRING
GOVERNOR ROD
REMOVAL/INSTALLATION:
Turn the throttle arm to a point where the groove of
throttle arm lines up with the governor rod, and
then lift the governor rod out of the hole of throttle
arm and unhook the throttle return spring.
Installation is in the reverse order of removal.
THROTTLE ARM
MH, RH, KH, RHH, UH, RGH type:
SH, SKH, LDH, LTH type:
82Z30000.book 2 ページ ２０１０年６月２５日 金曜日 午後５時５０分

Honda EG5000CX Specifications

General

Displacement	389 cc
Starting System	Recoil
Rated Output	5000 watts
Max. Output	5.0 kVA
Engine	GX390
DC Output	12V, 8.3A
Engine Type	4-stroke OHV
Max Output	5000 VA
Run Time at Rated Load	8.1 hrs
