STARTING SYSTEM
9-6

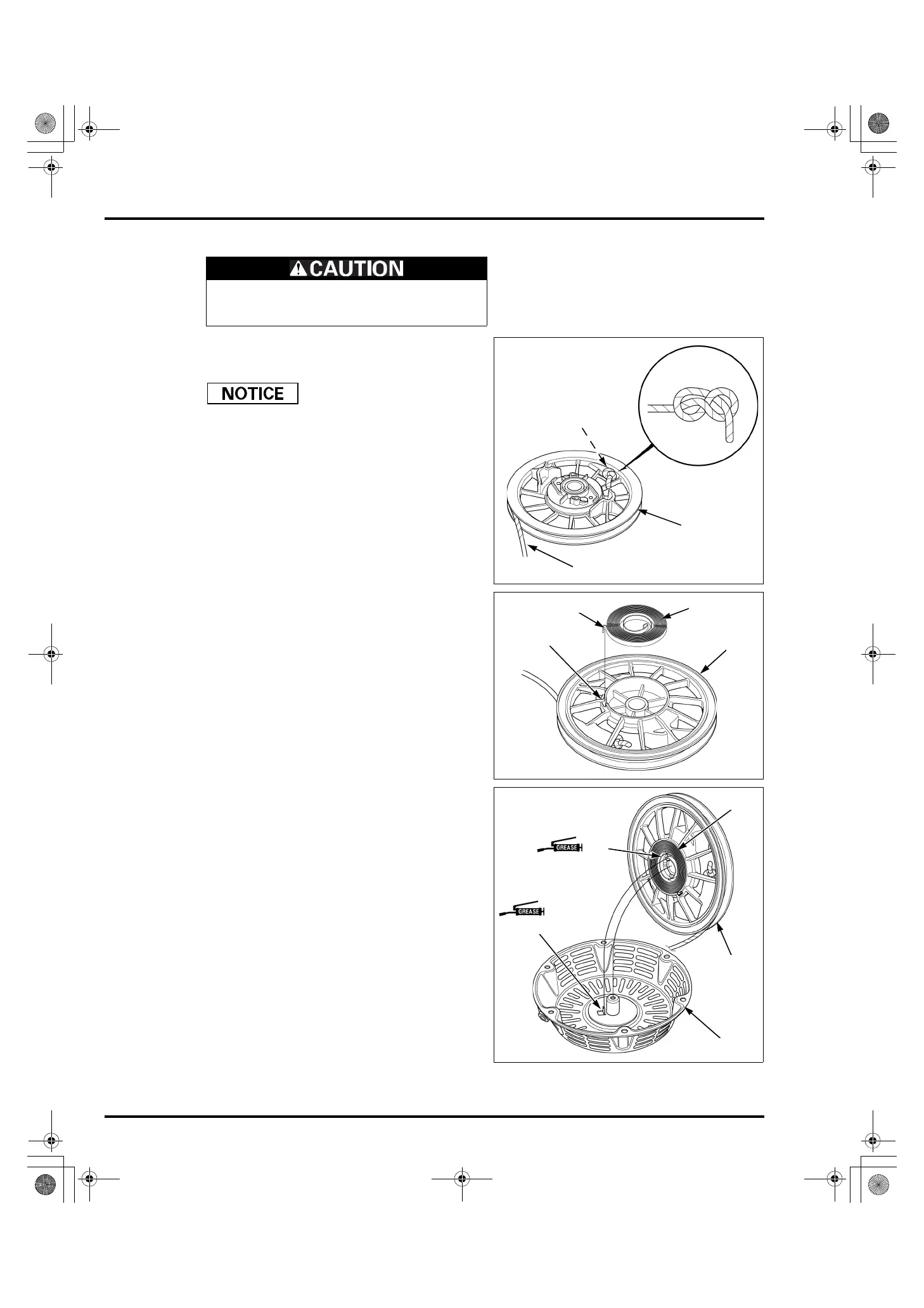

RECOIL STARTER ASSEMBLY
Pass the recoil starter rope (1) through the hole (2) of
the recoil starter pulley (3), and then tie the rope as
shown.
Before installing the recoil starter rope, check for fray or
wear.
Wind the recoil starter rope onto the recoil starter pulley
counterclockwise.
Hook the outer hook (1) of the starter return spring (2)
to the groove (3) of the recoil starter pulley (4), and then
install the starter return spring by winding it.
Apply grease to the projection (1) of the recoil starter
case (2) and inner hook (3) of the recoil starter spring
(4).
Set the recoil starter pulley (5) to the recoil starter case
by aligning the inner hook of the starter return spring
with the projection of the recoil starter case.
To prevent serious eye injury, always wear safety
goggles or other eye protection when using
compressed air.
(3)
(1)
(2)
(2)
(4)
(1)
(3)
(2)
(3)
(1)
(4)
(5)
