Honda EG5000CX - Page 146

STARTING SYSTEM
9-5

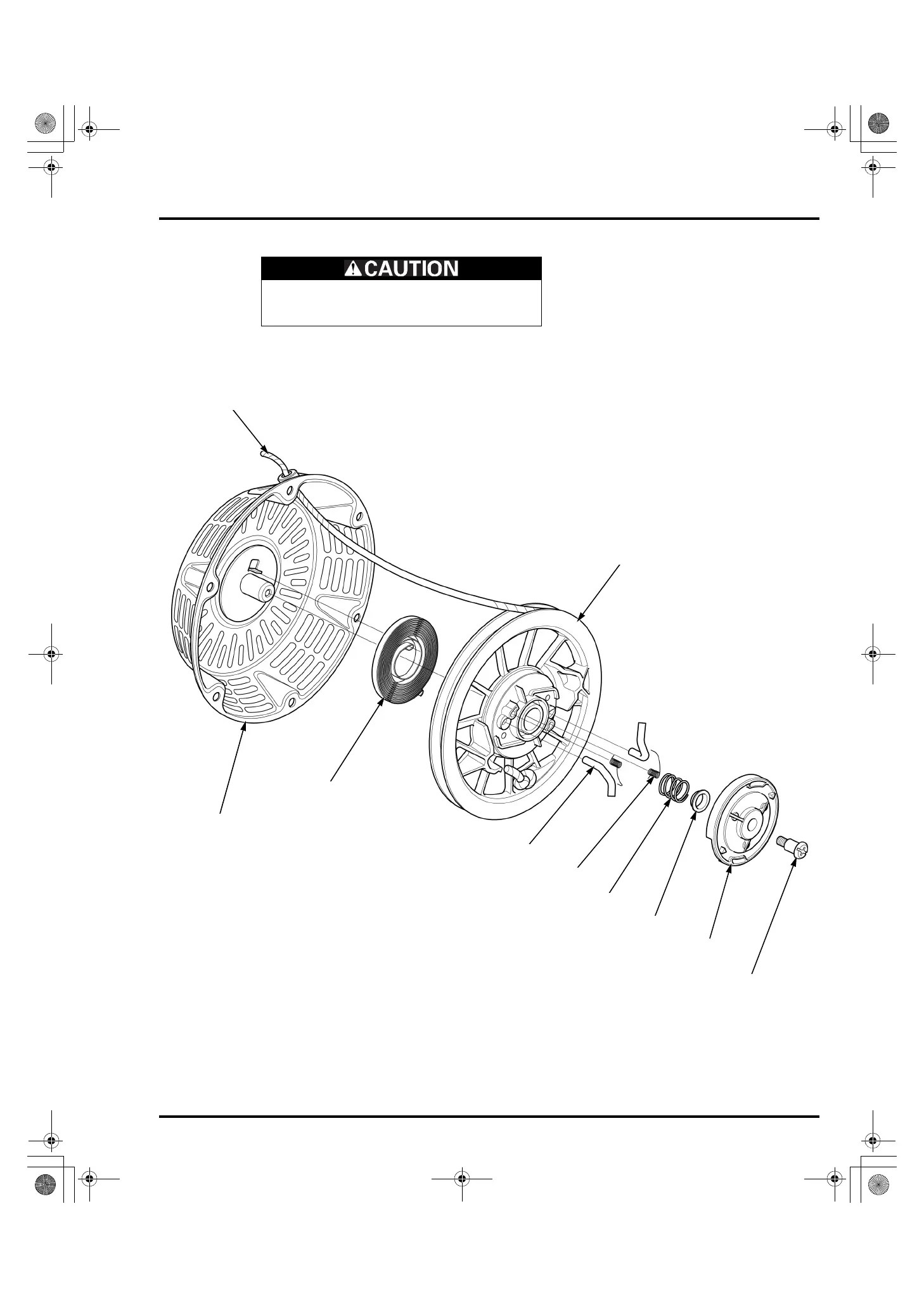

RECOIL STARTER DISASSEMBLY
Remove the recoil starter (page 9-4).
To prevent serious eye injury, always wear safety
goggles or other eye protection when using
compressed air.
CENTER SCREW
SPRING RETAINER
FRICTION SPRING
RATCHET (2)
RATCHET SPRING (2)
RECOIL STARTER
PULLEY
RECOIL STARTER ROPE
STARTER RETURN SPRING
RECOIL STARTER CASE
FRICTION PLATE
