STARTING SYSTEM
9-8

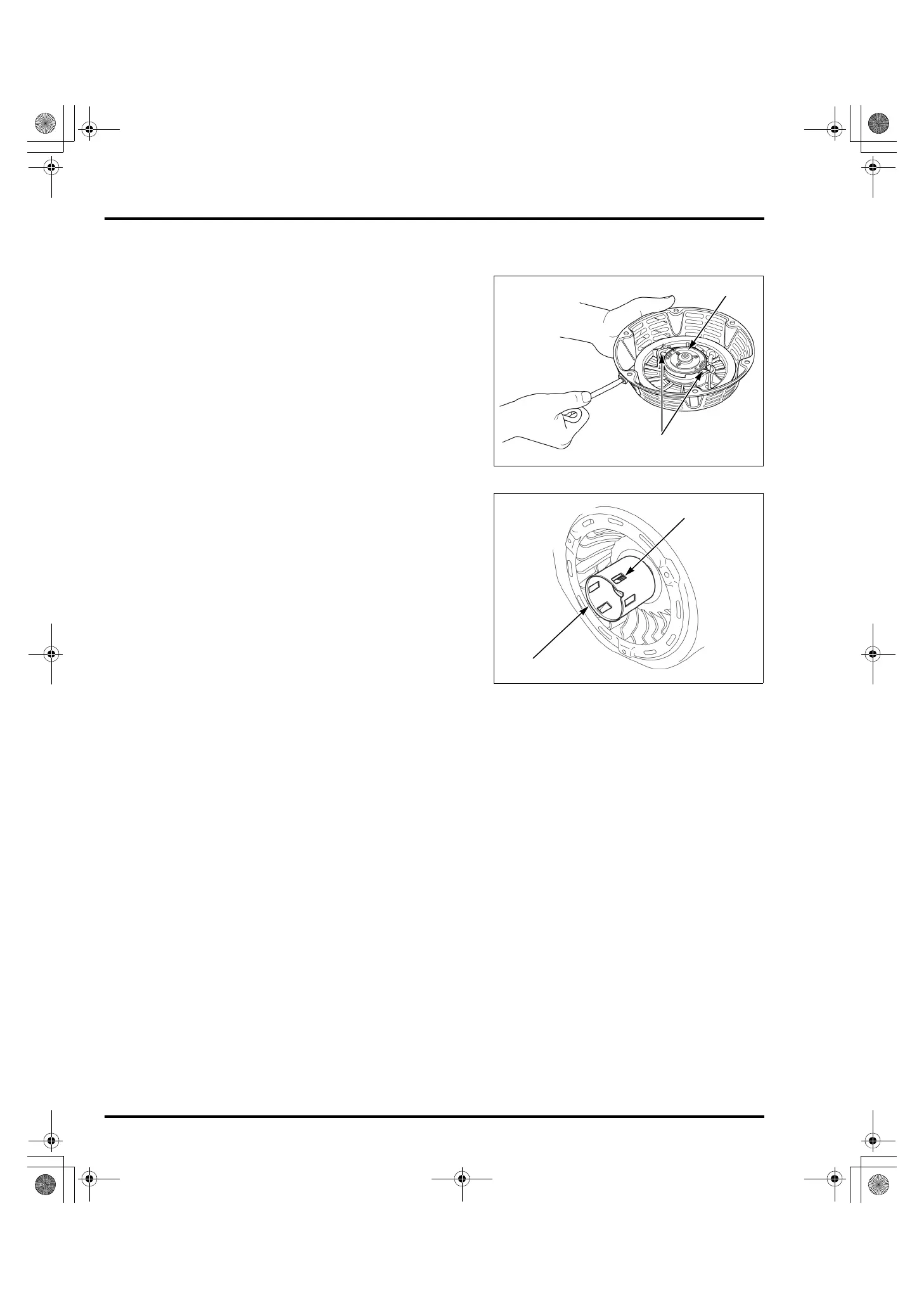

RECOIL STARTER INSPECTION
RECOIL STARTER OPERATION
Remove the recoil starter (page 9-4).
Pull the recoil starter rope several times to inspect that
the ratchets (1) are operated properly (the ratchet ends
come out from the spring retainer (2).
STARTER PULLEY
Remove the recoil starter (page 9-4).
Inspect the square holes (1) of the starter pulley (2) for
deformation.
(1)
(2)
(2)
(1)
