STARTING SYSTEM
9-10

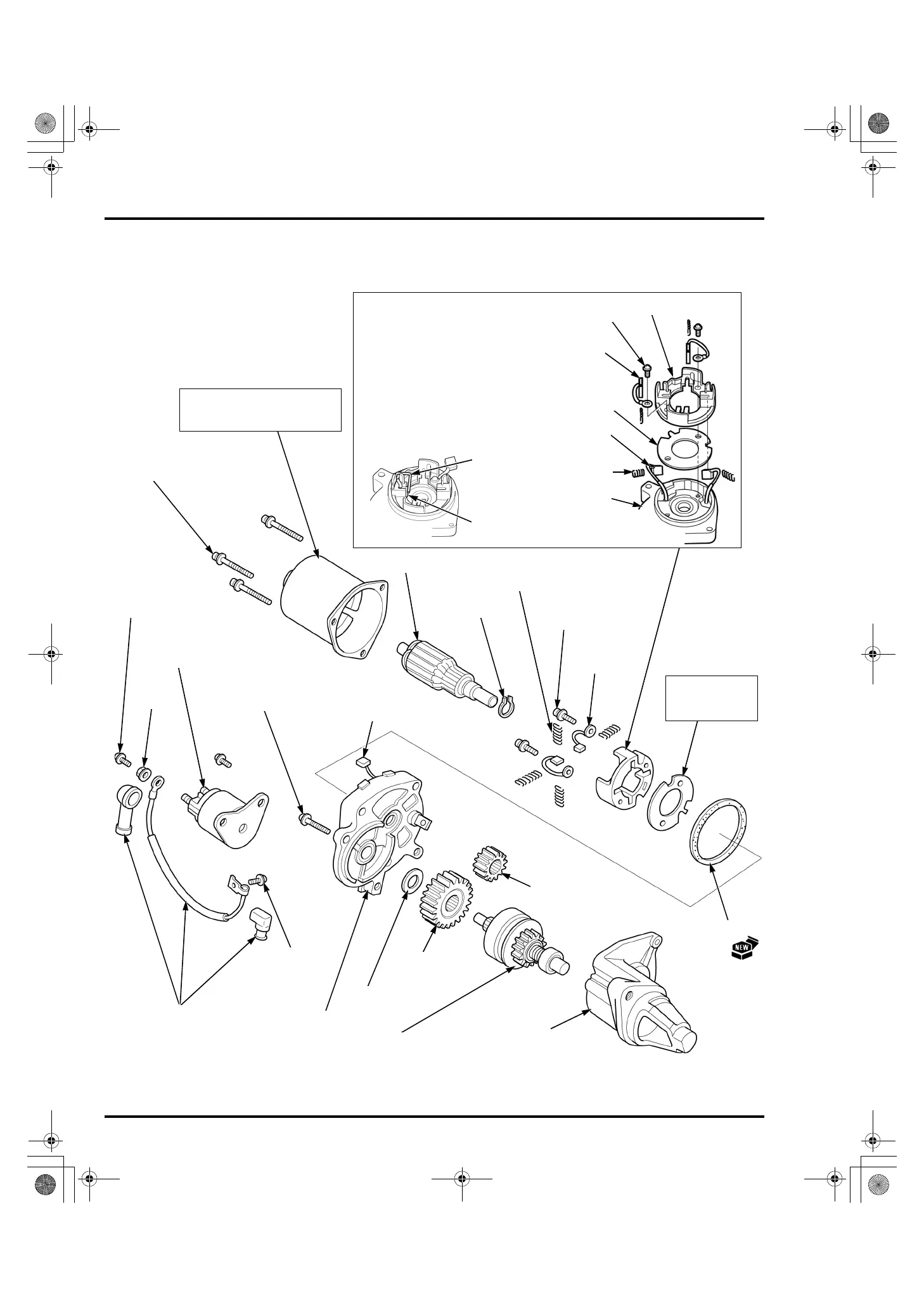

STARTER MOTOR DISASSEMBLY/ASSEMBLY (CXS TYPE ONLY)
Remove the starter motor (page 9-9).
STARTER
SOLENOID WIRE
CENTER BRACKET
DRIVE SIDE
HOUSING
BRUSH HOLDER
REDUCTION
GEAR
SCREW
(4 x 6 mm)
WASHER
BRUSH
SPRING (4)
SCREW
(5 x 32 mm) (3)
HOUSING
ARMATURE
ASSEMBLY:
Make sure there is no
obstruction on the magnets.
NEGATIVE
BRUSH (2)
INSULATOR
GASKET
POSITIVE
BRUSH (2)
STARTER
SOLENOID
OVERRUNNING CLUTCH/PINION GEAR
DRIVE PINION
GEAR
N U T
(6 mm)
SCREW
(4 x 14 mm) (2)
SCREW
(5 x 32 mm)
SNAP RING
INSPECTION:
Check for cracks
or damage.
ASSEMBLY:
Install the insulator, brush holder,
negative brush terminals, and
two screws to the center bracket
as shown.
Install the brush springs and
brushes, and push the brushes in
the holders with a suitable wire
so that they do not interfere with
the commutator.
SCREW (2)
INSULATOR
NEGATIVE
BRUSH (2)
BRUSH HOLDER
CENTER
BRACKET
BRUSH
SPRING (4)
POSITIVE
BRUSH (2)
SUITABLE
WIRE
BRUSH
SCREW
(5 x 14 mm) (2)
