OTHER ELECTRICAL
10-2
OTHER ELECTRICAL

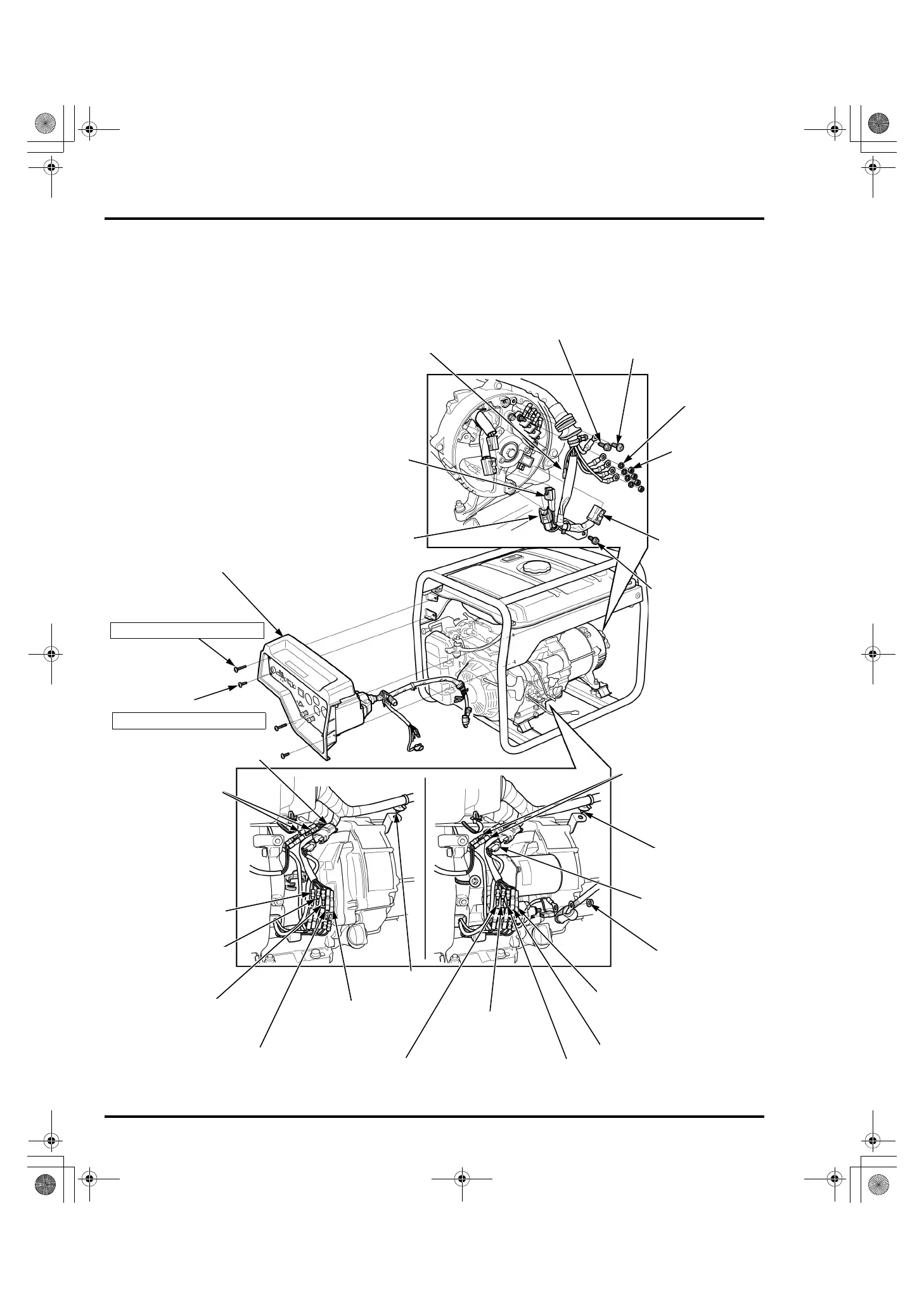

CONTROL PANEL REMOVAL/INSTALLATION
Remove the following:
– Harness clip base (page 8-5)
– Generator end cover (page 7-15)
EG6500CXS-LDH TYPE shown:
LDH/LTH type:
NUT (5 mm) (4)
Except LDH/LTH
type:
NUT (5 mm) (2)
LDH/LTH type:
SPRING
WASHER (4)
Except LDH/LTH
type:
SPRING
WASHER (2)
DC DIODE 4P
CONNECTOR
(Except RHH type)
TAPPING SCREW
(5 x 12 mm)
TAPPING SCREW
(5 x 14 mm)
SCREW
(5 x 12 mm)
EXCITER WINDING
3P CONNECTOR
DC WINDING 3P
CONNECTOR
(Except RHH type)
FIELD WINDING
WIRE CONNECTORS
CONTROL PANEL
SCREW
(6 x 30 mm) (2)
SCREW
(6 x 18 mm) (2)
IGNITION COIL
(Black) WIRE
CONNECTOR
OIL ALERT UNIT
(Yellow) WIRE
CONNECTOR
OIL LEVEL SWITCH
(Yellow) WIRE
CONNECTOR
OIL ALERT UNIT
(Black) WIRE
CONNECTOR
FUEL CUT/CHARGE
COIL (White) WIRE
CONNECTOR
POWER COIL 2P
CONNECTOR
FUEL CUT
SOLENOID WIRE
CONNECTORS
HARNESS BAND
BOSS
OIL ALERT UNIT
(Black) WIRE
CONNECTOR
OIL LEVEL SWITCH
(Yellow) WIRE
CONNECTOR
OIL ALERT UNIT
(Yellow) WIRE
CONNECTOR
HARNESS BAND
BOSS
CXS type:
CX type:
NUT (6 mm)
POWER COIL 2P
CONNECTOR
FUEL CUT
SOLENOID WIRE
CONNECTORS
4.4 N·m (0.46 kgf·m, 3.2 lbf·ft)
4.4 N·m (0.46 kgf·m, 3.2 lbf·ft)
FUEL CUT/CHARGE
COIL (White) WIRE
CONNECTOR
IGNITION COIL
(Black) WIRE
CONNECTOR
