OTHER ELECTRICAL
10-3

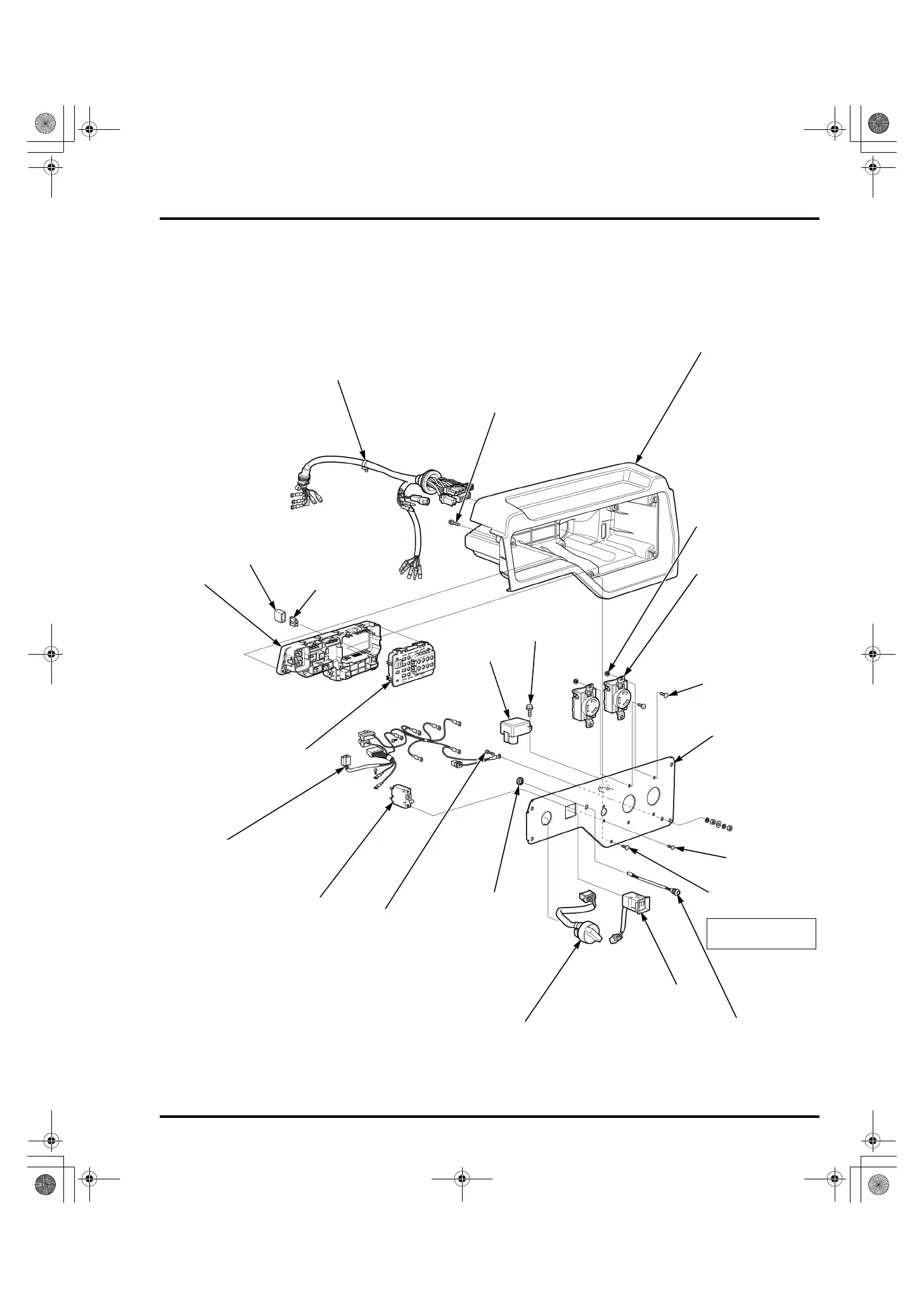

CONTROL PANEL DISASSEMBLY/ASSEMBLY
CX-RHH type
CONTROL PANEL
CASE
VOLT METER
ENGINE STOP
SWITCH
CONTROL PANEL
RECEPTACLE
(2)
BOLT
(6 x 12 mm)
DIODE
JUNCTION
BOX
BOLT
(6 x 20 mm) (3)
FUSE
COVER
FUSE
GROUND
TERMINAL
BOLT
GENERATOR WIRE
HARNESS
CONTROL PANEL
WIRE HARNESS
SCREW
(5 x 12 mm)
SCREW
(4 x 10 mm) (4)
NUT
(4 mm) (4)
SCREW
(3 x 5 mm) (2)
WARNING
INDICATOR
WARNING
INDICATOR
NUT
3.4 N·m (0.35 kgf·m,
2.5 lbf·ft)
D-AVR COVER/
D-AVR UNIT
CIRCUIT
BREAKER
