OTHER ELECTRICAL
10-4

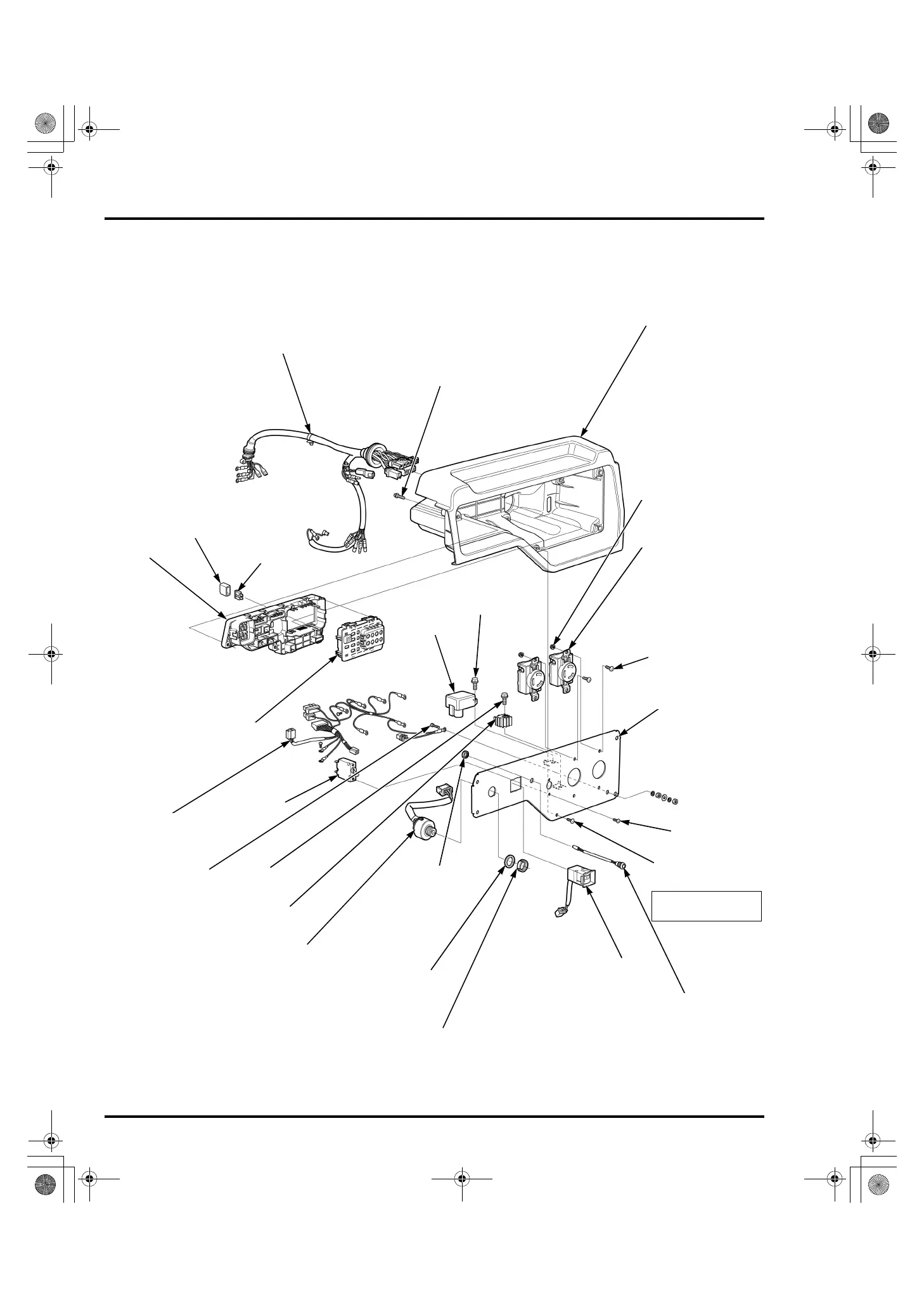

CXS-RHH type
CONTROL PANEL
CASE
COMBINATION
SWITCH
CIRCUIT
BREAKER
VOLT METER
COMBINATION
SWITCH
PACKING
COMBINATION
SWITCH NUT
CONTROL PANEL
RECEPTACLE
(2)
BOLT
(6 x 12 mm)
DIODE
JUNCTION
BOX
FUSE
COVER
FUSE
GENERATOR WIRE
HARNESS
CONTROL PANEL
WIRE HARNESS
SCREW
(5 x 12 mm)
SCREW
(4 x 10 mm) (4)
NUT
(4 mm) (4)
SCREW
(3 x 5 mm) (2)
WARNING
INDICATOR
BOLT
(6 x 30 mm)
REGULATOR/
RECTIFIER
WARNING
INDICATOR
NUT
3.4 N·m (0.35 kgf·m,
2.5 lbf·ft)
GROUND
TERMINAL
BOLT
BOLT
(6 x 20 mm) (3)
D-AVR COVER/
D-AVR UNIT
