CYLINDER BLOCK
14-17

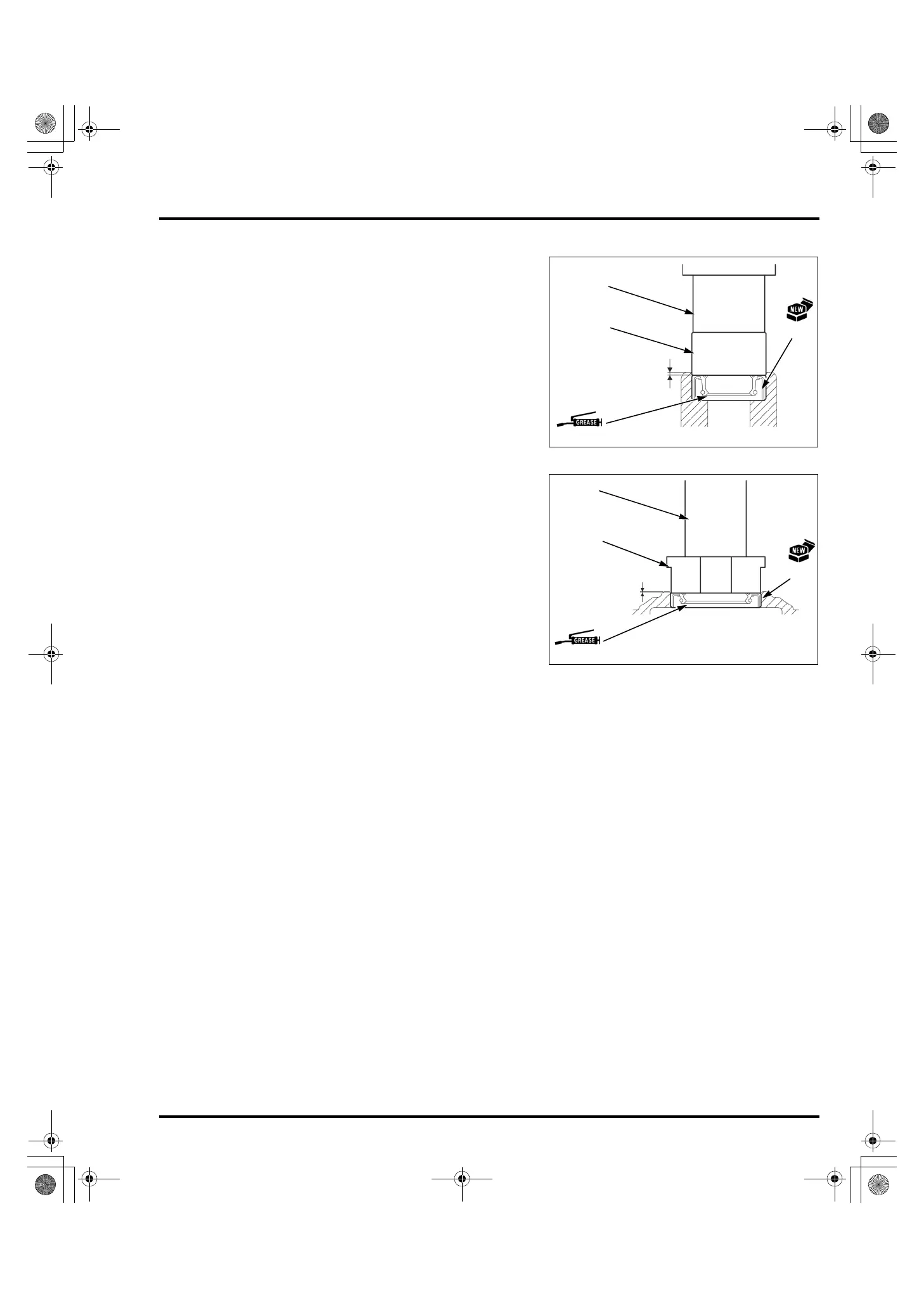

GOVERNOR ARM SHAFT OIL SEAL (except
EG3600CX/EG4000CX)
Remove the oil seal from the cylinder barrel.
Apply grease to the lip of a new oil seal (1).
Drive the oil seal in the position as shown using the
special tools.
CRANKSHAFT OIL SEAL
Remove the oil seal from the cylinder barrel.
Apply grease to the lip of a new oil seal (1).
Drive the oil seal in the position as shown using the
special tools.
TOOLS:
Pilot, 14 mm (2) 07746-0041200
Driver (3) 07749-0010000
0 – 0.5 mm
(0 – 0.02 in)
(3)
(1)
OIL SEAL RIP
(2)
EG3600CX/EG4000CX:
TOOLS:
Attachment, 45 × 50 mm (2) 07946-6920100
Driver (3) 07749-0010000
Except EG3600CX/EG4000CX:
TOOLS:
Attachment, 52 × 55 mm (2) 07746-0010400
Driver (3) 07749-0010000
(2)
2 mm (0.08 in)
(3)
(1)
OIL SEAL RIP
