SPECIFICATIONS
1-17
EG5000CX KH/MH/RH type

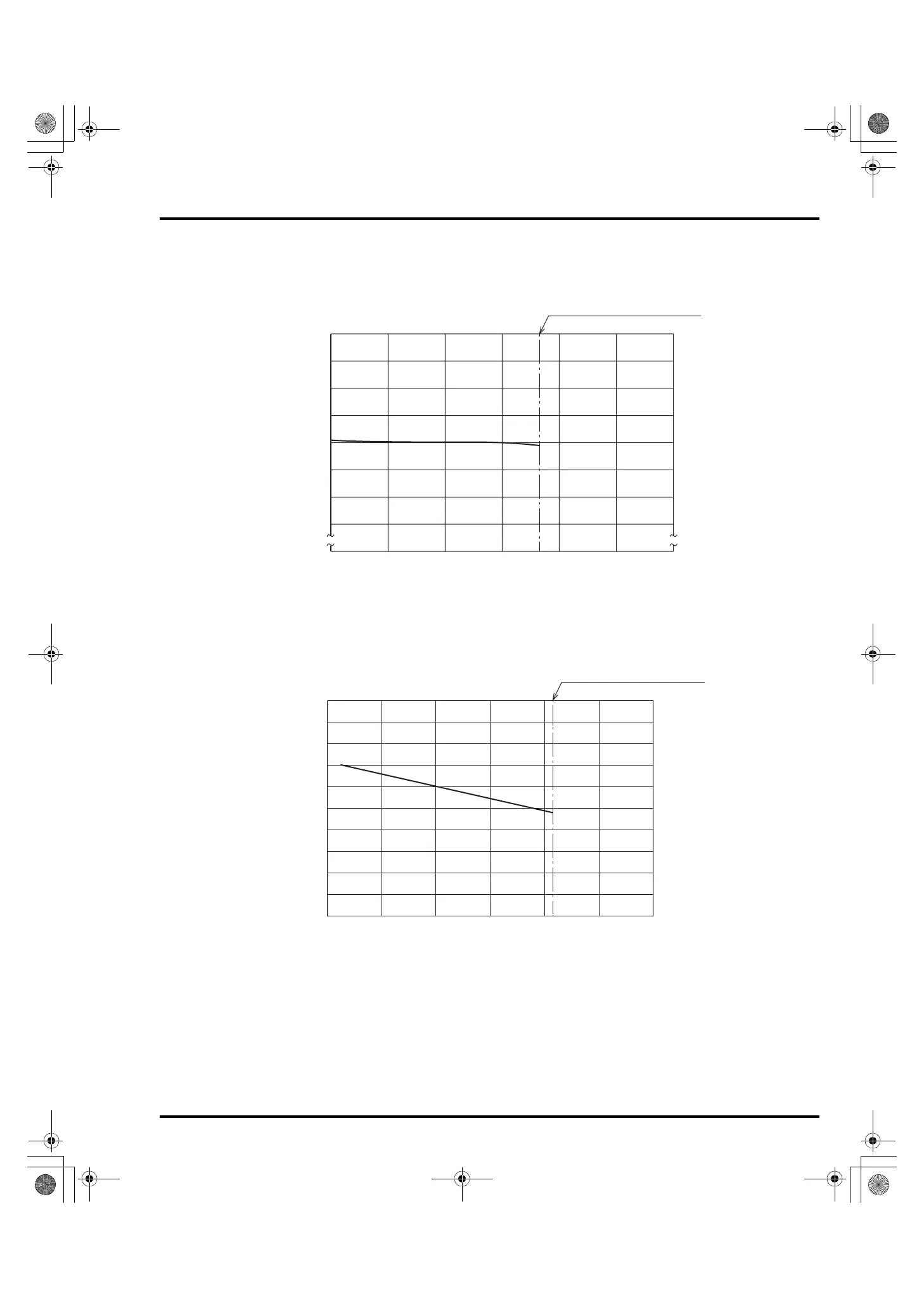

AC EXTERNAL CHARACTERISTIC CURVES
DC EXTERNAL CHARACTERISTIC CURVE
*This DC output characteristic was measured with the condition that condensers (200,000 μF) were parallel-connected.
250
230
240
220
200
210
0 5 10 15 20 25 30
190
LOAD CURRENT (A)
AC OUTPUT VOLTAGE (V)
RATED CURRENT (18.2 A)
20
15
10
5
0
246810
LOAD CURRENT (A)
RATED CURRENT (8.3 A)
DC OUTPUT VOLTAGE (V)
