SPECIFICATIONS
1-18
EG5000CX LDH type

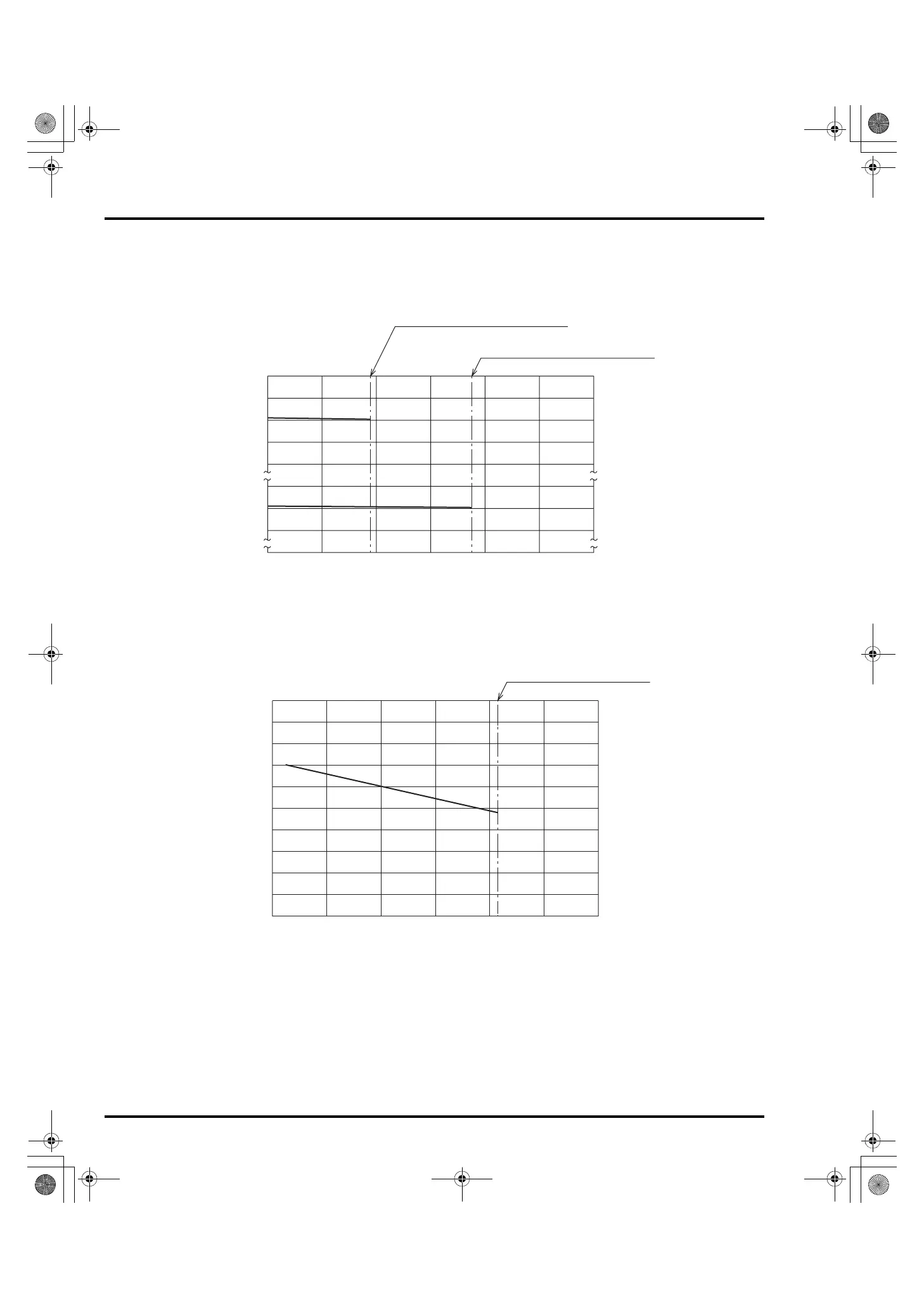

AC EXTERNAL CHARACTERISTIC CURVES
DC EXTERNAL CHARACTERISTIC CURVE
*This DC output characteristic was measured with the condition that condensers (200,000 μF) were parallel-connected.
250
230
240
220
120
130
0 102030405060
110
LOAD CURRENT (A)
AC OUTPUT VOLTAGE (V)
RATED CURRENT (37.5 A)
(AC OUTPUT VOLTAGE 120 V)
RATED CURRENT (18.8 A)
(AC OUTPUT VOLTAGE 240 V)
20
15
10
5
0
246810
LOAD CURRENT (A)
RATED CURRENT (8.3 A)
DC OUTPUT VOLTAGE (V)
