SERVICE INFORMATION
2-9
HOW TO READ CONNECTOR DRAWINGS

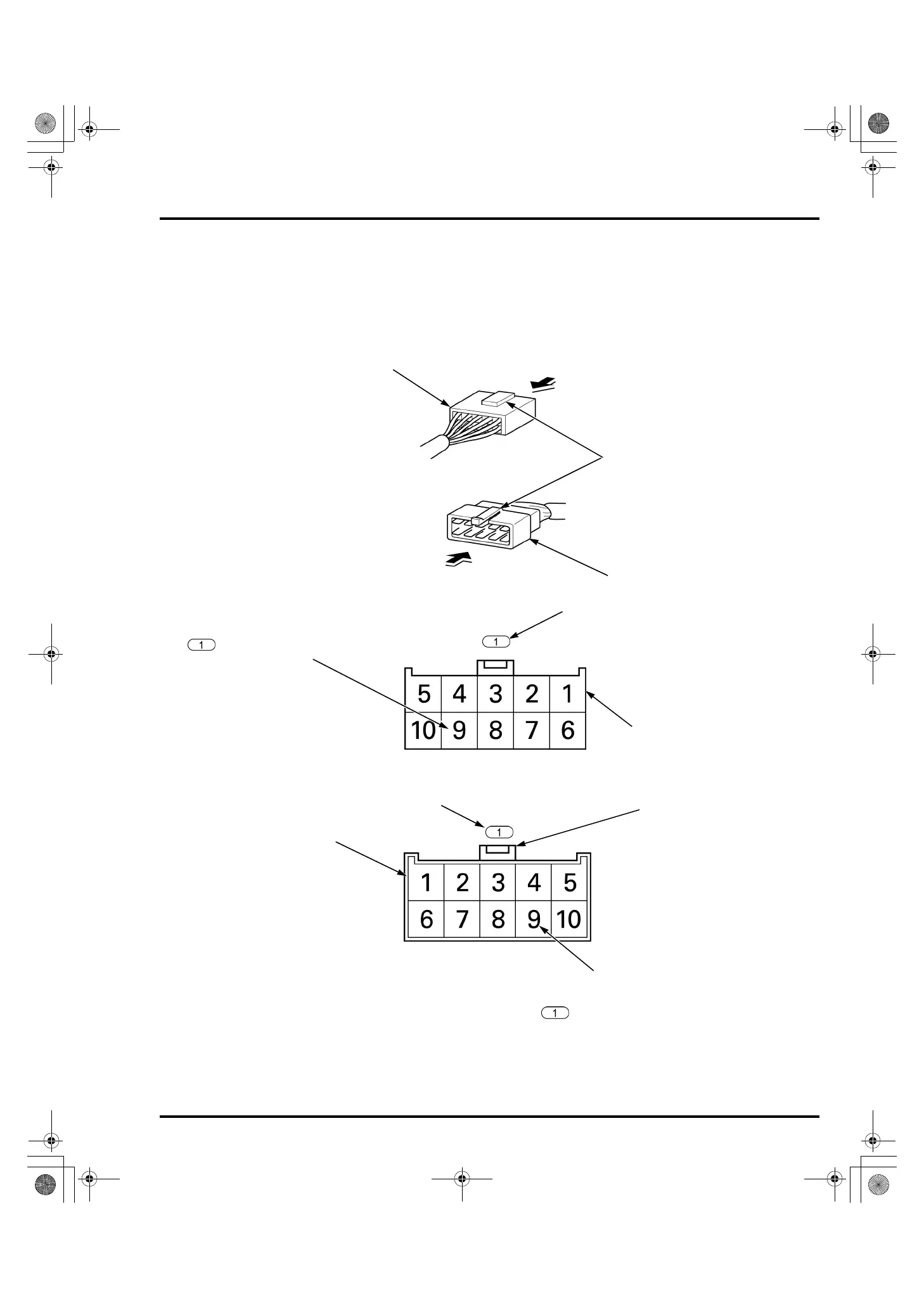

Connector drawings show the terminal arrangement, terminal No., number of pins and the shape of terminal (male or female).
Both the male and female connectors are shown for the common connectors, while only the main wire harness side connectors are
shown for the dedicated connectors.
The double frame connectors represent the male connectors and the single frame connectors represent the female connectors.
Both the male and female connectors are shown by viewing them from the terminal side.
FEMALE CONNECTOR
MALE CONNECTOR
LOCK
VIEWING DIRECTION
VIEWING DIRECTION
FEMALE CONNECTOR DRAWING
(SINGLE FRAME)
Female connector viewed from the
terminal side.
CONNECTOR No.
MALE CONNECTOR DRAWING
(DOUBLE FRAME)
Male connector viewed from the
terminal side.
TERMINAL No.
The system drawing shows the No.9 terminal of the
connector.
LOCK
CONNECTOR No.
TERMINAL ARRANGEMENT
The connector drawing shows the terminal arrangement of
the connector with the lock of the connector toward up.
