SERVICE INFORMATION
2-12
Terminal
number
Wire color
Bl
W

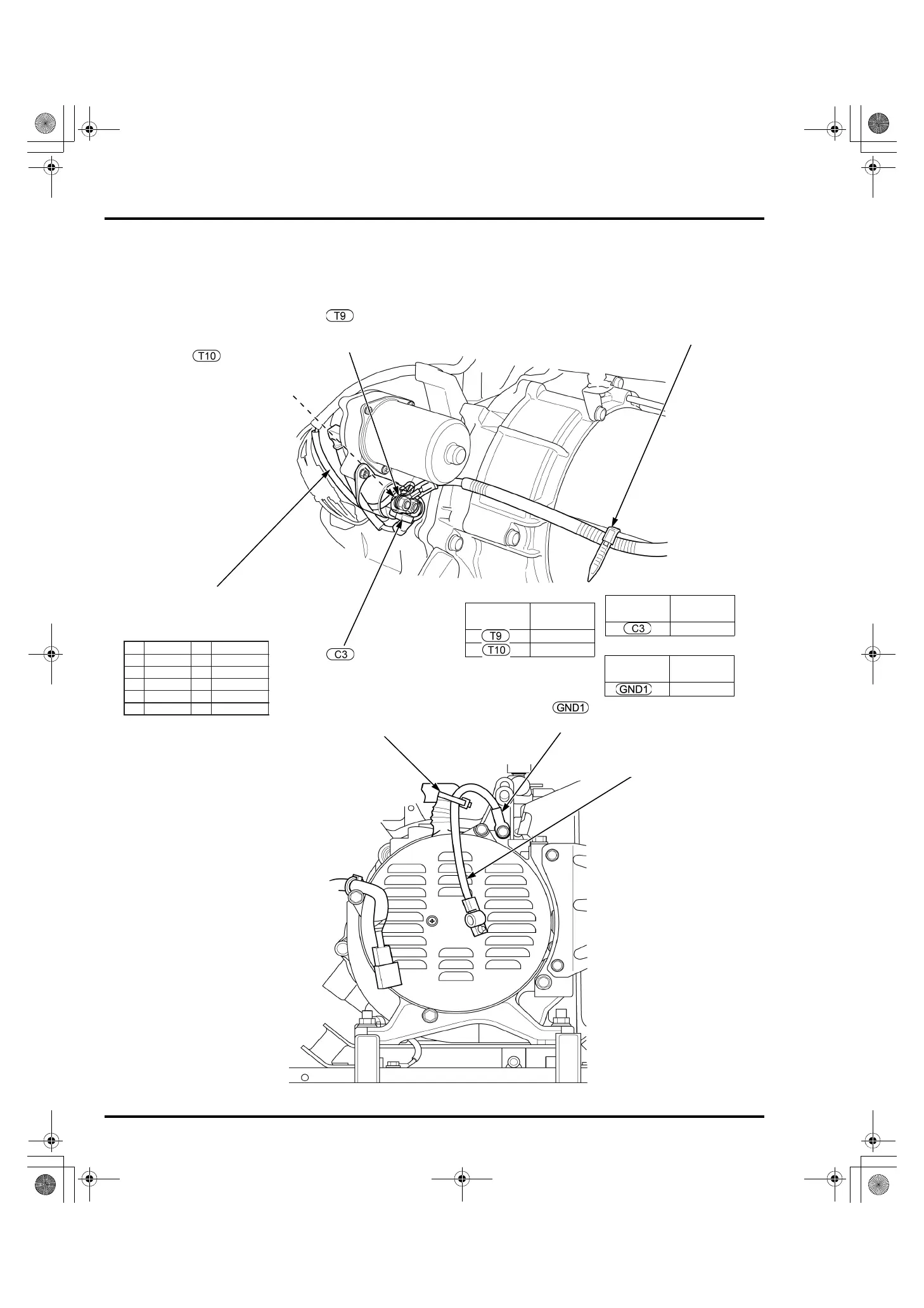

Do not secure the starter
cable at harness band
(+) BATTERY CABLE
TERMINAL
Terminal
number
Wire color
Bl
(–) BATTERY CABLE
HARNESS BAND
HARNESS BAND
STARTER SOLENOID
CABLE TERMINAL
STARTER SOLENOID
CONNECTOR
GROUND TERMINAL
Terminal
number
Wire color
Bl/W
Bl Black Br Brown
Y Yellow O Orange
Bu Blue Lb Light blue
G Green Lg Light green
R Red P Pink
W White Gr Gray
